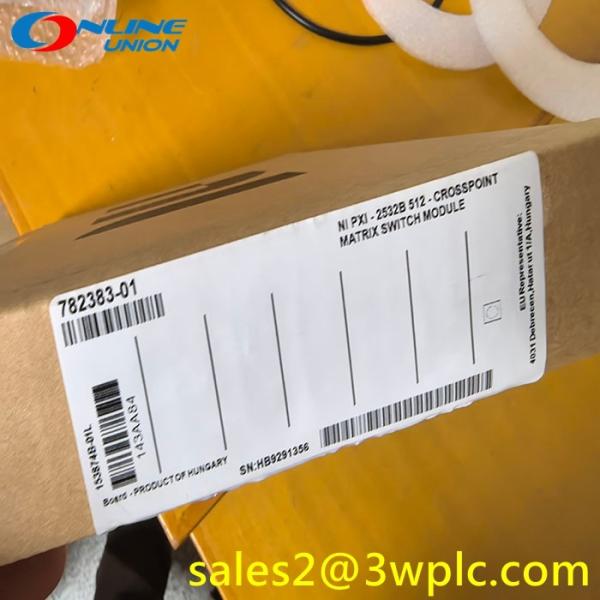

PXI-2532B 782383-01 512 National Instruments Crosspoint PXI Matrix Switch Module
PXI-2532B 782383-01 512 National Instruments Crosspoint PXI Matrix Switch Module
PXI-2532B 782383-01 512 National Instruments Crosspoint PXI Matrix Switch Module
PXI-2532B 782383-01 512 National Instruments Crosspoint PXI Matrix Switch Module
Specifications
Brand Name :
National Instruments
Model Number :
PXI-2532B
Place of Origin :
USA
MOQ :
1
Price :
1-99$
Payment Terms :
T/T
Supply Ability :
999
Delivery Time :
in stock / 1-3 work days
Packaging Details :
Brand New Original
Channels :
512 (single-pole)
Switch Type :
Electromechanical relay (EMR)
Max. Switching Voltage :
±150V DC, 100V AC RMS
Max. Switching Current :
1A (per channel)
Bandwidth :
300 MHz (typical)
On-Resistance :
< 1Ω (initial), < 1.5Ω (life)
Description

Applications

Semiconductor Testing: Wafer probing, device characterization, and ATE (Automated Test Equipment).

Automotive Electronics: ECU testing, HIL (Hardware-in-the-Loop) simulation, and EV battery management.

Aerospace/Defense: Avionics systems, radar testing, and satellite communication.

Consumer Electronics: Smartphone RF testing, audio validation, and IoT device certification.

Research: High-throughput experimentation and academic test systems.


Installation & Configuration

Mounting: Install in any PXI or PXI Express chassis with a 96-pin D-SUB slot.

Wiring: Use 96-pin D-SUB cables with mating connectors for secure connections.

Software Setup: Configure switch topologies and routes via NI MAX (Measurement & Automation Explorer).

Driver Support: Compatible with NI-SWITCH drivers for Windows and Linux.
