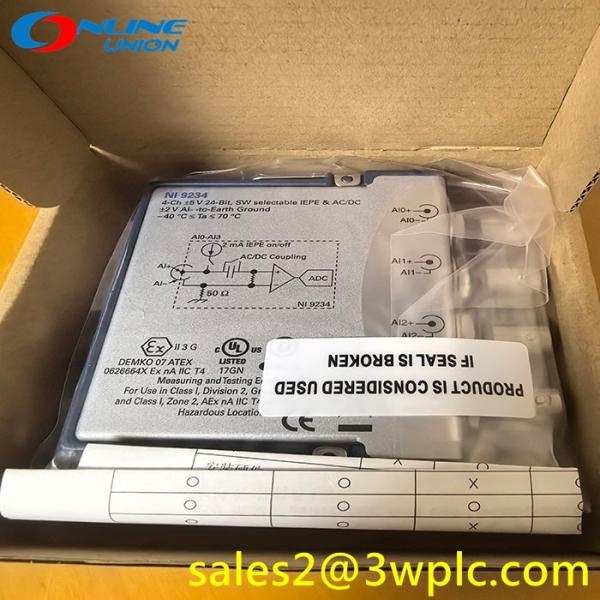

NI-9234 Four National Instruments Channel Dynamic Signal Acquisition Module
NI-9234 Four National Instruments Channel Dynamic Signal Acquisition Module
Specifications
Brand Name :
National Instruments
Model Number :
NI-9234
Place of Origin :
USA
MOQ :
1
Price :
1-99$
Payment Terms :
T/T
Supply Ability :
999
Delivery Time :
in stock / 1-3 work days
Packaging Details :
Brand New Original
Channels :
4 (differential analog inputs)
Input Range :
±10V (software-selectable)
Resolution :
24-bit
IEPE Current Source :
2 mA or 4 mA (per channel)
Input Coupling :
AC/DC (software-selectable)
Connector Type :
BNC (for secure sensor connections)
Description

Overview

The National Instruments NI 9234 is a high-precision 4-channel C Series module designed for sound and vibration measurements in industrial and research applications. Part of NI’s CompactDAQ or CompactRIO systems, it offers simultaneous IEPE (Integrated Electronics Piezoelectric) signal conditioning for accelerometers and microphones, making it ideal for predictive maintenance, machine health monitoring, and acoustic testing.


Key Features

4 Analog Input Channels: Simultaneously sample IEPE sensors at up to 51.2 kS/s/ch.

IEPE Signal Conditioning: Built-in current source (2 mA or 4 mA) for accelerometers and microphones.

Wide Dynamic Range: 24-bit ADC resolution with ±10V input range.

Anti-Aliasing Filters: Programmable cutoff frequencies (5 kHz, 10 kHz, 20 kHz) to prevent signal distortion.

Compact Design: C Series form factor (34 mm x 100 mm x 12 mm) for portable or embedded systems.

Software Integration: Seamless compatibility with NI LabVIEW, MATLAB, and Python for data analysis.


NI-9234 Four National Instruments Channel Dynamic Signal Acquisition Module
