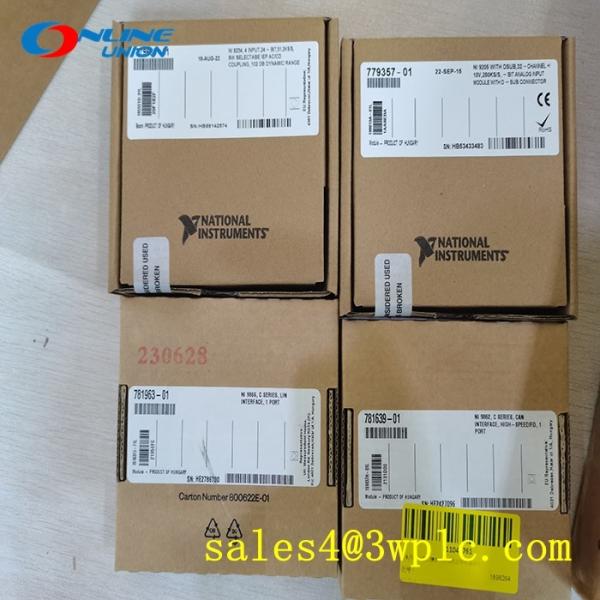

National Instruments 781963-01 Single-port LIN Interface Module

The NI-9866 is a single-port LIN interface module optimized for real-time communication and high-speed manipulation of LIN frames and signals. It is engineered to excel in applications like hardware-in-the-loop (HIL) simulation, rapid control prototyping, bus monitoring, and automation control. Key features include:

• LIN Protocol Support: Compliant with LIN 2.0/2.1 standards, enabling both master and slave mode operations.
• Real-Time Performance: Facilitates simultaneous LIN communication and data acquisition when paired with CompactDAQ/CompactRIO platforms.
• Flexibility: Supports customizable baud rates (up to 20 kbit/s) and configurable I/O for diverse industrial and automotive use cases.
• Software Integration: Leverages the NI-XNET driver for efficient frame/signal-level communication and works seamlessly with LabVIEW, LabWindows/CVI, and third-party tools like MATLAB and Python.
•


Technical Specifications

Part Number: 781963-01

Interface: LIN 2.0/2.1, single-port, D-Sub 9-pin male connector.

Data Rate: Up to 20 kbit/s (configurable).

Input Voltage: 7 V to 25 V (LIN bus power).

Power Consumption: 12 W (typical, via chassis).

Operating Temperature: -20°C to 70°C.

Storage Temperature: -40°C to 85°C.

Humidity: 5% to 95% (non-condensing).

Software Compatibility:

NI-XNET Driver: Enables advanced LIN frame manipulation and diagnostics.

LabVIEW/LabWindows/CVI: APIs for custom application development.

Third-Party Support: MATLAB, Python, and ANSI C integration.

Certifications: CE, RoHS compliant.

Our Services:

1, All our products are new and original, and of good quality.

2, Our prices are very competitive.

3, We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.

4, All inquiries will be valued and will reply in 24

Packing & Delivery:

1,100% brand New and Original Factory Seal!

2,Warranty:1 year

3,Package: Original packing with cartons.

4,Delivery time: Shipped in 3-7 days after payment

5,All the goods will be tested before shipment
