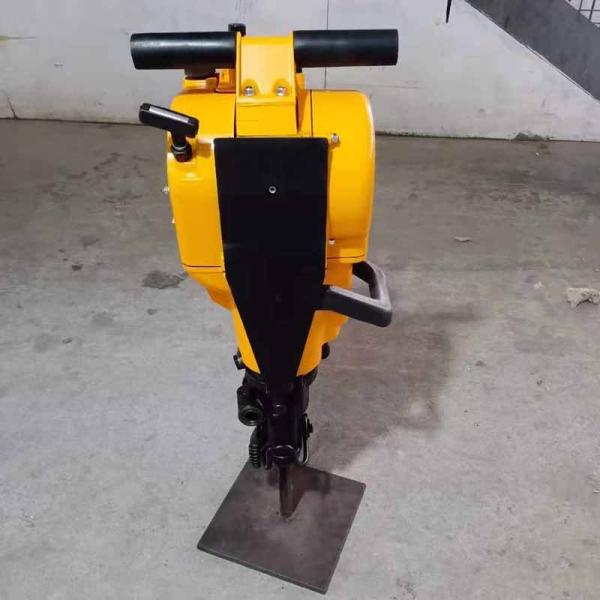

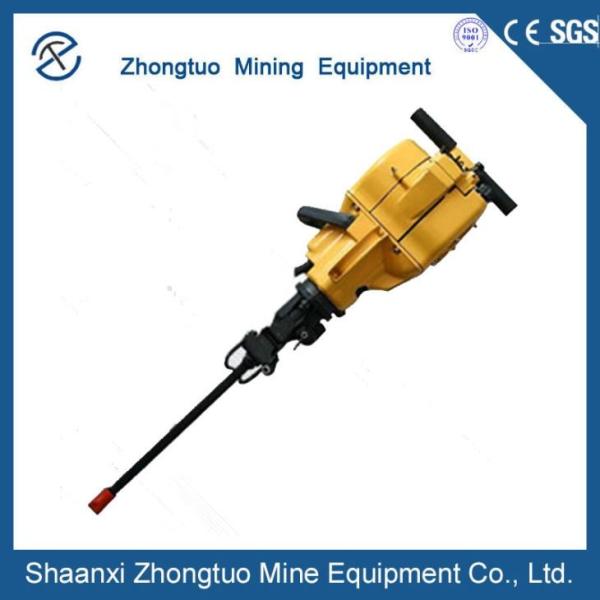

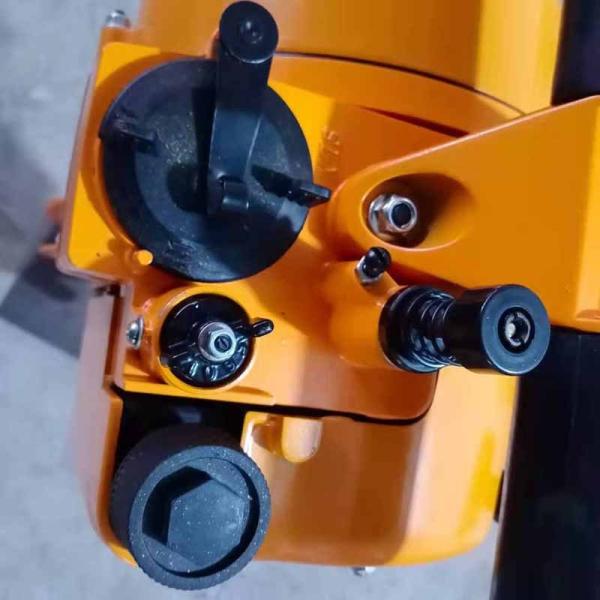

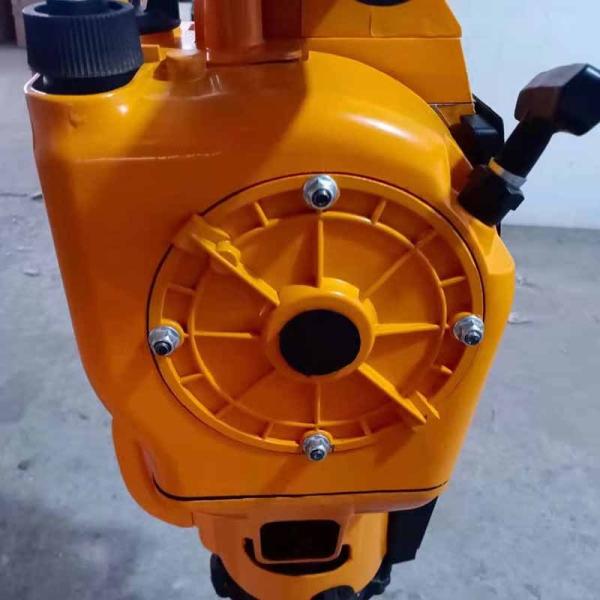

Portable Handle Yn27c Internal Combustion Rock Drill 250mm/Min
Portable Handle Yn27c Internal Combustion Rock Drill 250mm/Min
Portable Handle Yn27c Internal Combustion Rock Drill 250mm/Min
Portable Handle Yn27c Internal Combustion Rock Drill 250mm/Min
Portable Handle Yn27c Internal Combustion Rock Drill 250mm/Min
Portable Handle Yn27c Internal Combustion Rock Drill 250mm/Min
Portable Handle Yn27c Internal Combustion Rock Drill 250mm/Min
Portable Handle Yn27c Internal Combustion Rock Drill 250mm/Min
Portable Handle Yn27c Internal Combustion Rock Drill 250mm/Min
Portable Handle Yn27c Internal Combustion Rock Drill 250mm/Min
Specifications
Brand Name :
ZT
Model Number :
YN27C
Certification :
CE ISO
Place of Origin :
China
MOQ :
1PC
Price :
USD500-1000/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-15 Work Days

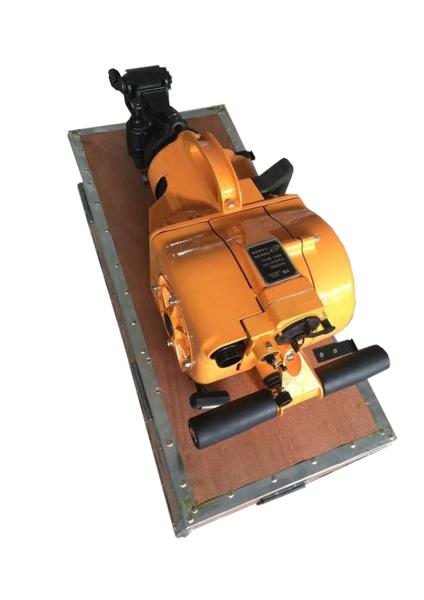

Packaging Details :
Wooden Case
Bit Type :
Diamond Bit
HS Code :
8430390000
Type of Engine :
Air Cooled
Color :
Yellow Golden
Overall& Dimension :
746X315X229mm
Cylinder Diameter :
58X160X70mm
Drilling Speed :
250mm /Min
Max. Drilling Depth :
6m
After-sales Service :
Tracking Guidance & Service
Warranty :
One Year
Description

Working Principle of Portable Handle Yn27c Drilling Rig

The internal combustion rock drill is a new type of rock drilling machine powered by a low-power internal combustion engine (mostly a two-stroke gasoline engine), which is suitable for field operations without a power supply and air compressor. According to the work needs, in addition to the rock drilling operation, the internal combustion type rock drill is generally equipped with more than ten kinds of tools (such as grinding wheels, picks, shovels, shovels, etc.), which can be used for crushing, shoveling, digging, splitting, tamping and other operations.

Description of Portable Handle Yn27c Drilling Rig

Internal combustion rock drills are tools used to directly extract stone. It drills blast holes in rock formations so that explosives can be put in to blast the rock, so as to complete the mining of stone or other stonework. In addition, the rock drill can be converted into a breaker to break up hard layers such as concrete.

Technical of Portable Handle Yn27c Drilling Rig

Weight 27KG Drilling diameter 22mm Piston stroke 70mm
Size 746*315*229mm Drilling depth 5m Engine speed >=2450r/min
Impact frequency 34Hz Drilling Speed 5mm/min Impact energy >=25J
Portable Handle Yn27c Internal Combustion Rock Drill 250mm/Min
Portable Handle Yn27c Internal Combustion Rock Drill 250mm/Min
Portable Handle Yn27c Internal Combustion Rock Drill 250mm/Min
Features of Gasoline Internal Combustion Rock Drill

1. Blast hole diameter is about 34m-42m, and the drill hole depth is 6m.
2. This kind of machine is a new kind of high-efficiency air-leg rock drill machinery.
3. It is suitable for drilling and blasting under various rocks and direction angles.
4. It is mainly used for blasting holes and other drilling works in quarries, railway construction, water conservancy construction, and defense project facility.
5. First-class level Drilling Tools, are suitable for sites without power or air pressure equipment, it has wide adaptability for high mountains and plains, and extreme temperature (±40ºC).

Causes of Oil Circuit Failure
The fuel used by the internal combustion rock drill is No. 70 gasoline and No. 15 gasoline engine lubricating oil. The two should be matched in strict accordance with the volume ratio of 12:1, and the fuel and fuel tank should be kept clean. When the machine fails, the first thing to check is the oil circuit. There are two reasons for too much oil intake: one is that the throttle needle valve is opened too much; the other is that the air filter is blocked by dust, the first check valve is too elastic or the throttle valve is opened too high.
