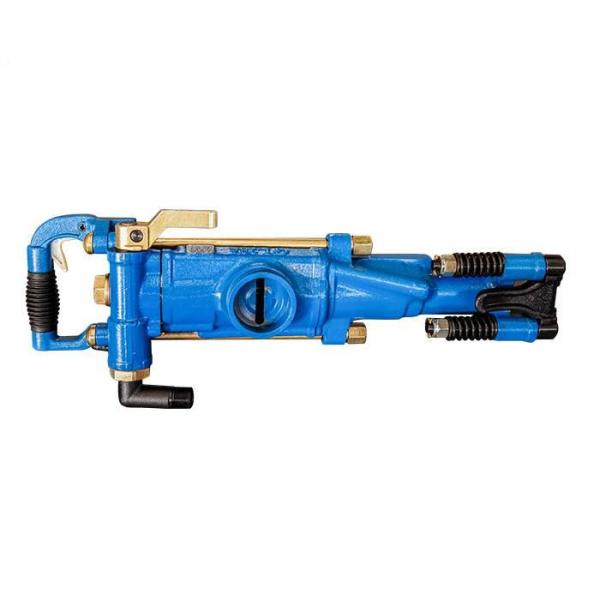

Enhanced High Airleg Drill YT27 Handheld Pneumatic Rock Drill For Tunneling
Enhanced High Airleg Drill YT27 Handheld Pneumatic Rock Drill For Tunneling
Enhanced High Airleg Drill YT27 Handheld Pneumatic Rock Drill For Tunneling
Enhanced High Airleg Drill YT27 Handheld Pneumatic Rock Drill For Tunneling
Enhanced High Airleg Drill YT27 Handheld Pneumatic Rock Drill For Tunneling
Enhanced High Airleg Drill YT27 Handheld Pneumatic Rock Drill For Tunneling
Enhanced High Airleg Drill YT27 Handheld Pneumatic Rock Drill For Tunneling
Enhanced High Airleg Drill YT27 Handheld Pneumatic Rock Drill For Tunneling
Enhanced High Airleg Drill YT27 Handheld Pneumatic Rock Drill For Tunneling
Enhanced High Airleg Drill YT27 Handheld Pneumatic Rock Drill For Tunneling
Specifications
Brand Name :
ZT
Model Number :
YT28
Certification :
CE ISO
Place of Origin :
China
MOQ :
1PC
Price :
USD500-1000/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-15 Work Days
Packaging Details :
Wooden Case
Automatic Grade :
Semiautomatic
Power :
Pneumatic
Air Consumption :
3m3/Min
Transport Package :
Wooden Box
HS Code :
8430390000
Hole Diameter :
<50mm
Wind Pressure :
0.4-0.6MPa
Drilling Depth :
5m
After-sales Service :
Tracking Guidance & Service
Warranty :
One Year
Description

Enhanced High Air Drilling Legs YT27 Handheld Pneumatic Rock Drill For Tunneling

Series of YT Rock Drill Description

Air leg rock drill is rock drilling equipment with high impact energy and lower air consumption,
it is widely fitting for coal mines, railway traffic, water conservancy, and so on.
Pneumatic Rock drills have water flushing, and gun bar rotation and the pusher leg control is placed at the back head of the rock drill. An in-line lubricator is included in the delivery of each rock drill. together with the appropriate pusher leg.

Technical Parameters of YT Series Of Rock Drill

Machine weight 26 kg
Cylinder diameter 80 mm
Piston stroke 60 mm
Working pressure 0.5-0.6 mpa
Impact frequency ≥34 ≥37 hz
Gas consumption ≤55 ≤81 l/min
Tracheal diameter 25 mm
Water pipe diameter 13 mm-
Drilling head diameter 34-42 mm
Drill tail size (hexagonal × length) 22×108±1 mm

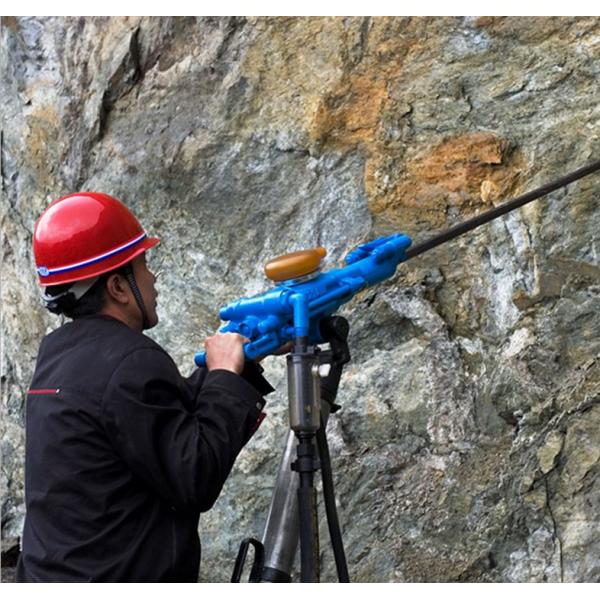

Application of YT Rock Drill

Enhanced High Airleg Drill YT27 Handheld Pneumatic Rock Drill For Tunneling

Advantages of YT Series Rock Drill :

1). save energy and high efficiency
2). strong impact energy
3). low vibration
4). easy handling
5). low noise
6). wet drilling
7). easy cleaning air /water holes
8). spare parts easily purchasing

YT Series Rock Drill Features

1. Moil point, wide chisel, narrow chisel: used for breaking;
2. Splinting rock tool: used for cleaving rocks;
3. Spade: used for excavating the frozen and hard earth;
4. Bended, horseshoe tamping spade: used for tamping the roadbed of a railway;
5. Square, round tamping plate: used for small area tamping.

Enhanced High Airleg Drill YT27 Handheld Pneumatic Rock Drill For Tunneling

Service of YT Series Rock Drill
We provide "one equipment & one case, endless service, namely the after-sales service begins from the order confirmation, and lasts for the working life of the equipment.
