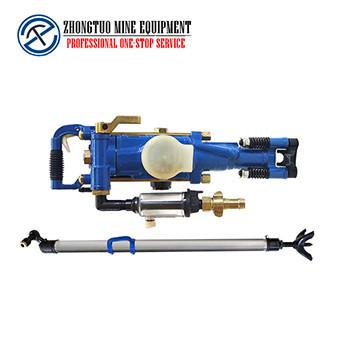

5m Depth YT28 Handheld Air Leg Rock Drill Mine Pneumatic Rock Drill
5m Depth YT28 Handheld Air Leg Rock Drill Mine Pneumatic Rock Drill
5m Depth YT28 Handheld Air Leg Rock Drill Mine Pneumatic Rock Drill
5m Depth YT28 Handheld Air Leg Rock Drill Mine Pneumatic Rock Drill
5m Depth YT28 Handheld Air Leg Rock Drill Mine Pneumatic Rock Drill
5m Depth YT28 Handheld Air Leg Rock Drill Mine Pneumatic Rock Drill
5m Depth YT28 Handheld Air Leg Rock Drill Mine Pneumatic Rock Drill
5m Depth YT28 Handheld Air Leg Rock Drill Mine Pneumatic Rock Drill
5m Depth YT28 Handheld Air Leg Rock Drill Mine Pneumatic Rock Drill
5m Depth YT28 Handheld Air Leg Rock Drill Mine Pneumatic Rock Drill
Specifications
Brand Name :
ZT
Model Number :
YT28
Certification :
CE ISO
Place of Origin :
China
MOQ :
1PC
Price :
USD500-1000/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-15 Work Days
Packaging Details :
Wooden Case
Automatic Grade :
Semiautomatic
Power :
Pneumatic
Air Consumption :
3m3/Min
Transport Package :
Wooden Box
HS Code :
8430390000
Hole Diameter :
<50mm
Wind Pressure :
0.4-0.6MPa
Drilling Depth :
5m
After-sales Service :
Tracking Guidance & Service
Warranty :
One Year
Description

Series of YT Rock Drill Description

Hand Held Rock Drilling Machine can be used to dig dry or wet by horizontal holes, vertical holes, or angling holes on medium-hard rock or hard rock. Widely used in mines, railway, irrigation, and quarry to drill holes and for the second digging holes.

Technical Parameters of YT Series Of Rock Drill

Machine weight 26 kg
Cylinder diameter 80 mm
Piston stroke 60 mm
Working pressure 0.5-0.6 mpa
Impact frequency ≥34 ≥37 hz
Gas consumption ≤55 ≤81 l/min
Tracheal diameter 25 mm
Water pipe diameter 13 mm-
Drilling head diameter 34-42 mm
Drill tail size (hexagonal × length) 22×108±1 mm

Application of YT Rock Drill

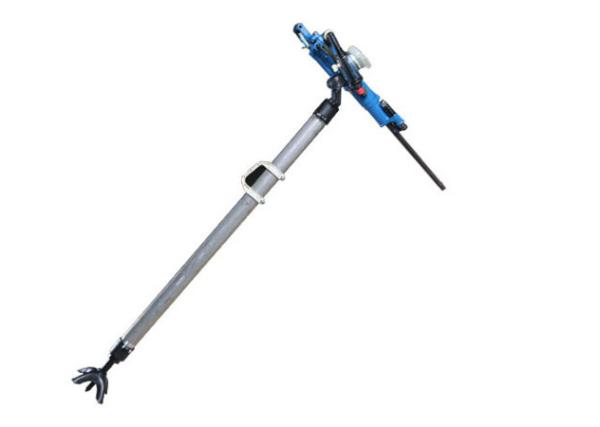

5m Depth YT28 Handheld Air Leg Rock Drill Mine Pneumatic Rock Drill

Application of YT Series Rock Drill :

They are applied for wet drilling and blasting in tunnels, road construction, and mining. It adopts the latest design technology, combined with high-quality forging spare parts and easy-handling air leg to win a high reputation in the global market. With the superiority of its high speed, low failure rate, durable wearing parts, low noise and lightweight, it has strong adaptability to different poor working conditions and reduces the customer loss for spare parts replacements.

YT Series Rock Drill Advantages:

YT28 Air Leg Rock Drill is a high-efficiency air leg rock drill machine, It is widely used for blasting holes and other drilling projects in quarries, railway construction, water conservancy construction, and defense project facility.

5m Depth YT28 Handheld Air Leg Rock Drill Mine Pneumatic Rock Drill

Features of YT Series Rock Drill
1. The gas distribution method of rock drill is a bowl-shaped gas valve, which is reasonable in layout and sensitive in
starting.
2. It has the advantages of light weight, fast rock drilling speed, low air consumption, small oscillation, convenient
operation, low failure rate, long life of parts, and good economic benefits.
3. The rock drill has a simple structure, and safety and is easy to operate.
