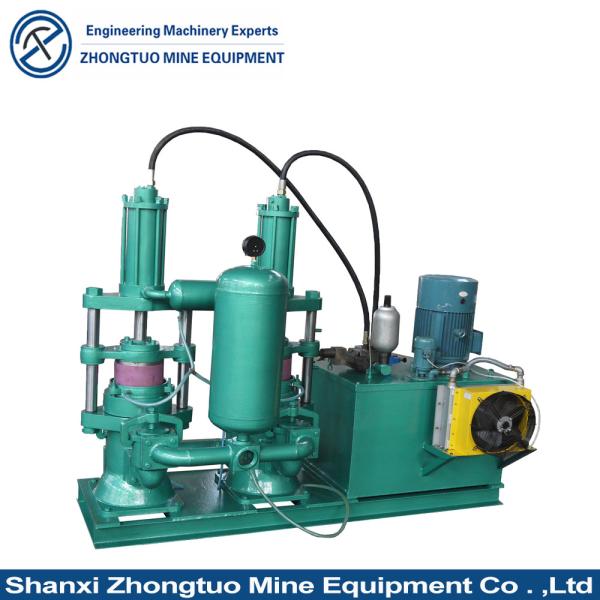

High Quality YB350 Large Hydraulic Ceramic Plunger Pump
High Quality YB350 Large Hydraulic Ceramic Plunger Pump
Specifications
Brand Name :
ZT
Model Number :
ZT350
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100pcs/month
Delivery Time :
5-10 Work Days
Packaging Details :
Wooden Case
Style :
YB350
Moter :
55Kw
Flow :
100m3
Pressure :
0.1-2.5Pma
Stroke :
420mm
Fit for :
500 square filter press
Description

1. Product Introduction

YB Hydraulic Ceramic Plunger Pump
YB hydraulic ceramic plunger pump is a double cylinder double acting ceramic plunger mud pump driven by hydraulic pressure.
YB hydraulic ceramic plunger pump is characterized by high pressure delivery of thick solid content slurry. Therefore, YB hydraulic ceramic plunger pump is widely used in ceramics, environmental protection, chemical industry, medicine, mining, food, and other industries.

High Quality YB350 Large Hydraulic Ceramic Plunger Pump

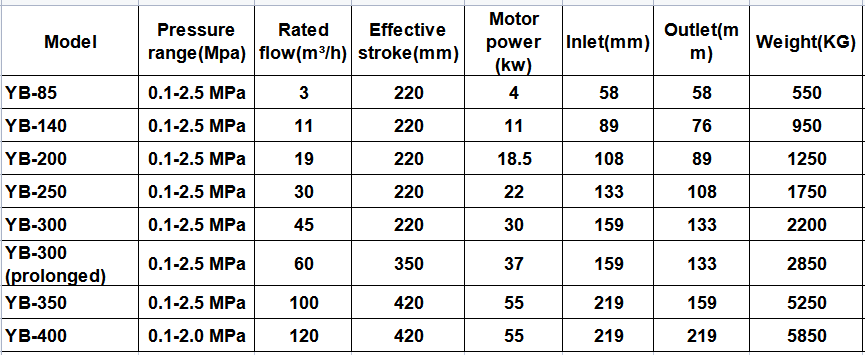

2. Parameters

High Quality YB350 Large Hydraulic Ceramic Plunger Pump

High Quality YB350 Large Hydraulic Ceramic Plunger Pump

High Quality YB350 Large Hydraulic Ceramic Plunger Pump

2. Advantages

YB Hydraulic Ceramic Plunger Pump with filter press, one can replace 3-4 old diaphragm pump.

YB Hydraulic Ceramic Plunger Pump has the characteristics of stable operation, low noise, high pressure, small pressure fluctuation, easy installation and maintenance operation, long service life, etc.

3. Usage

YB Hydraulic Ceramic Plunger Pump are widely used in ceramic industry (ceramic bowl factory, ceramic stone), electric porcelain (electric porcelain factory), mining, medicine (pharmaceutical factory), chemical (chemical factory), petroleum, environmental protection (water treatment, municipal sewage, paper sludge, glass polishing, steel rolling, electroplating sewage, rinsing sewage, tannery, printing and dyeing sewage) and other industries.
