Double Cylinder Sewage Treatment Mud Pump Machine For Filter Press
Double Cylinder Sewage Treatment Mud Pump Machine For Filter Press
Double Cylinder Sewage Treatment Mud Pump Machine For Filter Press
Double Cylinder Sewage Treatment Mud Pump Machine For Filter Press
Double Cylinder Sewage Treatment Mud Pump Machine For Filter Press
Double Cylinder Sewage Treatment Mud Pump Machine For Filter Press
Double Cylinder Sewage Treatment Mud Pump Machine For Filter Press
Double Cylinder Sewage Treatment Mud Pump Machine For Filter Press
Double Cylinder Sewage Treatment Mud Pump Machine For Filter Press
Double Cylinder Sewage Treatment Mud Pump Machine For Filter Press
Specifications
Brand Name :
ZHONGTUO
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-15 Days
Packaging Details :
Wooden Carton
Materials :
Iron, Stainless steel
Power :
Hydraulic
Flow :
3-120m3/h
Pressure :
0.1-2.5Mpa
Inlet pipe (mm)/(in) :
58-219mm
Stroke :
200-250mm
Weight :
500-5800kg
Transport Package :
Wooden Case
Production Capacity :
50piecces/Month
Description

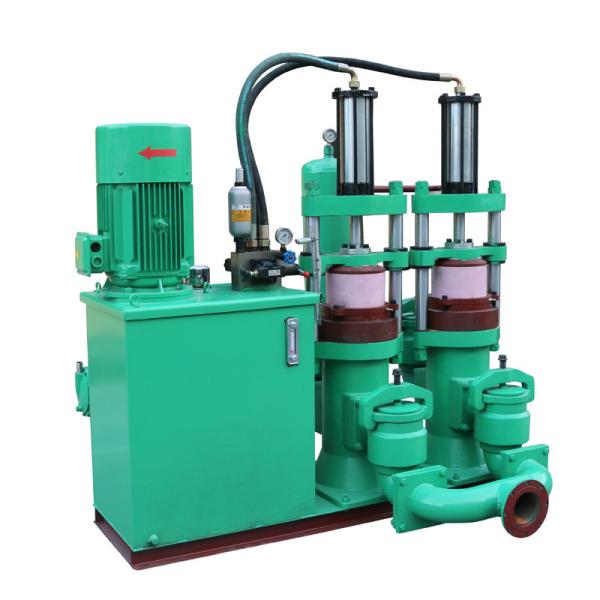

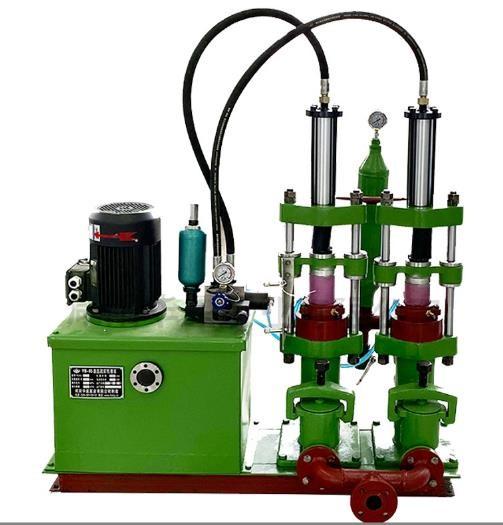

Double Cylinder Sewage Treatment Mud Pump for Filter Press

Description of Double Cylinder Mud Pump

The YB Series plunger pump is a type of positive displacement pump where the high-pressure seal is stationary and a smooth cylindrical plunger slides through the seal. While working, the plungers are driven by a hydraulic system to make a reciprocating motion, thus changing the pump chamber, so that realize the material transportation.

Technical Parameters of Ceramic Mud Pump

Model Pressure range(Mpa) Rated flow(m³/h) Effective
stroke(mm)		 Motor power(kw) Inlet(mm) Outlet(mm) Weight(KG)
YB-85 0.1-2.5 MPa 3 220 4 58 58 550
YB-140 0.1-2.5 MPa 11 220 11 89 76 950
YB-200 0.1-2.5 MPa 19 220 18.5 108 89 1250
YB-250 0.1-2.5 MPa 30 220 22 133 108 1750
YB-300 0.1-2.5 MPa 45 220 30 159 133 2200
YB-300
(prolonged)		 0.1-2.5 MPa 60 350 37 159 133 2850
YB-350 0.1-2.5 MPa 100 420 55 219 159 5250
YB-400 0.1-2.5 MPa 120 420 55 219 219 5850
YH-85 0.1-2.5 MPa 3 220 2.2 58 58 550
YH-140 0.1-2.5 MPa 11 220 5.5 89 76 950
YH-200 0.1-2.5 MPa 19 220 7.5 108 89 1250
YH-250 0.1-2.5 MPa 30 220 11 133 108 1750
YH-300 0.1-2.5 MPa 45 220 18.5 159 133 2200
YH-300
(prolonged)		 0.1-2.5 MPa 60 350 22 159 133 2850
YH-350 0.1-2.5 MPa 100 420 37 219 159 5250
YH-400 0.1-2.5 MPa 120 420 37 219 219 5850

Double Cylinder Sewage Treatment Mud Pump Machine For Filter Press

Advantages of Ceramic Mud Pump

1. The plunger pump can automatically control the output and can fix the feeding pressure. Once the pressure is set, while the feeding pressure reaches that value, the feeding speed wills vary accordingly and the pressure will maintain.
2. The plunger pump is driven by a hydraulic station, so it can reach higher pressure and works stable.
3. The plunger's material is an aluminum oxide ceramic plunger, and its features are wear-resisting, easy maintenance, cost-saving, and long life span.
4. special plunger pumps can be designed and manufactured according to customer needs.

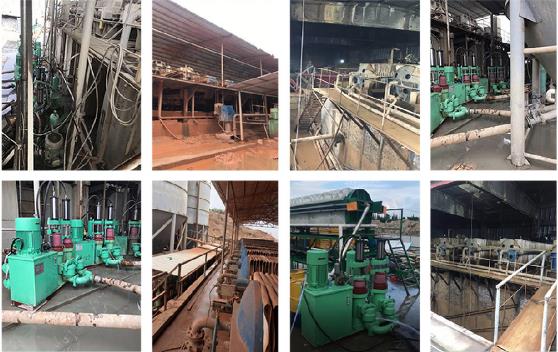

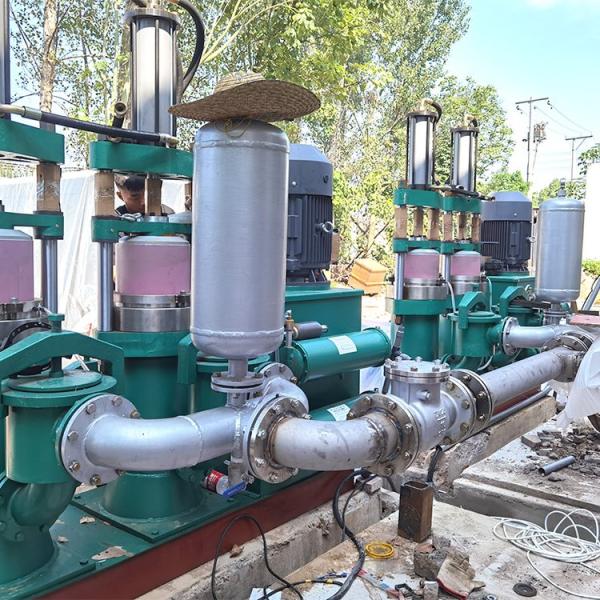

Application of Ceramic Mud Pump

1. Involved industries: environmental water treatment: municipal sewage, paper sludge, glass polishing, steel rolling, electroplating sewage, rinsing sewage, ceramic stone: leather, and other industries sewage treatment, printing, and dyeing sewage and other industries sewage treatment.

2. Food and pharmaceutical: bean residue powder and other lines of sewage treatment, beer brewing, sugar monosodium glutamate, alcohol, yeast, pharmaceutical sewage, glutinous rice

3. Chemical pigments: oil liquefaction slag, white hair black pigment fuel, titanium dioxide lubricating oil, chemical fiber dilute hydrochloric acid, cosmetics, and other industry's sewage treatment.

Double Cylinder Sewage Treatment Mud Pump Machine For Filter Press

Routine Maintenance of Sewage Treatment Mud Pump

1. Mud pumps and other mechanical equipment should be inspected and maintained on a scheduled and timely basis to find and address problems ahead of time, in order to avoid an unscheduled shutdown.

3. Advanced anti-wear measures should be adopted to increase the service life of the wearing parts, which can reduce the investment cost of the project, and improve production efficiency. At the same time, wearing parts and other mud pump parts should be repaired rather than replaced when possible.

How to Choose a Suitable Mud Pump Type and Model

1. According to the working conditions and medium, No particles larger than 0.5 mm are allowed in the medium conveyed
by the plunger pump, otherwise it will cause work failure. If the material is neutral, choose an ordinary gray cast iron;
plunger pump, and if the material is with iron pollution, choose a 304 stainless steel plunger pump, anti-corrosion vinyl
plunger pump should be used for strong acid or alkaline corrosion;
2. Determine a reasonable flow range. The nominal flow rate of the plunger pump model is the rated flow and the
appropriate margin range should be considered during application;
3. Determine the applicable pressure level. The rated pressure of the plunger pump can reach 2.0Mpa. When matching the
filter press, a variable frequency pump, or a full-frequency automatic variable plunger pump should be used first, and a
A low-pressure pump should be used for pulping to reduce waste; After the parameters, select the YB series ceramic plunger pump according to the standard model.
