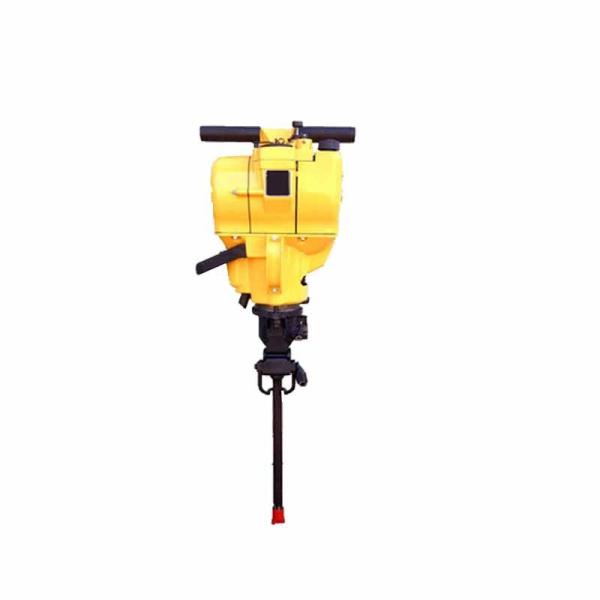

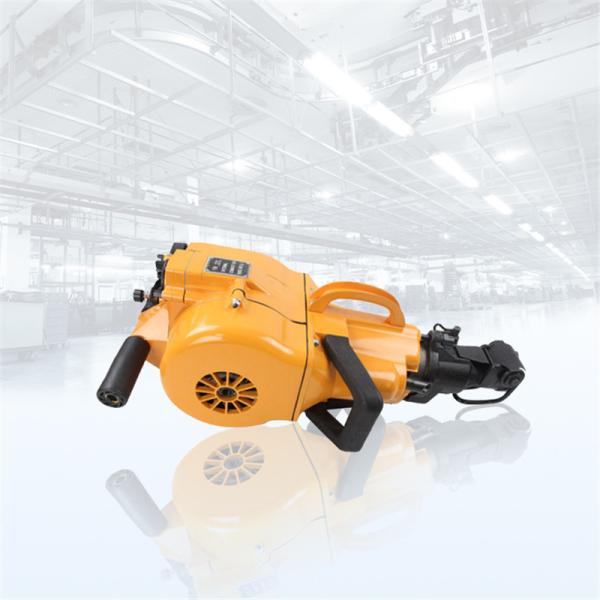

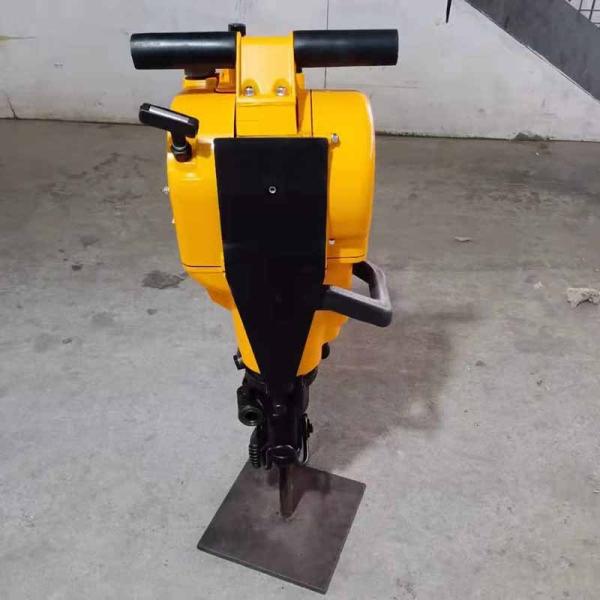

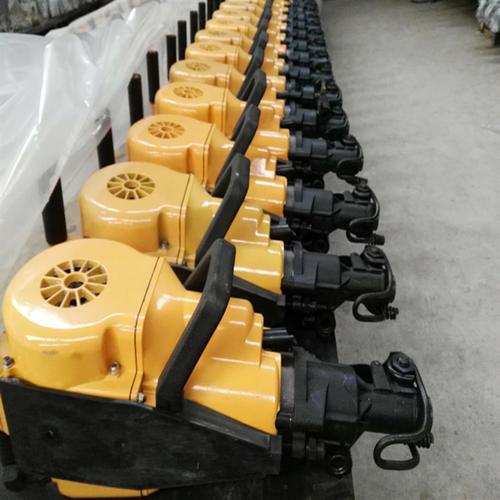

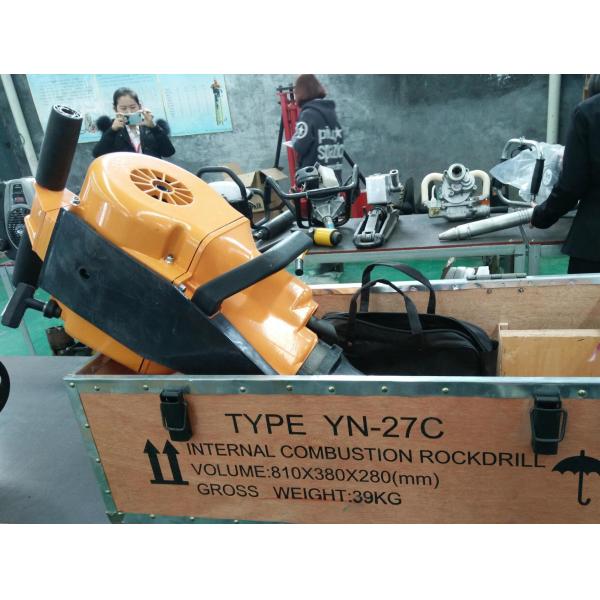

250mm/Min Stone Mining Drilling Rig Machine Yellow Internal Combustion Rock Drill
250mm/Min Stone Mining Drilling Rig Machine Yellow Internal Combustion Rock Drill
250mm/Min Stone Mining Drilling Rig Machine Yellow Internal Combustion Rock Drill
250mm/Min Stone Mining Drilling Rig Machine Yellow Internal Combustion Rock Drill
250mm/Min Stone Mining Drilling Rig Machine Yellow Internal Combustion Rock Drill
250mm/Min Stone Mining Drilling Rig Machine Yellow Internal Combustion Rock Drill
250mm/Min Stone Mining Drilling Rig Machine Yellow Internal Combustion Rock Drill
250mm/Min Stone Mining Drilling Rig Machine Yellow Internal Combustion Rock Drill
250mm/Min Stone Mining Drilling Rig Machine Yellow Internal Combustion Rock Drill
250mm/Min Stone Mining Drilling Rig Machine Yellow Internal Combustion Rock Drill
Specifications
Brand Name :
ZT
Model Number :
YN27C
Certification :
CE ISO
Place of Origin :
China
MOQ :
1PC
Price :
USD500-1000/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-15 Work Days
Packaging Details :
Wooden Case
Bit Type :
Diamond Bit
HS Code :
8430390000
Type of Engine :
Air Cooled
Color :
Yellow Golden
Overall& Dimension :
746X315X229mm
Cylinder Diameter :
58X160X70mm
Drilling Speed :
250mm /Min
Max. Drilling Depth :
6m
After-sales Service :
Tracking Guidance & Service
Warranty :
One Year
Description

Working Principle of Portable Handle Yn27c Drilling Rig

The internal combustion rock drill is a new type of rock drilling machine powered by a low-power internal combustion engine (mostly a two-stroke gasoline engine), which is suitable for field operations without a power supply and air compressor. The rotation of the drill rod of the internal combustion rock drill can be realized by means of an inner ratchet rotary drilling mechanism without independent screw rods or an external rotary drilling mechanism driven by the crank main shaft.

Technical of Portable Handle Yn27c Drilling Rig

Weight 27KG Drilling diameter 22mm Piston stroke 70mm
Size 746*315*229mm Drilling depth 5m Engine speed >=2450r/min
Impact frequency 34Hz Drilling Speed 5mm/min Impact energy >=25J
250mm/Min Stone Mining Drilling Rig Machine Yellow Internal Combustion Rock Drill
250mm/Min Stone Mining Drilling Rig Machine Yellow Internal Combustion Rock Drill
250mm/Min Stone Mining Drilling Rig Machine Yellow Internal Combustion Rock Drill
Features of Gasoline Drilling Rig

1. YN27c hand-held internal combustion rock drill is a hand-held rock drilling tool composed of a small gasoline engine, a compressor and a rock drill;
2. The machine is easy to operate, saves time and effort, and has the characteristics of fast chisel speed and high efficiency;
3. The machine is currently at the level of similar products, and can be completely interchangeable with similar products;
4. The YN27c internal combustion rock drill can drill holes in the rock, which can drill vertically downwards and horizontal upwards less than 45° vertically downwards to a depth of six meters;
5. The weight of the host is only 27 kg, which is easy to carry. It is especially suitable for areas with high mountains, no power supply, no wind pressure equipment, and temporary projects with large mobility.
6. No matter in high mountains, or flat land, no matter in a 40 ° hot or minus 40 ° cold area, it can work, this machine has a wide range of adaptability.

250mm/Min Stone Mining Drilling Rig Machine Yellow Internal Combustion Rock Drill

Application of Gasoline Drilling Rig

It is used for various chiseling, crushing, digging, splitting, and tamping work. Because the machine has its own power and produces its own compressed air to flush the blasthole, it is especially suitable for areas with high mountains, no power supply, no compressed air equipment, and temporary projects with large mobility. Widely used in open pit mining, excavation of frozen soil, road construction, cable laying, and water conservancy construction.

Entire Service
We would provide customers with a one-year warranty, during processing, if customers have any problems with installation and use, we have professionals to provide online text, voice, or video communication services for them.
