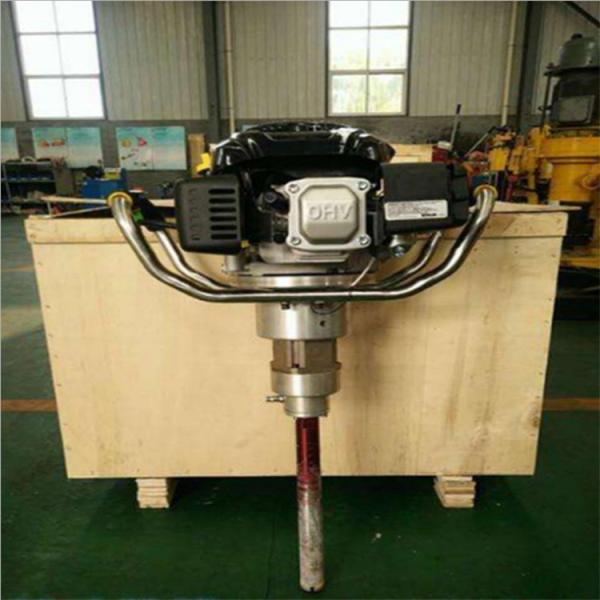

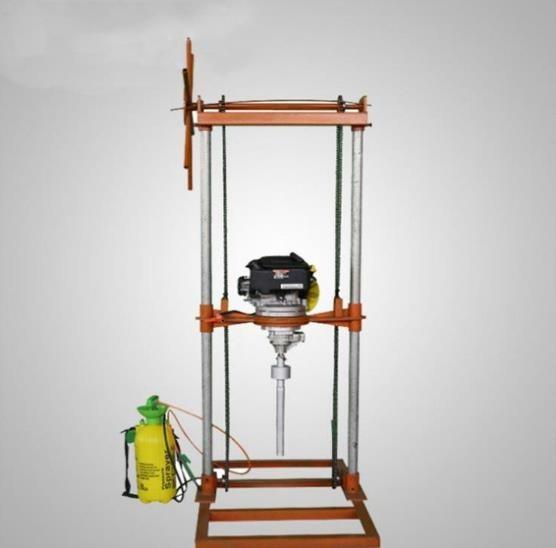

Description of Backpack Drilling Rig

Backpack drilling rig is a high-horsepower portable geological shallow core drilling rig. Please choose the brand of “Huaxia Master” when you buy a backpack drilling rig. This portable drilling rig is tailor-made for mineral exploration, oil field survey, geological research and exploration, I believe this equipment will also be of great benefit to your work.

Parameter of Backpack Drilling Rig

Backpack Drilling Rig Application:

Using the drilling machine for sampling instead of the traditional artificial mining, pit, and well sampling agent, etc. It can not only speed up the sampling work but also reduce the destruction of the vegetation significantly, protecting the environment.

Regional geological mapping, geophysical and sampling, paleomagnetism sampling, and geological disaster prevention and indispensable to shallow geological exploration technology.

The Core Drill Machine --Areas of Application:

Physic-chemical sampling vein, regional geological mapping, mining exploration, mineral grade assessment, geotechnical testing, and all kinds of drilling.

Features of Backpack Drilling Rig

* Compact & portable

* Simple to operate

* Easy to assemble and disassemble

* Convenient to move

* Ideal choice to work in a remote location

Application of Backpack Drilling Rig

Backpack Drilling Rig Working Efficiency on Different Rock

• Quartzite 2.7 feet./min. 69 mm/min.
• Slabstone 4.7 feet./ min. 119 mm/min.
• Basalt 5.0 feet./ min. 127 mm/min.
• Sandstone 5.1 feet./ min.130 mm/min.
• Dolomite 8.9 feet./ min. 226 mm/min.
• Limestone 9.5 feet./ min. 241 mm/min.
• Water Loss(different materials, different figures) 3.8 gallon/ hour 14.4L /hour
• Fuel Consumption (different materials, different figures) 13 fluid ounces/hour 0.39L/hour 0.7 oil groove/hour
• Diameter of the Coring 0.81 inch 20.5mm
• Diameter 1.04 inch 26.4mm
• Rotate Speed (Full Speed, no-load) 1920 circle/ min
• Power 1.31 HP Full Speed
