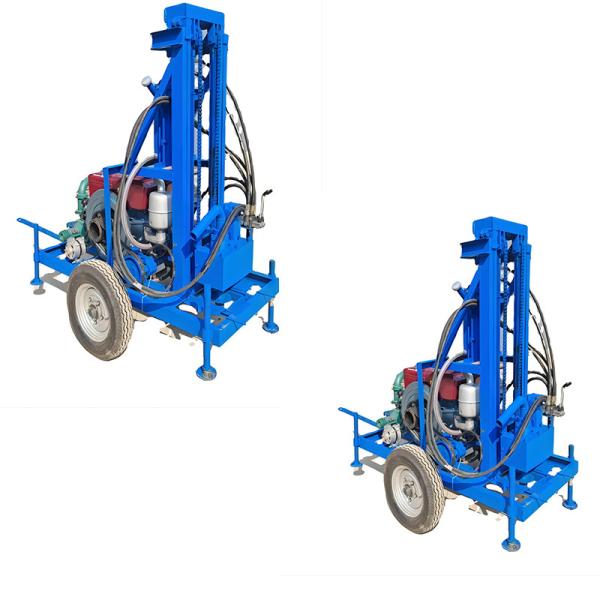

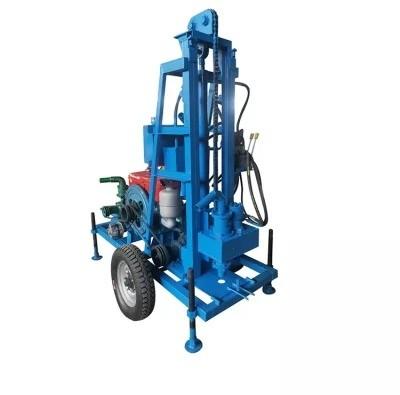

Portable Household Well Drilling Rig Machine Gasoline Hydraulic Drilling Machine
Portable Household Well Drilling Rig Machine Gasoline Hydraulic Drilling Machine
Portable Household Well Drilling Rig Machine Gasoline Hydraulic Drilling Machine
Portable Household Well Drilling Rig Machine Gasoline Hydraulic Drilling Machine
Portable Household Well Drilling Rig Machine Gasoline Hydraulic Drilling Machine
Portable Household Well Drilling Rig Machine Gasoline Hydraulic Drilling Machine
Portable Household Well Drilling Rig Machine Gasoline Hydraulic Drilling Machine
Portable Household Well Drilling Rig Machine Gasoline Hydraulic Drilling Machine
Portable Household Well Drilling Rig Machine Gasoline Hydraulic Drilling Machine
Portable Household Well Drilling Rig Machine Gasoline Hydraulic Drilling Machine
Specifications
Brand Name :
ZT
Model Number :
ZTJD100/150/180
Certification :
CE ISO
Place of Origin :
China
MOQ :
1PC
Price :
USD2500-3000/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-15 Work Days
Packaging Details :
Wooden Case
Drilling depth :
100-200（m）
Weight :
362（kg）
Model :
ZSJD-100/120/150/200
Drilling angle range :
360（°）
Broken way :
Rotary Drill
Drilling diameter :
120-150（mm）
Applicable voltage :
220V/380V
After-sales Service :
Tracking Guidance & Service
Warranty :
One Year
Description

Description of Water Well Drill Machine

Compared with other similar products, it has the advantages of light weight, simple structure, fast drilling speed and large diameter of core samples.

Application of Water Well Drill Machine

It is suitable for engineering geological survey of railway, hydropower, transportation, bridge, dam foundation and other buildings; geological core drilling and physical survey; drilling of small grouting holes and blasting holes; drilling of small water wells. Divided into: telescopic/foldable two-phase electric, three-phase electric, gasoline engine, diesel engine

Portable Household Well Drilling Rig Machine Gasoline Hydraulic Drilling Machine

Parameters of Water Well Drill Machine

Rig model ZSJD-100 type Motor Power 4000W
Drill pipe diameter 42mm Drilling and crushing method Impact Rotary
Dimensions 80cm*80cm*245cm Drilling depth 100-200M
Drill pipe length 1.5m Pump power 2.2KW
Rig weight 200KG Drilling diameter Within 400mm
Drill pipe replacement method Thread button (automatic double thread) Machine Height 2 meters
Applicable voltage 220V/380V Force 1000KG

Rig model ZTJD-150 type Motor Power 4000W
Drill pipe diameter 50mm Drilling and crushing method Impact Rotary
Dimensions 90cm*90cm*245cm Drilling depth 100-200M
Drill pipe length 1.5m Pump power 2.2KW
Rig weight 250KG Drilling diameter Within 400mm
Drill pipe replacement method Thread button (automatic double thread) Machine Height 2 meters
Applicable voltage 220V/380V/
Gasoline / Diesel		 Force 2000KG

Rig model ZTJD-180 type Motor Power 4000W
Drill pipe diameter 50mm Drilling and crushing method Impact Rotary
Dimensions 100cm*100cm*245cm Drilling depth 100-200M
Drill pipe length 1.5m Pump power 2.2KW
Rig weight 290KG Drilling diameter Within 500mm
Drill pipe replacement method Thread button (automatic double thread) Machine Height 2 meters
Applicable voltage 220V/380V/
Gasoline / Diesel		 Force 2000KG

Daily maintenance of Water Well Drill Machine

1. The motor part of the drilling rig should be handled with care to avoid rain, splashing water,
2. The motor wire connector should not be touched and connected to the electricity.
3. Always check whether the wire rope is replaced.
4. Before and after use, the drill rod screw head should be lubricated with oil and placed in a rain shelter to avoid rusting.
5. The motor cannot be overloaded for a long time.
6. Check the circuit and transformer insurance when the motor does not rotate.
