Specifications
Usage :
highways and roads
Delivery Time :
7-15 work days
MAQ :
1

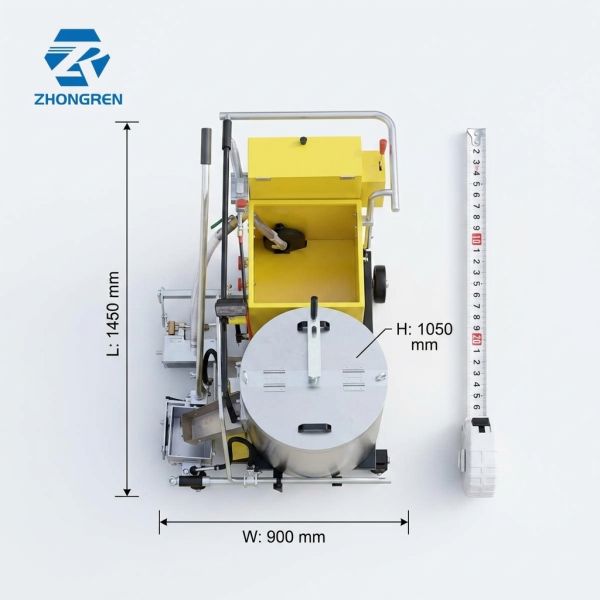

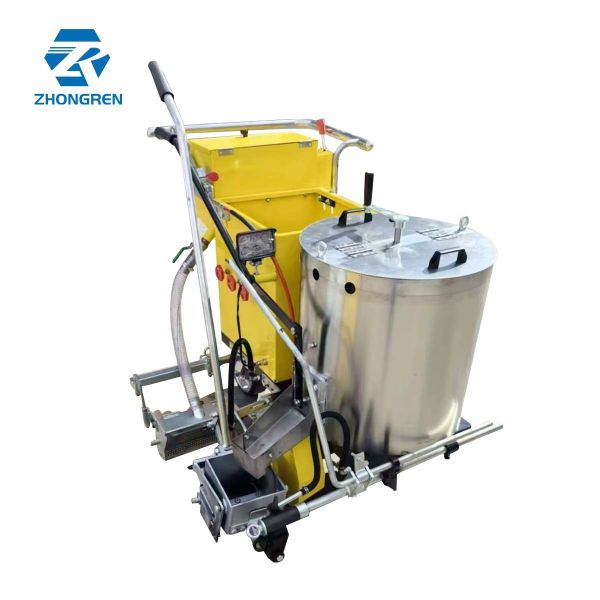

Name :
Road marking machine
Place of Origin :
Shandong, China
Application :
Road paint marking
Certification :
CE ISO
Warranty :
1 Year
Packaging Details :
Wooden case or carton
OEM :
Offered
Fueture :
Long lifespan, good waterproof performance, and fast cooling speed
MOQ :
1 set
Keyword :
thermoplastic road marking machine
Price :
$1700-1620/1-6 pieces
Brand Name :
Zhongren
Model Number :
ZR-RMR2
Payment Terms :
L/C,T/T
Description

Product Description

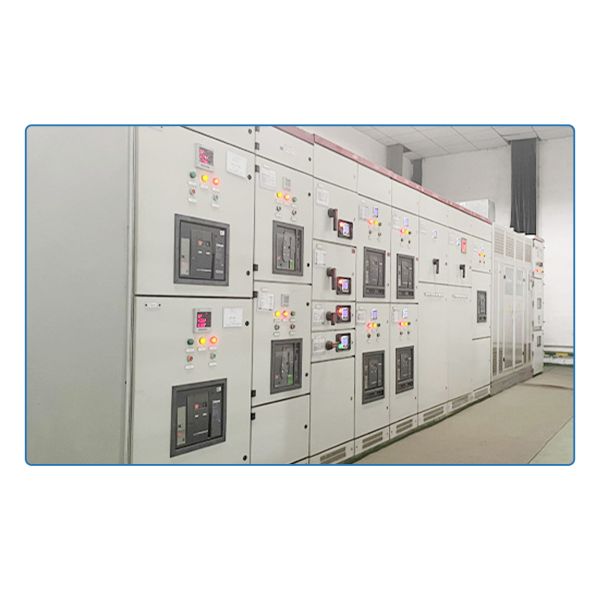

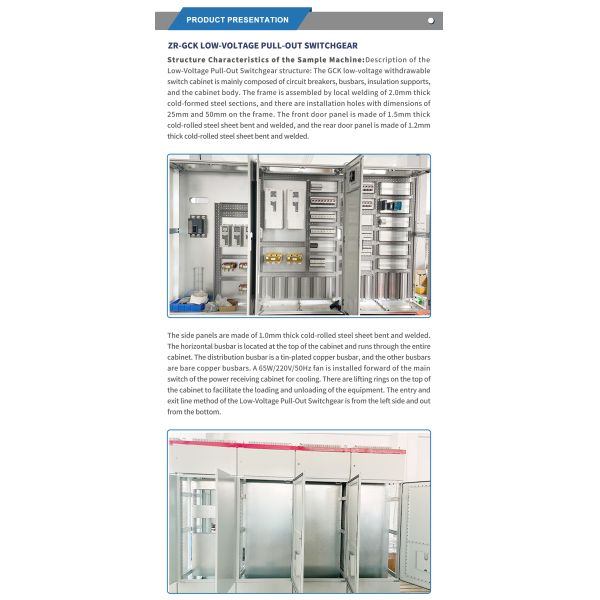

The low-voltage switchgear system adopts a design that isolates power and control cables, facilitating safe operation by staff. The pull-out drawers are equipped with intelligent sensors that can measure current, voltage, and primary insertion temperature.

Customized Manufacturer Direct Sales Low-Voltage Switchgear Cabinet Rated Capacity For Indoor Power Distribution, Fast Delivery

Customized Manufacturer Direct Sales Low-Voltage Switchgear Cabinet Rated Capacity For Indoor Power Distribution, Fast Delivery

Insulation Conduit Wiring Method for Auxiliary Circuits: Use wire wrapping tubes to bundle the insulation conduits ■ Use straps.
for fixation ■ Use line troughs for fixation □
Operating Mode of the Switch Cabinet: Manual ■ Electric ■
Installation Mode of the Switch Cabinet: Fixed installation ■ Suspended installation □ Embedded installation □
Installation Location of the Switch Cabinet: Indoor ■ Outdoor □
Material of the Switch Cabinet: Metal ■ Non-metal □ (Others □)
Thickness of the Switch Cabinet Material: Frame 2.0mm, Front door panel 1.5mm, Rear door panel 1.2mm, Side panel 1.0mm.
Electrical Connection Mode of the Functional Unit: Incoming Line Cabinet FFF, Feeder Cabinet FF (without auxiliary circuits), Control Cabinet WWW.

Electrical connection type of the main incoming circuit, the second letter indicates: Electrical connection type of the main outgoing circuit, the third letter indicates: Electrical connection type of the auxiliary circuit.
Note: F - Fixed connection, D - Separable connection, W - Withdrawable connection.)

Customized Manufacturer Direct Sales Low-Voltage Switchgear Cabinet Rated Capacity For Indoor Power Distribution, Fast Delivery

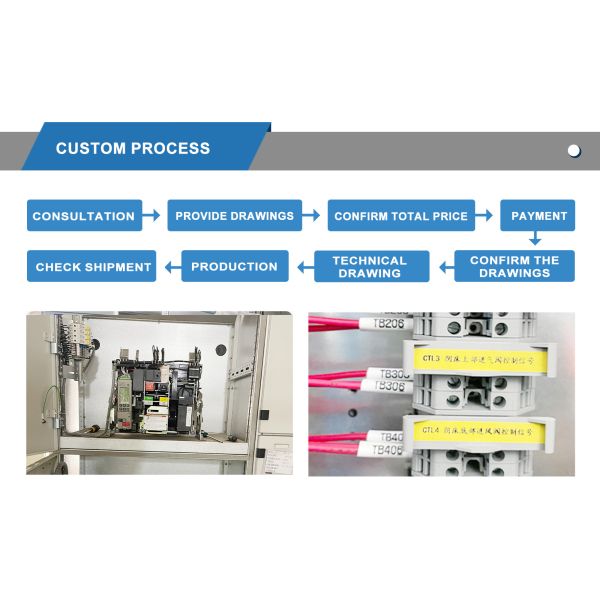

Cautionary Notice

All the products are custom-made. Before placing the order, please communicate in detail with the customer service about your
specific requirements (such as specifications, parameters, functions, etc.). We will provide an exclusive solution based on your
needs and confirm the price. The production cycle of custom-made products depends on the complexity of the order. Thank you for
your understanding and cooperation!

Customized Manufacturer Direct Sales Low-Voltage Switchgear Cabinet Rated Capacity For Indoor Power Distribution, Fast Delivery

3.1 Switching electrical appliances and enclosures (model specifications / material names)
Number
Component name
Type specification
Quantity
1
air circuit breaker (ACB)
HZLW1-2000/3 1600A
1
Icu: 80kA；Ics: 50kA
2
Enclosed knife switch
HD13-2000/30BX 2000A
1
3
Boby case
GGD case (Frame 2.0mm; Front door panel thickness 1.2mm; Rear door panel thickness 1.0mm; Side panel material thickness: 1.0mm)
1
3.2 Busbars and Insulated Conductors (Material Name, Model Specification)
Number
Component name
name of the material
Type
1
Breaker incoming and outgoing lines
Copper strip (bare copper)
TMY - 2×(10mm×60mm)
2
horizontal bus
TMY - 10mm×100mm
3
Busbar (PE)
TMY - 10mm×60mm
4
Busbar (N)
TMY - 10mm×60mm
3.3 Insulation support components and related connecting parts (material name, model specification)
Number
Component name
name of the material
Type
1
Insulation support component
PPO bus-bar clamp
10mm×100mm
DMC insulator
M8
Epoxy glass fiber cloth insulation board
thickness 1.0mm

Customized Manufacturer Direct Sales Low-Voltage Switchgear Cabinet Rated Capacity For Indoor Power Distribution, Fast Delivery

Customized Manufacturer Direct Sales Low-Voltage Switchgear Cabinet Rated Capacity For Indoor Power Distribution, Fast DeliveryCustomized Manufacturer Direct Sales Low-Voltage Switchgear Cabinet Rated Capacity For Indoor Power Distribution, Fast DeliveryCustomized Manufacturer Direct Sales Low-Voltage Switchgear Cabinet Rated Capacity For Indoor Power Distribution, Fast DeliveryCustomized Manufacturer Direct Sales Low-Voltage Switchgear Cabinet Rated Capacity For Indoor Power Distribution, Fast DeliveryCustomized Manufacturer Direct Sales Low-Voltage Switchgear Cabinet Rated Capacity For Indoor Power Distribution, Fast Delivery
