Specifications
Brand Name :
Zhongren
Model Number :
ZR-MNS
Place of Origin :
Shandong, China
MOQ :
1 pieces
Payment Terms :
L/C, T/T
application :
Industrial
name :
Low Voltage Switchgear
color :
Customer Request
keyword :
switchgear cabinet
Warranty :
1 Year
Moq :
1
Description

Product Description

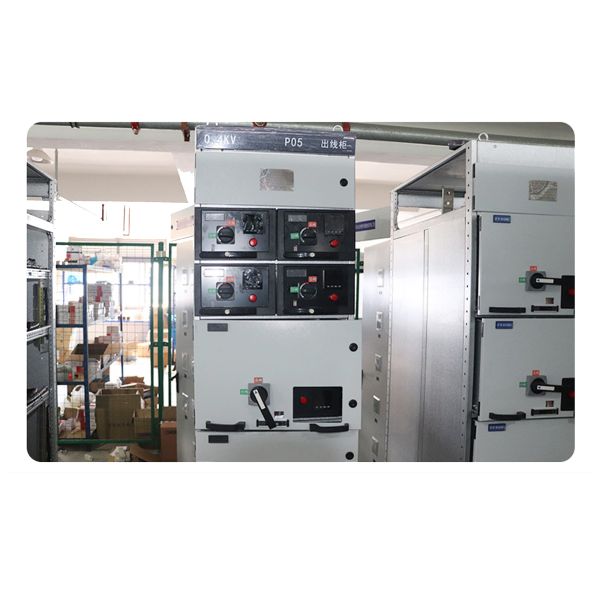

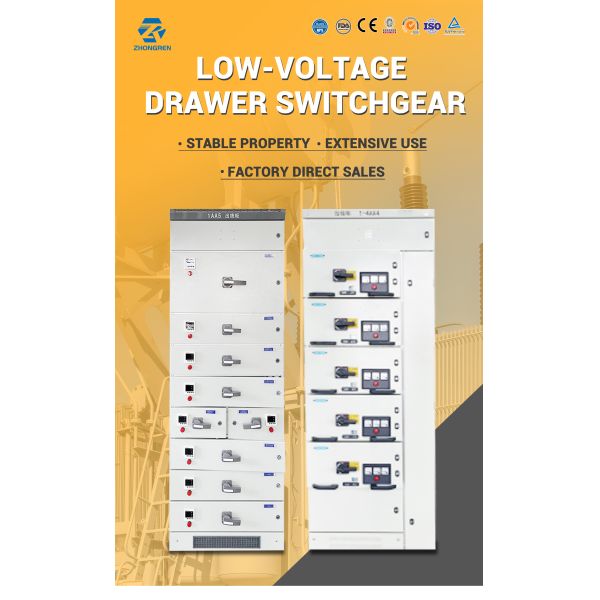

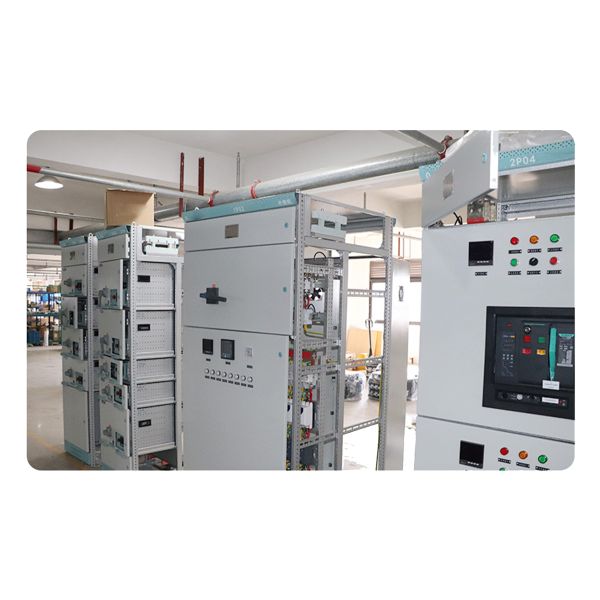

The low-voltage switchgear system adopts a design that isolates power and control cables, facilitating safe operation by staff. The pull-out drawers are equipped with intelligent sensors that can measure current, voltage, and primary insertion temperature.

Low-Voltage Draw-Out Electrical Switchgear Cabinets For Power Distribution Industry

Low-Voltage Draw-Out Electrical Switchgear Cabinets For Power Distribution Industry

Low-Voltage Draw-Out Electrical Switchgear Cabinets For Power Distribution Industry

Insulation Conduit Wiring Method for Auxiliary Circuits: Use wire wrapping tubes to bundle the insulation conduits ■ Use straps.
for fixation ■ Use line troughs for fixation □
Operating Mode of the Switch Cabinet: Manual ■ Electric ■
Installation Mode of the Switch Cabinet: Fixed installation ■ Suspended installation □ Embedded installation □
Installation Location of the Switch Cabinet: Indoor ■ Outdoor □
Material of the Switch Cabinet: Metal ■ Non-metal □ (Others □)

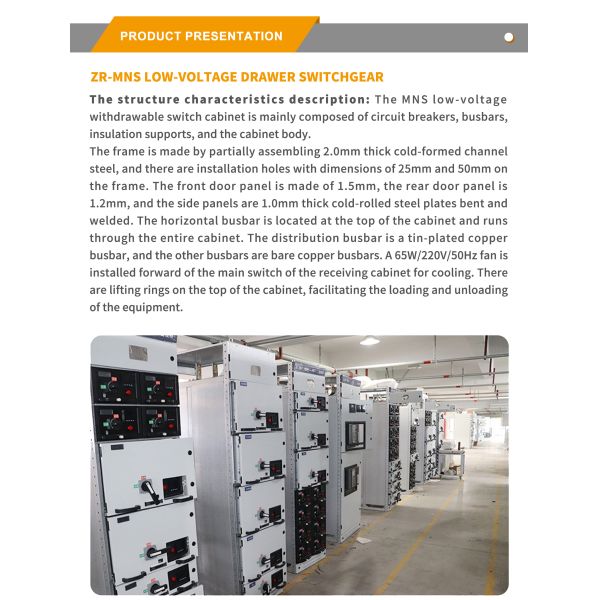

Thickness of the Switch Cabinet Material: Frame 2.0mm, Front door panel 1.5mm, Rear door panel 1.2mm, Side panel 1.0mm.
Electrical Connection Mode of the Functional Unit: Incoming Line Cabinet FFF, Feeder Cabinet FF (without auxiliary circuits), Control Cabinet WWW.

Electrical connection type of the main incoming circuit, the second letter indicates: Electrical connection type of the main outgoing circuit, the third letter indicates: Electrical connection type of the auxiliary circuit.
Note: F - Fixed connection, D - Separable connection, W - Withdrawable connection.)Low-Voltage Draw-Out Electrical Switchgear Cabinets For Power Distribution Industry
Number Component name Type specification Quantity
1 Air Circuit Breaker NA1-4000X 4000A 1
Icu:100kA/Ics:80kA 1
2 moulded case circuit breaker(MCCB) NM1-800S/3300 800A 4
Icu:50kA;Ics:25kA 4
NM1-250S/3300 225A 2
Icu=35kA/Ics=17.5kA 2
NM1-125S/3300 125A 6
Icu=35kA/Ics=17.5kA 6
3 Case MNS Case (Frame panel thickness: 2.0mm, Front door panel thickness: 1.5mm, Rear door panel thickness: 1.2mm, Side panel thickness: 1.0mm) 3
4 draught fan UF-206023BL 65W 1

Cautionary Notice

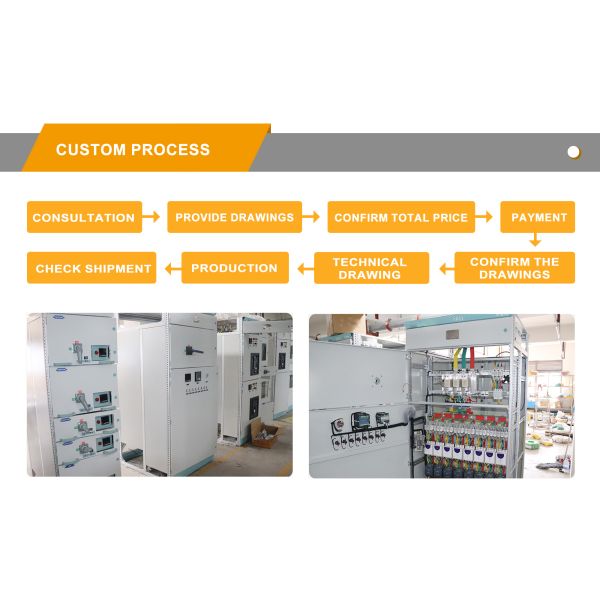

All the products are custom-made. Before placing the order, please communicate in detail with the customer service about your specific requirements (such as specifications, parameters, functions, etc.). We will provide an exclusive solution based on your needs and confirm the price. The production cycle of custom-made products depends on the complexity of the order. Thank you for your understanding and cooperation!
