Product Description

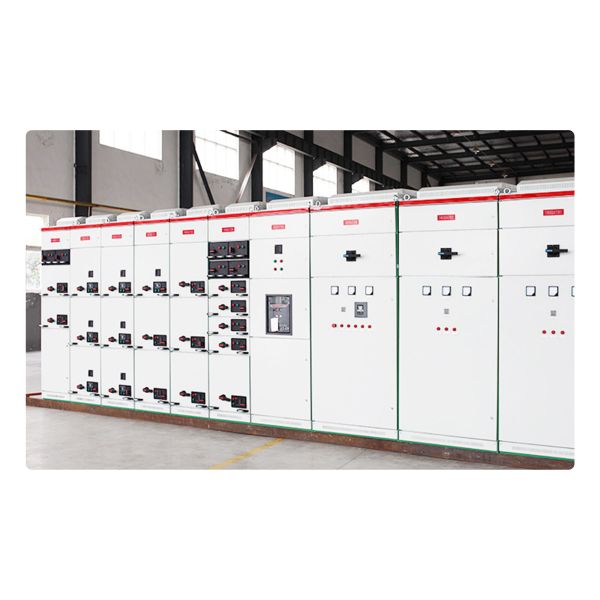

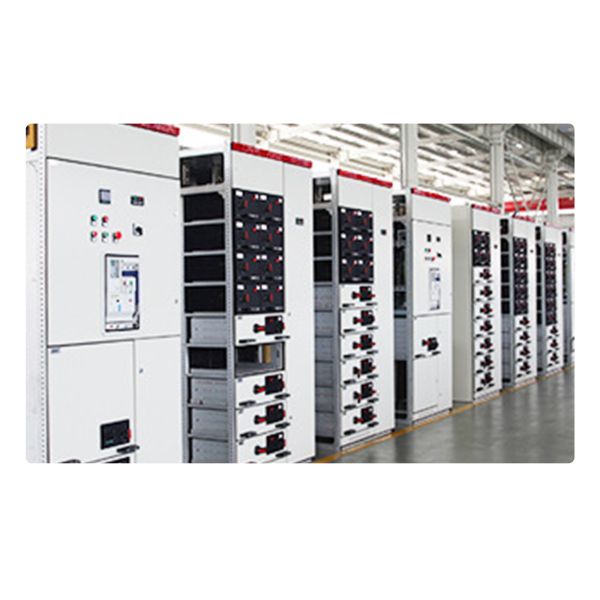

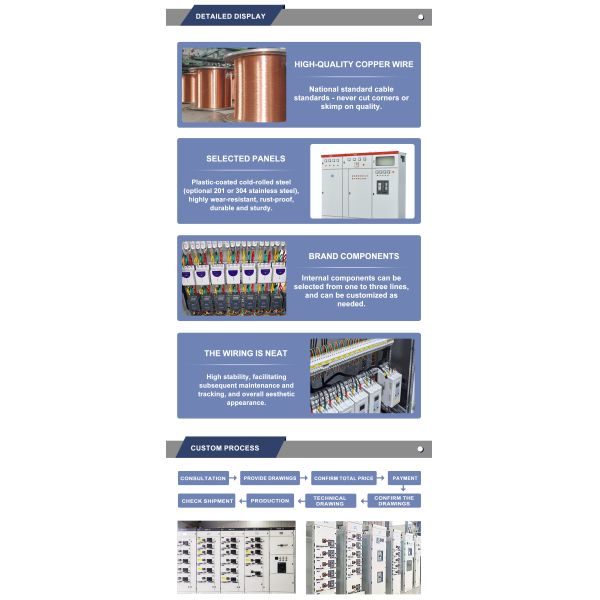

The low-voltage switchgear system adopts a design that isolates power and control cables, facilitating safe operation by staff. The pull-out drawers are equipped with intelligent sensors that can measure current, voltage, and primary insertion temperature.

Auxiliary Circuit Insulation Wire Wiring Method: Use wire ties to bundle the insulation wires ■ Tie the ties fixed ■ Wire trough
fixed □
Voltage Switchgear Cabinet Operating Mode: Manual ■ Electric □
Voltage Switchgear Cabinet Installation Mode: Fixed installation ■ Suspended installation □ Embedded installation □
Voltage Switchgear Cabinet Installation Location: Indoor ■ Outdoor □
Voltage Switchgear Cabinet Shell Material: Metal ■ Non-metal □ (Others □)

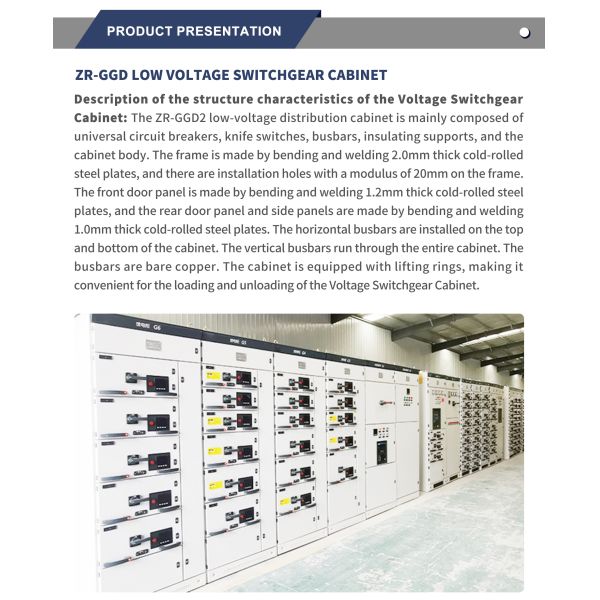

Thickness of Voltage Switchgear Cabinet Shell Material: Frame 2.0mm, Front door panel 1.2mm, Rear door panel 1.0mm, Side panel
1.0mm
Electrical Connection Method of Function Units: FFF
(The first letter represents: the electrical connection type of the main incoming circuit, the second letter represents: the
electrical connection type of the main outgoing circuit, and the third letter represents: the electrical connection type of the
auxiliary circuit. Note: F - Fixed connection, D - Separable connection, W - Pull-out connection.)
Voltage Switchgear Cabinet Dimensions: Cabinet height 2200mm, Cabinet width 800mm, Cabinet depth 600mm

Protection Grounding Measures: On the left rear side of the cabinet, there is a copper plate of 10mm × 60mm with a clear grounding
mark and grounding point. The installation parts in the cabinet are connected to the frame with knurled screws, and the entire
cabinet forms a complete grounding protection circuit.
Main grounding screw: M8
Anti-corrosion measures: The surface of the cabinet is treated with acid pickling, phosphating, high-pressure electrostatic powder
coating process, which has the characteristics of strong adhesion and good texture.
Maximum insulation support spacing along the length of the main busbar: /
Maximum insulation support spacing along the length of the distribution busbar: /
Maximum insulation support spacing along the length of the neutral busbar: 120mm
Maximum mass of the prototype: 350 kg / unit Lift part: Top lifting ring Lift method: Single unit lifting

All the products are custom-made. Before placing the order, please communicate in detail with the customer service about your
specific requirements (such as specifications, parameters, functions, etc.). We will provide an exclusive solution based on your
needs and confirm the price. The production cycle of custom-made products depends on the complexity of the order. Thank you for
your understanding and cooperation!
