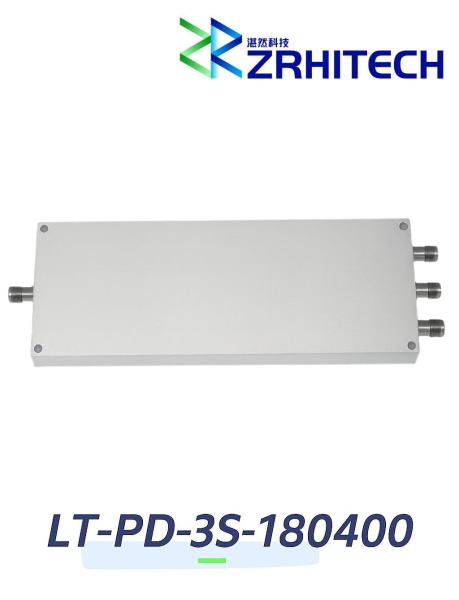

18.0 to 40 GHz 20 Watt LT-PD Series 3-Way Power Divider
18.0 to 40 GHz 20 Watt LT-PD Series 3-Way Power Divider
Specifications
Brand Name :
ZR Hi-tech
Model Number :
LT-PD-3S-180400
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
D/A,D/P,T/T
Delivery Time :
4 weeks
Packaging Details :
carton packing
Description

18.0 to 40 GHz 3-Way Power Divider

Quick Detail:

· 3-Way Power Divider

· Stripline Design

· -55℃~+85℃ operating temperature

· 18.0 to 40 GHz Frequency Range

· Max Power 20 Watt

· Insertion Loss < 2.1 dB

· Isolation > 16 dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-PD-3S-180400 from ZR is a 3-way power divider that operates from 18.0 to 40 GHz and can handle up to 20 Watt (CW) with 2.1 dB max insertion loss and 16 dB min isolation,The package interface uses 2.92mm-Female connectors and is REACH and RoHS compliant.More details for LT-PD-3S-180400 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items

Specification

Conditions

Part Number

LT-PD-3S-180400

Frequency Range

18.0 to 40 GHz

Impedance

50 Ohms

Input VSWR

1.8:1 Max.

Output VSWR

1.8:1 Max.

Insertion Loss

2.1 dB Max.

Excluding Nominal Splitter Loss 3.0dB

Isolation

16 dB Min.

Amplitude Balance

1.4 dB Max.

Phase Balance

16 Degrees Max.

Input Power

20 kW

Connectors

2.92mm-Female

Dimension

38.1x43.2x12.7 mm

Note: for custom specs, please contact us directly.
