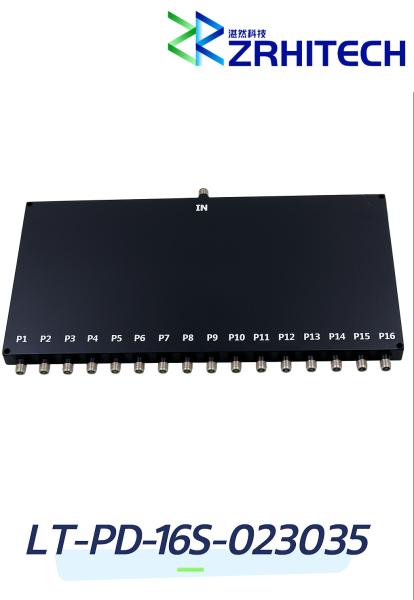

2.3 to 3.5 GHz 30 Watt LT-PD Series 16-way Power Divider
2.3 to 3.5 GHz 30 Watt LT-PD Series 16-way Power Divider
Specifications
Brand Name :
ZR Hi-tech
Model Number :
LT-PD-16S-023035
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
D/A,D/P,T/T
Delivery Time :
4 weeks
Packaging Details :
carton packing
Description

2.3 to 3.5 GHz 16-way Power Divider

Quick Detail:

· 16-Way Power Divider

· Stripline Design

· -40℃~+70℃ operating temperature

· 2.3 to 3.5 GHz Frequency Range

· Max Power 30 Watt

· Insertion Loss < 1.6 dB

· Isolation > 20 dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-PD-16S-023035 from ZR is a 16-way power divider that operates from 2.3 to 3.5 GHz and can handle up to 30 Watt (CW) with 1.6 dB max insertion loss and 20 dB min isolation,The package interface uses SMA-Female connectors and is REACH and RoHS compliant.More details for LT-PD-16S-023035 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items

Specification

Conditions

Part Number

LT-PD-16S-023035

Frequency Range

2.3 to 3.5 GHz

Impedance

50 Ohms

Input VSWR

1.4:1 Max.

Output VSWR

1.3:1 Max.

Insertion Loss

1.6 dB Max.

Excluding Nominal Splitter Loss 3.0dB

Isolation

20 dB Min.

Amplitude Balance

0.8 dB Max.

Phase Balance

8 Degrees Max.

Input Power

30 kW

Connectors

SMA-Female

Dimension

212x67x10 mm

Note: for custom specs, please contact us directly.

Outline Drawing (Unit: mm):
