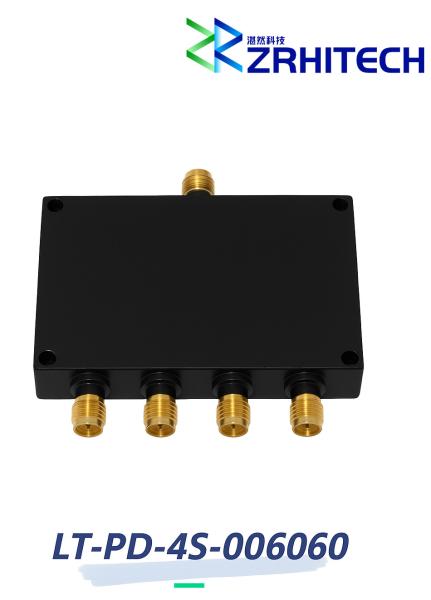

0.6 to 6 GHz 20 Watt LT-PD Series 4-Way Power Divider
0.6 to 6 GHz 20 Watt LT-PD Series 4-Way Power Divider
Specifications
Brand Name :
ZR Hi-tech
Model Number :
LT-PD-4S-006060
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
D/A,D/P,T/T
Delivery Time :
4 weeks
Packaging Details :
carton packing
Description

0.6 to 6 GHz 4-Way Power Divider

Quick Detail:

· 4-Way Power Divider

· Stripline Design

· -55℃~+85℃ operating temperature

· 0.6 to 6 GHz Frequency Range

· Max Power 20 Watt

· Insertion Loss < 2.0 dB

· Isolation > 16 dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-PD-4S-006060 from ZR is a 4-way power divider that operates from 0.6 to 6 GHz and can handle up to 20 Watt (CW) with 2.0 dB max insertion loss and 16 dB min isolation,The package interface uses SMA-Female connectors and is REACH and RoHS compliant.More details for LT-PD-4S-006060 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items

Specification

Conditions

Part Number

LT-PD-4S-006060

Frequency Range

0.6 to 6 GHz

Impedance

50 Ohms

Input VSWR

1.5:1 Max.

Output VSWR

1.5:1 Max.

Insertion Loss

2.0 dB Max.

Excluding Nominal Splitter Loss 3.0dB

Isolation

16 dB Min.

Amplitude Balance

1 dB Max.

Phase Balance

10 Degrees Max.

Input Power

20 kW

Connectors

SMA-Female

Dimension

80x62x10 mm

Note: for custom specs, please contact us directly.

Outline Drawing (Unit: mm):
