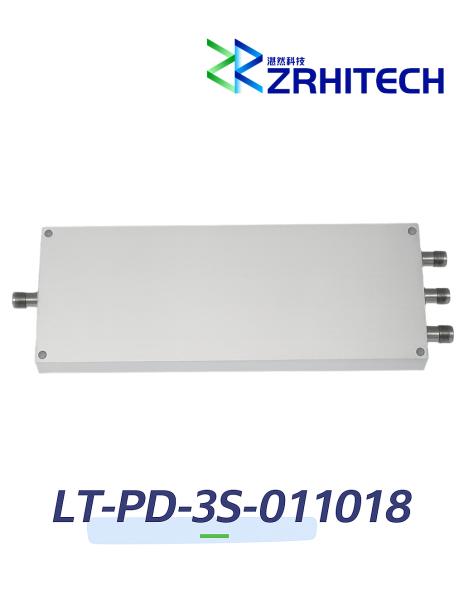

1.1 to 1.8 GHz 0.5 Watt LT-PD Series 3-Way Power Divider
1.1 to 1.8 GHz 0.5 Watt LT-PD Series 3-Way Power Divider
Specifications
Brand Name :
ZR Hi-tech
Model Number :
LT-PD-3S-011018
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
D/A,D/P,T/T
Delivery Time :
4 weeks
Packaging Details :
carton packing
Description
1.1 to 1.8 GHz 0.5 Watt LT-PD Series 3-Way Power Divider
Quick Detail:
  • 3-Way Power Divider
  • Stripline Design
  • -40℃ ~ +70℃ operating temperature
  • 1.1 to 1.8 GHz Frequency Range
  • Max Power 0.5 Watt
  • Insertion Loss < 1.0 dB
  • Isolation > 20 dB
  • CE, RoHS, REACH compliant
  • 1 Year Warranty
Description:

The LT-PD-3S-011018 from ZR is a 3-way power divider that operates from 1.1 to 1.8 GHz and can handle up to 0.5 Watt (CW) with 1.0 dB max insertion loss and 20 dB min isolation. The package interface uses SMA-Female connectors and is REACH and RoHS compliant.

Specifications:
Electrical / Optical Characteristics (Ta=25℃± 3℃)
Items Specification Conditions
Part Number LT-PD-3S-011018
Frequency Range 1.1 to 1.8 GHz
Impedance 50 Ohms
Input VSWR 1.3:1 Max.
Output VSWR 1.3:1 Max.
Insertion Loss 1.0 dB Max. Excluding Nominal Splitter Loss 3.0dB
Isolation 20 dB Min.
Amplitude Balance 1.2 dB Max.
Phase Balance 16 Degrees Max.
Input Power 0.5 kW
Connectors SMA-Female
Dimension 61x42x12 mm
Note: for custom specs, please contact us directly.
Outline Drawing:
1.1 to 1.8 GHz 0.5 Watt LT-PD Series 3-Way Power Divider
Unit: mm
