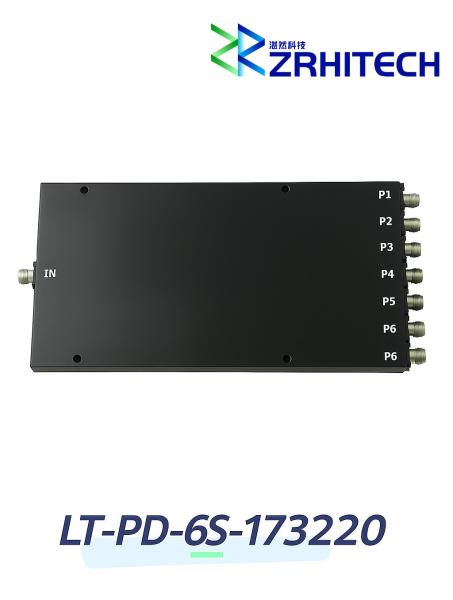

17.3 to 22 GHz 20 Watt LT-PD Series 6-Way Power Divider
17.3 to 22 GHz 20 Watt LT-PD Series 6-Way Power Divider
Specifications
Brand Name :
ZR Hi-tech
Model Number :
LT-PD-6S-173220
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
D/A,D/P,T/T
Delivery Time :
4 weeks
Packaging Details :
carton packing
Description

17.3 to 22 GHz 6-Way Power Divider

Quick Detail:

· 6-Way Power Divider

· Stripline Design

· -55℃~+85℃ operating temperature

· 17.3 to 22 GHz Frequency Range

· Max Power 20 Watt

· Insertion Loss < 1.9 dB

· Isolation > 17 dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-PD-6S-173220 from ZR is a 6-way power divider that operates from 17.3 to 22 GHz and can handle up to 20 Watt (CW) with 1.9 dB max insertion loss and 17 dB min isolation,The package interface uses SMA-Female connectors and is REACH and RoHS compliant.More details for LT-PD-6S-173220 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items

Specification

Conditions

Part Number

LT-PD-6S-173220

Frequency Range

17.3 to 22 GHz

Impedance

50 Ohms

Input VSWR

1.6:1 Max.

Output VSWR

1.6:1 Max.

Insertion Loss

1.9 dB Max.

Excluding Nominal Splitter Loss 3.0dB

Isolation

17 dB Min.

Amplitude Balance

0.8 dB Max.

Phase Balance

10 Degrees Max.

Input Power

20 kW

Connectors

SMA-Female

Dimension

45.7x88.9x12.7 mm

Note: for custom specs, please contact us directly.

Outline Drawing (Unit: mm):

17.3 to 22 GHz 20 Watt LT-PD Series 6-Way Power Divider
