Box Integrated Waste Water Prefabricated Sewage Treatment Plant 53m²
Box Integrated Waste Water Prefabricated Sewage Treatment Plant 53m²
Specifications
Brand Name :
Zhongqiao Enlightenment
Model Number :
MBR-4
Certification :
SGS,ISO
Place of Origin :
Shandong,China
MOQ :
1Set
Price :
5200USD-15000USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100Set Per Month
Delivery Time :
7-15 working days
Packaging Details :
Container or customized
Water treatment capacity (m³/d) :
100m³/d
Outline dimension :
9000×2250×2500mm
Weight of equipment :
6.15t
Running weight :
56.78t
Installed power :
11.73kW
Power consumption :
6.86kW
Cable specifications :
4mm²
Floor space :
53m²
Description

Domestic Waste Water Treatment Equipment Zhong Qiao Enlightenment

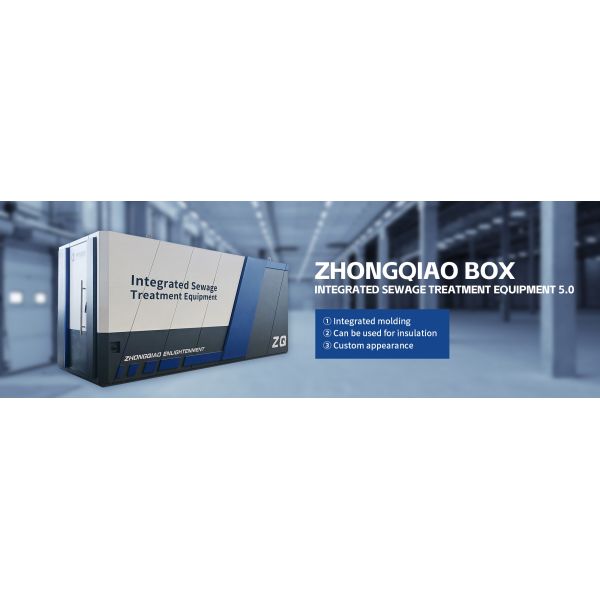

Zhong Qiao Box Integrated Sewage Treatment Equipment is a high-efficiency, energy-saving, and environmentally friendly sewage treatment equipment independently developed and produced by Shandong Zhong Qiao Enlightenment Environmental Protection Equipment Co., Ltd. This equipment integrates multiple functions such as sewage treatment, sludge-water separation, and disinfection, and is widely used in the treatment of various industrial and domestic sewage.

Box Integrated Waste Water Prefabricated Sewage Treatment Plant 53m²

Internal Details

The decorative panels are formed from cold-rolled steel sheets through CNC bending in one step. The anti-corrosion treatment uses powder electrostatic spraying, followed by melting, leveling, and curing at 200 degrees Celsius, resulting in a smooth and bright appearance.

The decorative panels are reinforced with square steel supports between the panels and the main body. They can be equipped with electric heating and insulation materials like rubber-plastic or rock wool, ensuring normal operation even in the cold regions of northern areas.

ZhongqiaoBox integrated sewage treatment equipment covers a treatment capacity of 5–5,000 tons per day, and can be flexibly adapted to different scenarios through single unit, parallel connection of multiple units, or modular expansion.

1. Standard Treatment Capacity (Single Unit / Basic Module)
  • Small scale (5–50 tons/day): Rural sewage, small hospitals, homestays, emergency sites
  • Medium scale (50–500 tons/day): Residential quarters, towns, small and medium-sized factories, scenic spots
  • Large scale (500–5,000 tons/day): Industrial parks, centralized treatment, large emergency projects
2. Expansion Capacity (Modular Combination)
  • Adopts expandable container / skid mounted modules, with a single unit of 10–100 tons/day.
  • Multiple units in parallel can achieve flexible expansion to 20–500 tons/day.

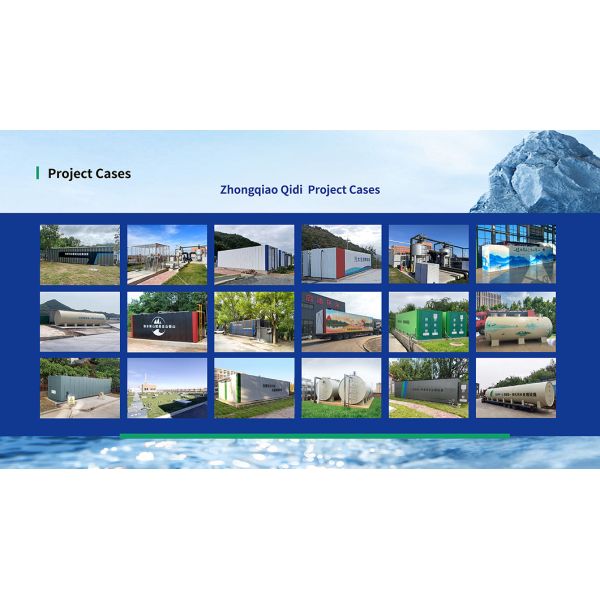

  • Project examples:
    • Saudi Arabia project: 4 units in parallel = 1,200 tons/day
    • Tianjin / Xinjiang projects: up to 2,000 tons/day
3. Treatment Efficiency & Process
  • Main processes: AO, AO+MBR, stably removing COD, ammonia nitrogen, total nitrogen, total phosphorus.
  • Effluent standards: Level 1A / Level 1B, reclaimed water reuse, local discharge standards.
  • Strong shock resistance: adapts to water quality fluctuations, low sludge yield, stable operation.
4. Selection by Scenario
  • Rural areas / small hospitals: 5–50 tons/day
  • Residential quarters / towns: 50–200 tons/day
  • Industrial parks / large emergency: 500–2,000 tons/day
  • Ultra-large scale: 2,000–5,000 tons/day (multi-module combination)
Box Integrated Waste Water Prefabricated Sewage Treatment Plant 53m²
Box Integrated Waste Water Prefabricated Sewage Treatment Plant 53m²
Specification
Model Treatment
Capacity
(m³/day)		 Dimensions
(L×W×H)(mm)		 Equipment
Weight

(t)		 Operating
Weight

(t)		 Total
Installed
Power
(kw)		 Operating

Power
(kw)		 Operating

Cost
(CNY/ton)		 Operating

Cost
(CNY/day)		 Cable
Specifications
(mm²)
WSZ-0.25
5
2,340×1,200×1,660
1.33
5.32
3.84
2.72
3.2
16.01
1.5
WSZ-0.5
10
2,350×1,518×2,160
1.72
9.42
3.84
2.72
1.6
16.01
1.5
WSZ-1
20
4,831×1,518×2,160
2.61
18.44
4.6
3.1
0.92
18.47
2.5
WSZ-1.25
30
4,705×2,030×2,160
3.09
23.7
6.1
3.85
0.78
23.33
2.5
WSZ-1.67
40
6,125×2,030×2,160
3.68
30.53
6.1
3.85
0.68
27.22
2.5
WSZ-2
50
6,125×2,030×2,660
4.25
37.32
6.1
3.85
0.54
27.22
2.5
WSZ-2.5
60
6,596×2,262×2,660
4.78
44.47
7.5
4.55
0.54
32.51
4
WSZ-3
70
7,659×2,262×2,660
5.3
51.38
7.5
4.55
0.46
32.51
4
WSZ-3.5
80
8,722×2,262×2,660
5.81
58.29
9.1
5.35
0.48
38.56
4
WSZ-4
100
10,850×2,262×2,660
6.85
72.14
9.1
5.35
0.44
44.06
4
WSZ-5
120
12,975×2,262×2,660
8.16
86.23
14.85
8.6
0.62
74.3
6
WSZ-6
150
11,215×3,060×2,860
9.3
107.45
14.85
8.6
0.5
74.3
6
WSZ-7
170
12,631×3,060×2,860
10.15
120.69
14.85
8.6
0.44
74.3
6
WSZ-8
200
15,469×3,060×2,860
15.72
146.29
15.55
9.3
0.41
82.37
6
WSZ-10
250
18,884×3,060×2,860
(in two groups)
17.71
182.98
21.8
12.8
0.43
108.29
10
WSZ-12.5
300
22,426×3,060×2,860
(in two groups)
20.25
216.51
21.8
12.8
0.36
108.29
10
WSZ-15
360
26,682×3,060×2,860
(in two groups)
25.38
258.89
30.9
17.7
0.41
146.59
10
WSZ-17
400
30,450×3,060×2,860
(in three groups)
28.13
294.61
30.9
17.7
0.37
146.59
10
WSZ-20
500
36,834×3,060×2,860
(in three groups)
33.74
356.09
30.9
17.7
0.29
146.59
10
