Intelligent Integrated Modular Wastewater Treatment Plant Sludge Dewatering Septic Tank
Intelligent Integrated Modular Wastewater Treatment Plant Sludge Dewatering Septic Tank
Specifications
Brand Name :
Zhongqiao Enlightenment
Model Number :
MBR-4
Certification :
SGS,ISO
Place of Origin :
Shandong,China
MOQ :
1Set
Price :
5200USD-15000USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100Set Per Month
Delivery Time :
7-15 working days
Packaging Details :
Container or customized
Model :
Wsz-0.25
Treatment Capacity (M³/D) :
5
Dimensions (L×W×H) (mm) :
2500×1000×1500
Operating Weig :
4.72
Operating Cost (Cny/Day) :
16.1
Operating Power :
2.72
Floor Area :
16
Weight (T) :
0.97
Total Installed Power (Kw) :
3.84
Water treatment capacity (m³/d) :
100m³/d
Outline dimension :
9000×2250×2500mm
Weight of equipment :
6.15t
Running weight :
56.78t
Installed power :
11.73kW
Power consumption :
6.86kW
Cable specifications :
4mm²
Floor space :
53m²
Description

Intelligent Integrated Sewage Treatment Equipment, Sludge Dewatering, Septic Tank

Zhong Qiao Box Integrated Sewage Treatment Equipment

Zhong Qiao Box Integrated Sewage Treatment Equipment is a high-efficiency, energy-saving, and environmentally friendlysewage treatment equipment independently developed and produced by Shandong Zhong Qiao Enlightenment EnvironmentalProtection Equipment Co., Ltd. This equipment integrates multiple functions such as sewage treatment, sludge-waterseparation, and disinfection, and is widely used in the treatment of various industrial and domestic sewage.

Intelligent Integrated Modular Wastewater Treatment Plant Sludge Dewatering Septic Tank

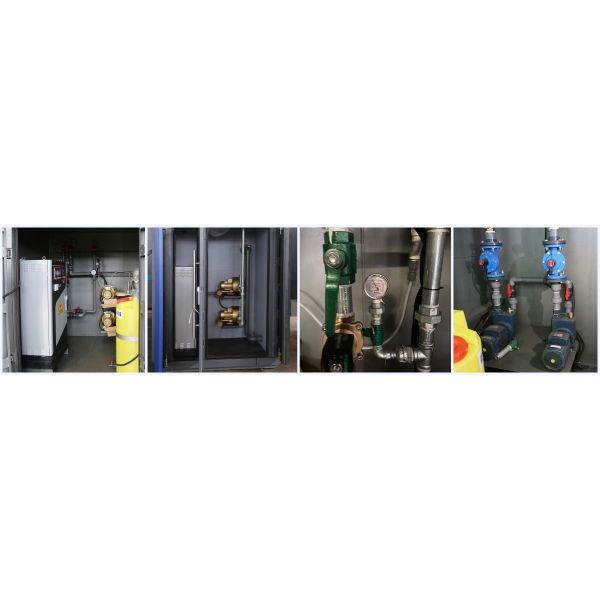

Internal Details

The decorative panels are formed from cold-rolled steel sheets through CNC bending in one step. The anti-corrosion treatmentuses powder electrostatic spraying, followed by melting, leveling, and curing at 200 degrees Celsius, resulting in a smooth and brightappearance.
The decorative panels are reinforced with square steel supports between the panels and the main body. They can be equippedwith electric heating and insulation materials like rubber-plastic or rock wool, ensuring normal operation even in the cold regions ofnorthern areas.

Intelligent Integrated Modular Wastewater Treatment Plant Sludge Dewatering Septic Tank

Specification
Model Treatment
Capacity
(m³/day)		 Dimensions
(L*W*H)(mm)		 Equipment
Weight
(t)		 Operating
Weight
(t)		 Total
Installed
Power
(kw)		 Operating
Power
(kw)		 Operating
Cost
(CNY/ton)		 Operating
Cost
(CNY/day)		 Cable
Specifications
(mm²)
WSZ-0.25 5 2,340*1,200*1,660 1.33 5.32 3.84 2.72 3.2 16.01 1.5
WSZ-0.5 10 2,350*1,518*2,160 1.72 9.42 3.84 2.72 1.6 16.01 1.5
WSZ-1 20 4,831*1,518*2,160 2.61 18.44 4.6 3.1 0.92 18.47 2.5
WSZ-1.25 30 4,705*2,030*2,160 3.09 23.7 6.1 3.85 0.78 23.33 2.5
WSZ-1.67 40 6,125*2,030*2,160 3.68 30.53 6.1 3.85 0.68 27.22 2.5
WSZ-2 50 6,125*2,030*2,660 4.25 37.32 6.1 3.85 0.54 27.22 2.5
WSZ-2.5 60 6,596*2,262*2,660 4.78 44.47 7.5 4.55 0.54 32.51 4
WSZ-3 70 7,659*2,262*2,660 5.3 51.38 7.5 4.55 0.46 32.51 4
WSZ-3.5 80 8,722*2,262*2,660 5.81 58.29 9.1 5.35 0.48 38.56 4
WSZ-4 100 10,850*2,262*2,660 6.85 72.14 9.1 5.35 0.44 44.06 4
WSZ-5 120 12,975*2,262*2,660 8.16 86.23 14.85 8.6 0.62 74.3 6
WSZ-6 150 11,215*3,060*2,860 9.3 107.45 14.85 8.6 0.5 74.3 6
WSZ-7 170 12,631*3,060*2,860 10.15 120.69 14.85 8.6 0.44 74.3 6
WSZ-8 200 15,469*3,060*2,860 15.72 146.29 15.55 9.3 0.41 82.37 6
WSZ-10 250 18,884*3,060*2,860
(in two groups)		 17.71 182.98 21.8 12.8 0.43 108.29 10
WSZ-12.5 300 22,426*3,060*2,860
(in two groups)		 20.25 216.51 21.8 12.8 0.36 108.29 10
WSZ-15 360 26,682*3,060*2,860
(in two groups)		 25.38 258.89 30.9 17.7 0.41 146.59 10
WSZ-17 400 30,450*3,060*2,860
(in three groups)		 28.13 294.61 30.9 17.7 0.37 146.59 10
WSZ-20 500 36,834*3,060*2,860
(in three groups)		 33.74 356.09 30.9 17.7 0.29 146.59 10
Note:Custom non-standard sizes are available.The dimensions in the table are for reference only;actual dimensions will prevail.
Company Profile

Shandong Zhong Qiao Enlightenment Environmental Protection Equipment Co., Ltd., founded in 2013, is a professional integrated wastewater treatment equipment manufacturer. With two large production bases covering over 40,000 square meters and an annual production capacity of more than 800 integrated units, the company is a trustworthy high-endcontract manufacturer.
The integrated equipment OEM sector is equipped with advanced machinery, including large bending machines, shearing machines, plate rolling machines, plipe rolling machines, laser cutting machines, laser pipe cutting machines, automatic welding machines, and more. Additionally. the company boasts a team of high-level technical experts, including process designers, industrial designers, mechanical engineers, and environmental engineers.
In the new material (PPH) OEM sector, the company operates advanced manufacturing lines, such as an integrated PPH tank production line, MBBR production line, and PP welding rod production line. It also possesses cutting-edge plastic product processing equipment, including large-scale automatic horizontal and vertical welding machines, CNC engraving machines bending machines, butt welding machines, and cutting machines. By leveraging the unique characteristics of new materialtanks and improving the production process, along with the use of self-produced MBBR filers, the company has significantly reduced costs and enhanced the competitiveness of its clients.
