Hospital Containerized Sewage Treatment Plant 50m³/D Water Treatment
Hospital Containerized Sewage Treatment Plant 50m³/D Water Treatment
Hospital Containerized Sewage Treatment Plant 50m³/D Water Treatment
Hospital Containerized Sewage Treatment Plant 50m³/D Water Treatment
Specifications
Brand Name :
Zhongqiao Enlightenment
Model Number :
MBR -2
Certification :
SGS,ISO
Place of Origin :
Shandong,China
MOQ :
1set
Price :
3600USD-5400USD
Payment Terms :
L/C,D/P,D/A,T/T,Western Union
Supply Ability :
120Set Per Month
Delivery Time :
7-30 working days
Packaging Details :
container or customized
Water treatment capacity :
50m³/d
Outline dimension :
6360×2040×2160mm
Weight of equipment :
3.55t
Running weight :
31.57t
Installed power :
7.87kW
Power consumption :
4.55kW
Cable specifications :
4mm²
Floor space :
39.97m²
Description
Hospital Water Treatment Systems, Container Integrated Waste Water Treatment Equipment
Product Overview

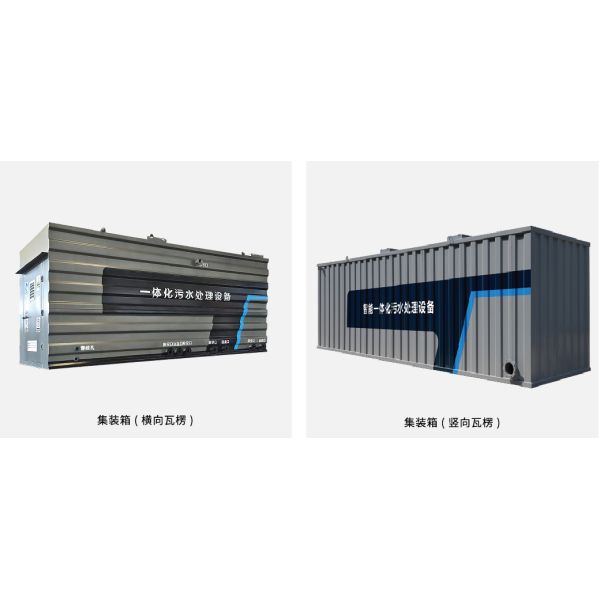

Container integrated sewage treatment equipment, also known as corrugated board integrated sewage treatment equipment, refers to equipment whose external steel plates are all made of corrugated board, which has the characteristics of stylish and exquisite appearance, high strength, etc. Our company has a 10mm tile press, which can be used for vertical and horizontal corrugated container type.

Hospital Containerized Sewage Treatment Plant 50m³/D Water Treatment

Technical Characteristics
  • The appearance relies on corrugated board, which has the characteristics of beauty and high strength；
  • The size is not limited to the standard container size and can be customized with flexible methods；
  • Processing units can be designed as single or multiple groups, and can be customized according to site conditions；

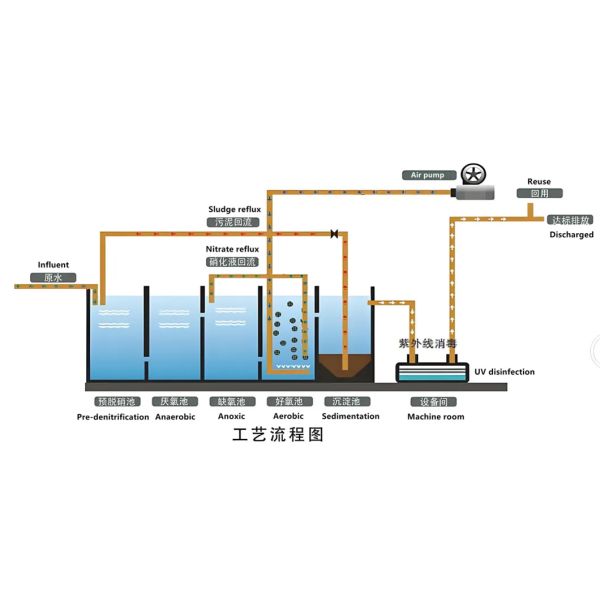

  • Unrestricted by process limitations, multiple processes such as AO, A2O, AO+MBR, MBBR, etc. can be used；
  • It can be buried underground or above ground；
  • Can choose whether to bring equipment room/regulating pool.
Hospital Containerized Sewage Treatment Plant 50m³/D Water Treatment
Inlet and outlet water standards
Name Inlet Water Main Indicators Grade A Effluent Indicator Grade B effluent indicator
Chemical Oxygen Demand (mg/L) ≤500 ≤50 ≤60
Biochemical Oxygen Demand (mg/L) ≤350 ≤10 ≤20
Ammonia nitrogen (mg/L) ≤45 ≤5(8) ≤15(8)
pH 6.0-9.0 6.0-9.0 6.0-9.0
Suspended solids (mg/L) ≤270 ≤10 ≤20
Total phosphorus (mg/L) ≤5 ≤0.5 ≤1
Creo mechanical simulation modeling

Comprehensive mechanical and dynamic modeling, fully independent design and construction, Zhongqiao Enlightenment leverages years of experience in integrated sewage treatment equipment research and development, production, and sewage plant design processes to optimize our process structure through 3D modeling, mechanical analysis, and fluid dynamics analysis of customer projects.

Creo mechanical simulation software solves complex mechanical pressure bearing practical scenarios and provides scientific and refined analysis of equipment structure. It optimizes design based on user water quality, ensuring high reliability and stability of the equipment.

Equipment Technical Parameters
First level A standard technical parameters
model Water treatment capacity (m³/d) outline dimension weight of
equipment		 running
weight		 installed power Power
consumption		 running expense running expense Cable specifications floor space
L x W x H (mm) (t) (t) (kW) (kW) (Yuan/ton of water) (CNY/day) (mm²) (m²)
MBR-0.25 5 2720×1090×2160 1.18 7.58 5.365 3.245 4.08 20.41 2.5 19.38
MBR-0.5 10 3440×1090×2160 1.35 9.45 5.365 3.245 2.04 20.41 2.5 20.75
MBR-1 20 3890×1610×2160 1.83 15.36 7.165 4.145 1.14 22.87 4 24.26
MBR-1.25 30 5340×1610×2160 2.23 20.80 7.27 4.25 0.92 27.73 4 28.10
MBR-1.67 40 4910×2040×2160 2.45 24.09 7.87 4.55 0.87 34.78 4 31.02
MBR-2 50 6360×2040×2160 3.55 31.57 7.87 4.55 0.70 34.78 4 39.97
MBR-2.5 60 6360×2040×2660 4.05 38.56 7.87 4.55 0.67 40.07 4 39.97
MBR-3 70 7090×2040×2660 4.36 42.83 8.63 5.31 0.57 40.07 4 42.84
MBR-3.5 80 6890×2540×2660 4.91 51.46 10.23 6.11 0.58 46.12 4 48.63
MBR-4 100 8340×2540×2660 5.60 61.95 11.73 6.86 0.60 59.62 4 53.93
MBR-5 120 9060×2540×2860 6.21 72.03 13.73 7.86 0.76 91.58 6 58.51
MBR-6 150 11230×2540×2860 7.62 89.20 18.82 11.07 0.61 91.58 6 67.40
MBR-7 170 10510×2930×2860 8.04 96.11 18.82 11.07 0.54 91.58 6 70.29
MBR-8 200 12680×2930×2860 9.19 115.45 21.02 12.57 0.51 101.26 10 80.65
MBR-10 250 15580×2930×2860 11.16 141.72 26.07 15.27 0.51 127.18 10 101.15
MBR-12.5 300 9780×2930×2860
(in two groups)		 14.49 178.40 26.25 15.45 0.45 133.63 10 117.81
MBR-15 360 11230×2930×2860
(in two groups)		 16.02 204.23 34.65 20.35 0.48 171.94 16 131.31
MBR-17 400 12680×2930×2860
(in two groups)		 17.56 230.07 35.85 21.15 0.45 179.31 16 144.30
MBR-20 500 15580×2930×2860
(in two groups)		 21.45 282.56 39.45 22.95 0.36 179.31 16 171.30

Hospital Containerized Sewage Treatment Plant 50m³/D Water Treatment

Shandong Zhongqiao Enlightenment Environmental Protection Equipment Co., Ltd. was founded in 2013. As a national high-tech enterprise specialized in the R&D, design, production and manufacturing of integrated wastewater treatment equipment, it has two production bases covering a total area of more than 40,000 square meters with an annual output of over 800 sets of integrated wastewater treatment equipment, making it a trustworthy manufacturer of high-end environmental protection equipment.
