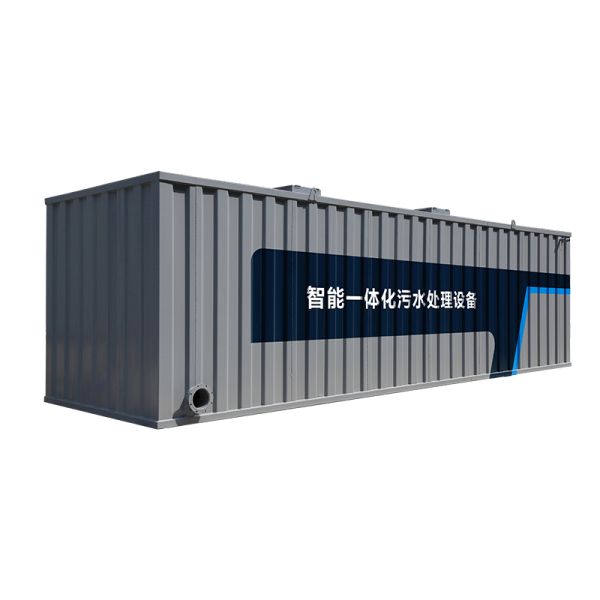

Skid Mounted Integrated Containerized Sewage Treatment Plant Equipment MBR System For Municipal Industrial Use
Skid Mounted Integrated Containerized Sewage Treatment Plant Equipment MBR System For Municipal Industrial Use
Skid Mounted Integrated Containerized Sewage Treatment Plant Equipment MBR System For Municipal Industrial Use
Skid Mounted Integrated Containerized Sewage Treatment Plant Equipment MBR System For Municipal Industrial Use
Specifications
Brand Name :
Zhongqiao Enlightenment
Model Number :
MBR-2
Certification :
SGS
Place of Origin :
Shandong,China
MOQ :
1set
Price :
3600USD-5400USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
120Set Per Month
Delivery Time :
15-30 working days
Packaging Details :
container or customized
Water treatment capacity :
50m³/d
Outline dimension :
6360×2040×2160mm
Weight of equipment :
3.55t
Running weight :
31.57t
Installed power :
7.87kW
Power consumption :
4.55kW
Cable specifications :
4mm²
Floor space :
39.97m²
Description
Skid-mounted Container Integrated Sewage Treatment Equipment MBR System for Municipal/Industrial Use
Product Overview

Container integrated sewage treatment equipment, also known as corrugated board integrated sewage treatment equipment, refers to equipment whose external steel plates are all made of corrugated board, which has the characteristics of stylish and exquisite appearance, high strength, etc. Our company has a 10mm tile press, which can be used for vertical and horizontal corrugated container type.

Skid Mounted Integrated Containerized Sewage Treatment Plant Equipment MBR System For Municipal Industrial Use

Technical Characteristics
  • The appearance relies on corrugated board, which has the characteristics of beauty and high strength；
  • The size is not limited to the standard container size and can be customized with flexible methods；
  • Processing units can be designed as single or multiple groups, and can be customized according to site conditions；
  • Unrestricted by process limitations, multiple processes such as AO, A2O, AO+MBR, MBBR, etc. can be used；
  • It can be buried underground or above ground；
  • Can choose whether to bring equipment room/regulating pool.

Skid Mounted Integrated Containerized Sewage Treatment Plant Equipment MBR System For Municipal Industrial Use

Inlet and outlet water standards
Name Inlet Water Main Indicators Grade A Effluent Indicator Grade B effluent indicator
Chemical Oxygen Demand (mg/L) ≤500 ≤50 ≤60
Biochemical Oxygen Demand (mg/L) ≤350 ≤10 ≤20
Ammonia nitrogen (mg/L) ≤45 ≤5(8) ≤15(8)
pH 6.0-9.0 6.0-9.0 6.0-9.0
Suspended solids (mg/L) ≤270 ≤10 ≤20
Total phosphorus (mg/L) ≤5 ≤0.5 ≤1
Creo mechanical simulation modeling

Comprehensive mechanical and dynamic modeling, fully independent design and construction, Zhongqiao Enlightenment leverages years of experience in integrated sewage treatment equipment research and development, production, and sewage plant design processes to optimize our process structure through 3D modeling, mechanical analysis, and fluid dynamics analysis of customer projects.

Creo mechanical simulation software solves complex mechanical pressure bearing practical scenarios and provides scientific and refined analysis of equipment structure. It optimizes design based on user water quality, ensuring high reliability and stability of the equipment.

Skid Mounted Integrated Containerized Sewage Treatment Plant Equipment MBR System For Municipal Industrial Use

Skid Mounted Integrated Containerized Sewage Treatment Plant Equipment MBR System For Municipal Industrial Use

Equipment Technical Parameters
First level A standard technical parameters
model Water treatment capacity (m³/d) outline dimension weight of
equipment		 running
weight		 installed power Power
consumption		 running expense running expense Cable specifications floor space
L x W x H (mm) (t) (t) (kW) (kW) (Yuan/ton of water) (CNY/day) (mm²) (m²)
MBR-0.25 5 2720×1090×2160 1.18 7.58 5.365 3.245 4.08 20.41 2.5 19.38
MBR-0.5 10 3440×1090×2160 1.35 9.45 5.365 3.245 2.04 20.41 2.5 20.75
MBR-1 20 3890×1610×2160 1.83 15.36 7.165 4.145 1.14 22.87 4 24.26
MBR-1.25 30 5340×1610×2160 2.23 20.80 7.27 4.25 0.92 27.73 4 28.10
MBR-1.67 40 4910×2040×2160 2.45 24.09 7.87 4.55 0.87 34.78 4 31.02
MBR-2 50 6360×2040×2160 3.55 31.57 7.87 4.55 0.70 34.78 4 39.97
MBR-2.5 60 6360×2040×2660 4.05 38.56 7.87 4.55 0.67 40.07 4 39.97
MBR-3 70 7090×2040×2660 4.36 42.83 8.63 5.31 0.57 40.07 4 42.84
MBR-3.5 80 6890×2540×2660 4.91 51.46 10.23 6.11 0.58 46.12 4 48.63
MBR-4 100 8340×2540×2660 5.60 61.95 11.73 6.86 0.60 59.62 4 53.93
MBR-5 120 9060×2540×2860 6.21 72.03 13.73 7.86 0.76 91.58 6 58.51
MBR-6 150 11230×2540×2860 7.62 89.20 18.82 11.07 0.61 91.58 6 67.40
MBR-7 170 10510×2930×2860 8.04 96.11 18.82 11.07 0.54 91.58 6 70.29
MBR-8 200 12680×2930×2860 9.19 115.45 21.02 12.57 0.51 101.26 10 80.65
MBR-10 250 15580×2930×2860 11.16 141.72 26.07 15.27 0.51 127.18 10 101.15
MBR-12.5 300 9780×2930×2860
(in two groups)		 14.49 178.40 26.25 15.45 0.45 133.63 10 117.81
MBR-15 360 11230×2930×2860
(in two groups)		 16.02 204.23 34.65 20.35 0.48 171.94 16 131.31
MBR-17 400 12680×2930×2860
(in two groups)		 17.56 230.07 35.85 21.15 0.45 179.31 16 144.30
MBR-20 500 15580×2930×2860
(in two groups)		 21.45 282.56 39.45 22.95 0.36 179.31 16 171.30
