Food Processing Carbon Steel Flat Plate Integrated Sewage Treatment Equipment 100m³/D
Food Processing Carbon Steel Flat Plate Integrated Sewage Treatment Equipment 100m³/D
Food Processing Carbon Steel Flat Plate Integrated Sewage Treatment Equipment 100m³/D
Food Processing Carbon Steel Flat Plate Integrated Sewage Treatment Equipment 100m³/D
Food Processing Carbon Steel Flat Plate Integrated Sewage Treatment Equipment 100m³/D
Food Processing Carbon Steel Flat Plate Integrated Sewage Treatment Equipment 100m³/D
Specifications
Brand Name :
Zhongqiao Enlightenment
Model Number :
WSZ-4
Certification :
SGS
Place of Origin :
Shandong,China
MOQ :
1 Set
Price :
2480USD-16800USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
160Set Per Month
Delivery Time :
7-30 working days
Packaging Details :
container or customized
Water treatment capacity (m³/d) :
100m³/d
Outline dimension :
10000×2500×2500mm
Weight of equipment :
8.30t
Running weight :
72.98t
Installed power :
6.26kW
Power consumption :
3.69kW
Cable specifications :
4mm²
Floor space :
52m²
Description

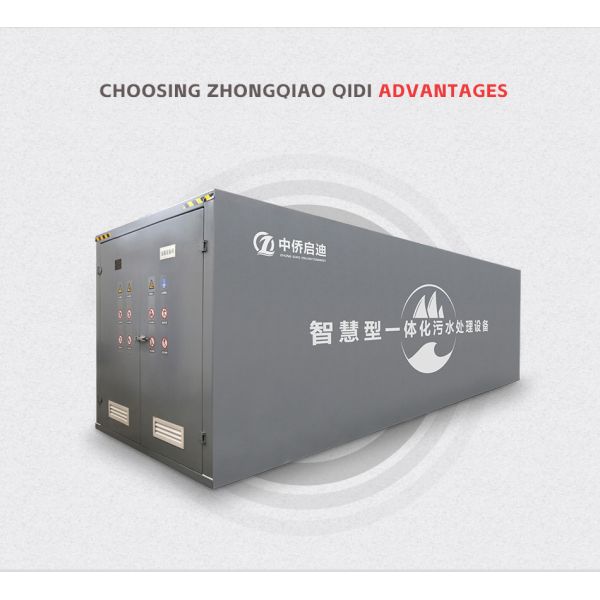

Food Processing Carbon Steel Flat Plate Integrated Sewage Treatment Equipment

Product Overview

Our Carbon Steel Flat Plate Integrated Sewage Treatment Equipment is a reliable and cost-efficient solution for industrial wastewater treatment. Built with high-strength Q235B carbon steel and multi-layer anti-corrosion protection, the equipment features excellent durability, stability, and long service life even in harsh working environments.

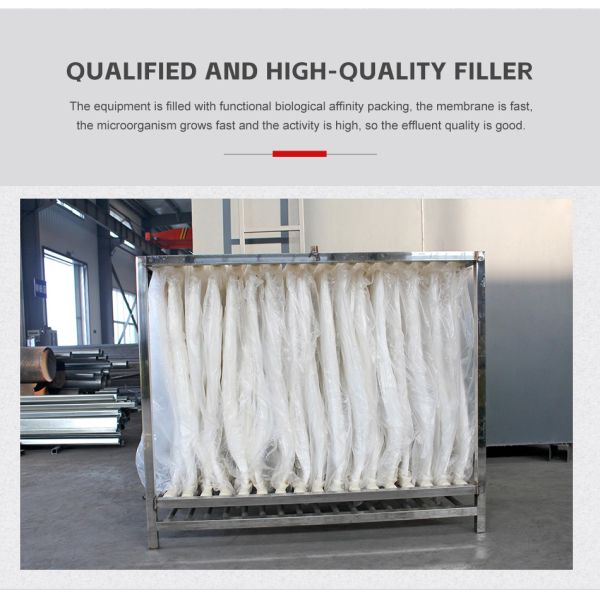

The compact all-in-one design combines pretreatment, biological reaction, sedimentation, and disinfection in a single unit, reducing land occupation and simplifying on-site installation. Supported by advanced AO/A²O/MBR processes, it achieves high removal rates of COD, BOD, ammonia nitrogen and total phosphorus, ensuring stable effluent quality that meets strict discharge standards.

Equipped with an intelligent PLC control system, the equipment operates automatically with low energy consumption and minimal maintenance. It is highly customizable to fit various industrial scenarios and different treatment capacities. With strong structure, stable performance, easy operation and low operating cost, this equipment is an ideal choice for decentralized industrial wastewater treatment projects worldwide.

Food Processing Carbon Steel Flat Plate Integrated Sewage Treatment Equipment 100m³/D

Food Processing Carbon Steel Flat Plate Integrated Sewage Treatment Equipment 100m³/D

Food Processing Carbon Steel Flat Plate Integrated Sewage Treatment Equipment 100m³/D

Food Processing Carbon Steel Flat Plate Integrated Sewage Treatment Equipment 100m³/D

Food Processing Carbon Steel Flat Plate Integrated Sewage Treatment Equipment 100m³/D

Food Processing Carbon Steel Flat Plate Integrated Sewage Treatment Equipment 100m³/D

Technical Specifications
model Water treatment capacity (m³/d) outline dimension weight of
equipment		 running
weight		 installed power Power
consumption		 running expense running expense Cable specifications floor space
L x W x H (mm) (t) (t) (kW) (kW) (Yuan/ton of water) (CNY/day) (mm²) (m²)
WSZ-0.25 5 2500×1000×1500 0.97 4.72 4.08 2.41 3.20 16.01 1.5 19
WSZ-0.5 10 2500×1500×2000 1.65 9.15 4.08 2.41 1.60 16.01 1.5 21
WSZ-1 20 5000×1500×2000 2.50 17.50 4.08 2.41 0.92 18.47 2.5 26
WSZ-1.25 30 5000×2000×2000 2.90 21.70 4.08 2.41 0.78 23.33 2.5 26
WSZ-1.67 40 6500×2000×2000 4.36 30.36 4.08 2.41 0.68 27.22 2.5 31
WSZ-2 50 6500×2000×2500 5.07 37.57 5.88 3.31 0.54 27.22 2.5 34
WSZ-2.5 60 7500×2000×2500 5.58 43.27 5.88 3.31 0.54 32.51 4 36
WSZ-3 70 7000×2500×2500 6.31 51.31 6.26 3.69 0.46 32.51 4 41
WSZ-3.5 80 8000×2500×2500 6.88 57.50 6.26 3.69 0.48 38.56 4 45
WSZ-4 100 10000×2500×2500 8.30 72.98 6.26 3.69 0.44 44.06 4 52
WSZ-5 120 11500×2500×2700 9.65 85.59 7.86 4.49 0.62 74.30 6 60
WSZ-6 150 12000×3000×2700 11.22 108.42 9.35 5.60 0.50 74.30 6 72
WSZ-7 170 16000×2500×2700
(in two groups)		 12.26 121.61 9.35 5.60 0.44 74.30 6 77
WSZ-8 200 20000×2500×2500
(in two groups)		 15.53 142.09 9.75 6.00 0.41 82.37 6 91
WSZ-10 250 24000×2500×2700
(in two groups)		 17.30 175.25 15.80 9.20 0.43 108.29 10 110
WSZ-12.5 300 24000×3000×2700
(in two groups)		 20.05 210.40 15.80 9.20 0.36 108.29 10 127
WSZ-15 360 34500×2500×2700
(in three groups)		 25.11 251.91 16.50 9.90 0.41 146.59 10 145
WSZ-17 400 37500×2500×2700
(in three groups)		 27.24 278.34 21.70 12.70 0.37 146.59 10 159
WSZ-20 500 39000×3000×2700
(in three groups)		 33.71 349.61 21.70 12.70 0.29 146.59 10 193
