Specifications
Brand Name :
Zhongqiao Enlightenment
Model Number :
WSZ-4
Certification :
SGS
Place of Origin :
Shandong,China
MOQ :
1 Set
Price :
2480USD-16800USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
160Set Per Month
Delivery Time :
7-30 working days
Packaging Details :
container or customized
Water treatment capacity (m³/d) :
100m³/d
Outline dimension :
10000×2500×2500mm
Weight of equipment :
8.30t
Running weight :
72.98t
Installed power :
6.26kW
Power consumption :
3.69kW
Cable specifications :
4mm²
Floor space :
52m²
Description

Mbr Membrane Underground Sewage Treatment Equipment Plant

Product Advantages
High Automation:

Elevate your operations with our state-of-the-art automation system, designed for effortless, unattended functionality complemented by sophisticated remote monitoring capabilities. Experience seamless, unparalleled efficiency at the touch of a button.

Low Failure Rate:

Our robust units are a testament to reliability, each rigorously tested in our facilities to ensure exceptional performance. These stringent tests result in impressively low failure rates and minimal maintenance demands, providing you with lasting peace of mind.

Dual Recycle Systems:

Unlock superior flexibility with our innovative dual recycle systems, featuring both mixed liquid and sludge recirculation mechanisms. These systems enable autonomous adjustments of recirculation rates to adapt to varying water quality. The mixed liquid recirculation process significantly boosts denitrification, while the sludge recirculation maintains a thriving microbial population, ensuring consistent and stable operation.

Durable Materials:

Built for longevity, the equipment's shell is crafted from premium carbon steel, stainless steel, or fiberglass. The carbon steel version is enhanced with epoxy coal tar pitch, providing exceptional resistance to corrosion.

Reinforced Design:

Expertly engineered for durability, this equipment can be installed either 2 meters underground or above ground, featuring internal reinforcements for superior stability and strength.

Efficient Distribution:

Engineered to perfection, each compartment incorporates an advanced water distribution system that prevents short-circuiting. Benefit from an impressive tank utilization rate of up to 89.8%, which is significantly 15%-30% higher than standard systems.

Specialized Aeration:

Harness the efficiency of our custom-designed micro-hole aeration device, meticulously crafted to resist clogging. It ensures optimal mixing of wastewater, activated sludge, and dissolved oxygen, dramatically boosting oxygen transfer and microbial vitality.

Advanced Fillers:

Our cutting-edge equipment utilizes innovative, bio-compatible composite fillers to facilitate rapid biofilm formation, accelerate microbial growth, and enhance activity, resulting in superb effluent quality.

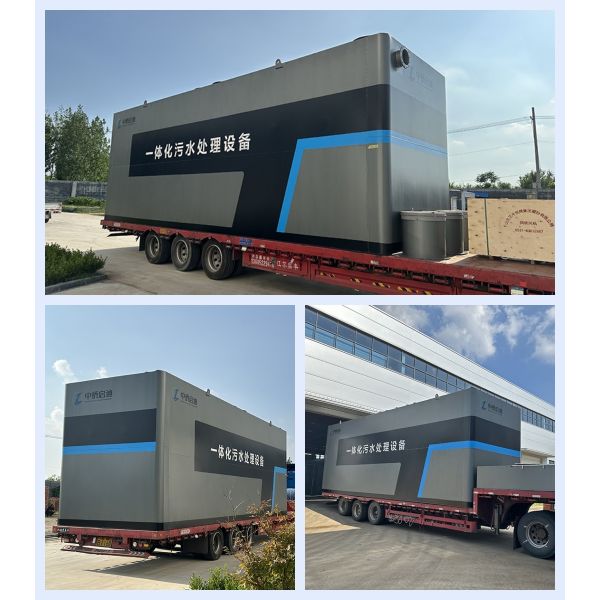

Mbr Membrane Underground Integrated Sewage Treatment Plant Equipment
Mbr Membrane Underground Integrated Sewage Treatment Plant Equipment

Inlet and Effluent Water Quality Indicators
NameInlet Water Main IndicatorsGrade A Effluent IndicatorGrade B effluent indicator
Chemical Oxygen Demand (mg/L)≤500≤50≤60
Biochemical Oxygen Demand (mg/L)≤350≤10≤20
Ammonia nitrogen (mg/L)≤45≤5(8)≤15(8)
pH6.0-9.06.0-9.06.0-9.0
Suspended solids (mg/L)≤270≤10≤20
Total phosphorus (mg/L)≤5≤0.5≤1
Mbr Membrane Underground Integrated Sewage Treatment Plant Equipment
Product Specifications
modelWater treatment capacity (m³/d)outline dimensionweight of
equipment
running
weight
installed powerPower
consumption
running expenserunning expenseCable specificationsfloor space
L x W x H (mm)(t)(t)(kW)(kW)(Yuan/ton of water)(CNY/day)(mm²)(m²)
WSZ-0.2552500×1000×15000.974.724.082.413.2016.011.519
WSZ-0.5102500×1500×20001.659.154.082.411.6016.011.521
WSZ-1205000×1500×20002.5017.504.082.410.9218.472.526
WSZ-1.25305000×2000×20002.9021.704.082.410.7823.332.526
WSZ-1.67406500×2000×20004.3630.364.082.410.6827.222.531
WSZ-2506500×2000×25005.0737.575.883.310.5427.222.534
WSZ-2.5607500×2000×25005.5843.275.883.310.5432.51436
WSZ-3707000×2500×25006.3151.316.263.690.4632.51441
WSZ-3.5808000×2500×25006.8857.506.263.690.4838.56445
WSZ-410010000×2500×25008.3072.986.263.690.4444.06452
WSZ-512011500×2500×27009.6585.597.864.490.6274.30660
WSZ-615012000×3000×270011.22108.429.355.600.5074.30672
WSZ-717016000×2500×2700
(in two groups)
12.26121.619.355.600.4474.30677
WSZ-820020000×2500×2500
(in two groups)
15.53142.099.756.000.4182.37691
WSZ-1025024000×2500×2700
(in two groups)
17.30175.2515.809.200.43108.2910110
WSZ-12.530024000×3000×2700
(in two groups)
20.05210.4015.809.200.36108.2910127
WSZ-1536034500×2500×2700
(in three groups)
25.11251.9116.509.900.41146.5910145
WSZ-1740037500×2500×2700
(in three groups)
27.24278.3421.7012.700.37146.5910159
WSZ-2050039000×3000×2700
(in three groups)
33.71349.6121.7012.700.29146.5910193
