ZH127 Series 8-Pin Straight Bayonet Cable Plug

Product Information

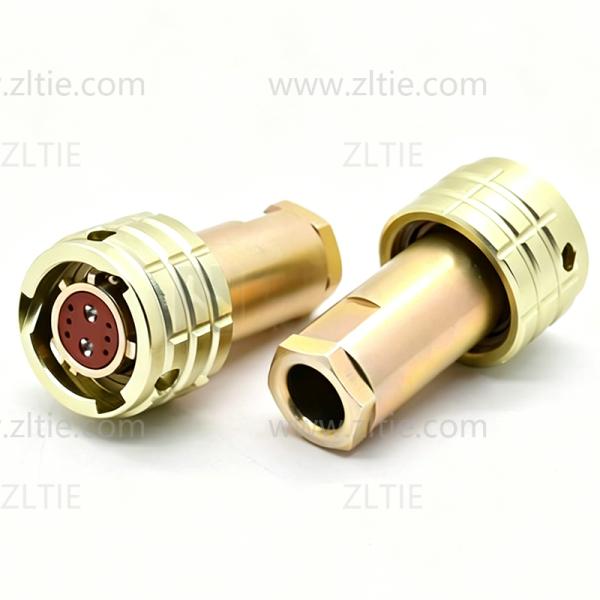

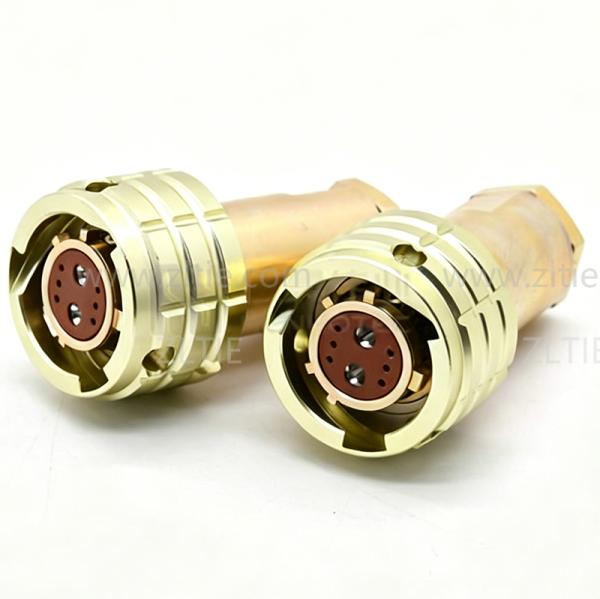

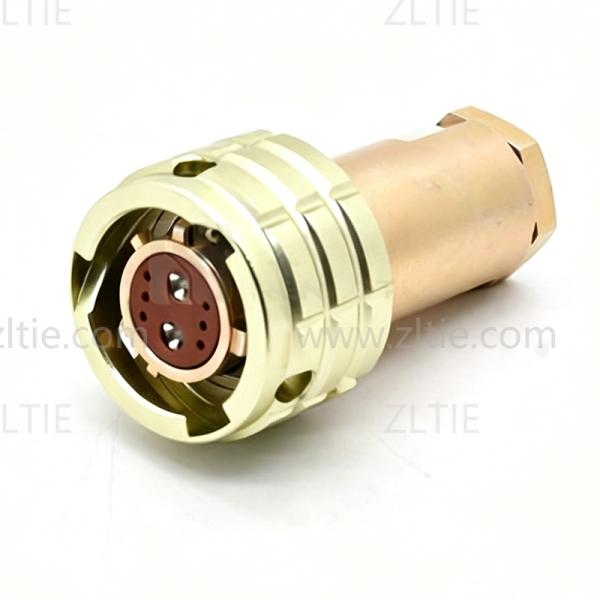

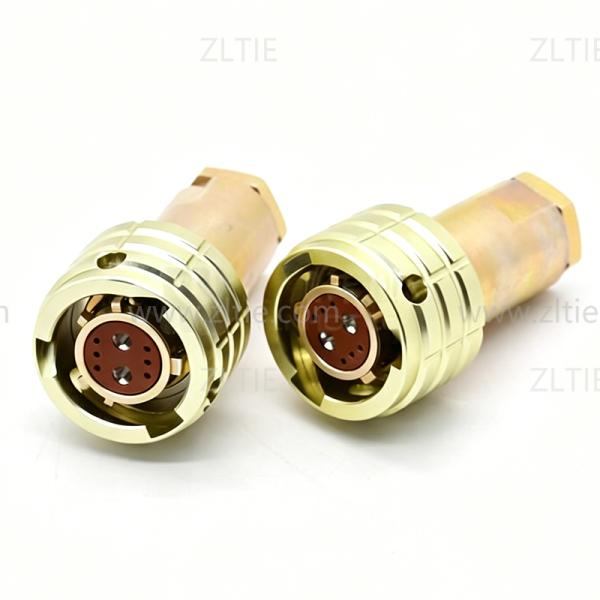

The ZH127 Series 8-pin straight bayonet plug is a compact circular connector designed for reliable signal and power connections in AC and DC electronic circuits. Based on Russian connector technology, the series features a bayonet coupling mechanism, multiple keying positions, and a cable-mount structure for convenient installation. With 8 female contacts and a compact shell size 12, this connector provides a practical solution where secure mating and efficient use of installation space are important.

The ZH127 series is designed for electronic systems operating at frequencies up to 3 MHz, while the supplied specification for this model lists an operating voltage of 150V. Please confirm the required electrical rating against the application before selection.

Key Characteristics

• 8-pin female contact configuration with straight cable-mount construction.

• Bayonet coupling enables quick and secure mating.

• Multiple keying positions help improve mating accuracy.

• Gold- or silver-plated contacts support stable electrical conductivity.

• Ø0.6 mm contact diameter provides a compact multi-contact arrangement.

• Bakelite insulating material provides reliable electrical insulation.

• Aluminum alloy shell offers a lightweight and durable connector structure.

• Metal tail attachment provides additional cable-side mechanical support.

• Designed for up to 500 mating cycles.

Technical Specifications

Applications & Compatibility

The ZH127 plug is suitable for electronic equipment, electrical instruments, control systems, communication equipment, and other low-frequency electronic systems requiring a compact bayonet connection. It is designed to be interchangeable and intermateable with corresponding OHS-BC, ONTs-BS, SNTs127, and SNC127 series connectors, subject to dimensional and electrical verification.

Advantages & Service

• Compact 8-contact design saves installation space.

• Quick bayonet coupling improves connection efficiency.

• Multiple keying positions help prevent incorrect mating.

• Wide operating temperature range supports varied working environments.

• OEM/ODM customization, samples, technical support, and bulk supply are available.

FAQ

Q: What is the coupling method?
A: The connector uses a bayonet quick-connect structure.

Q: Can it replace compatible series connectors?
A: It is designed for interchangeability with listed compatible series; dimensional and electrical specifications should be confirmed before replacement.

Q: Can cable assemblies be customized?
A: Yes. Custom cable length, termination, and connector configurations can be discussed according to project requirements.
