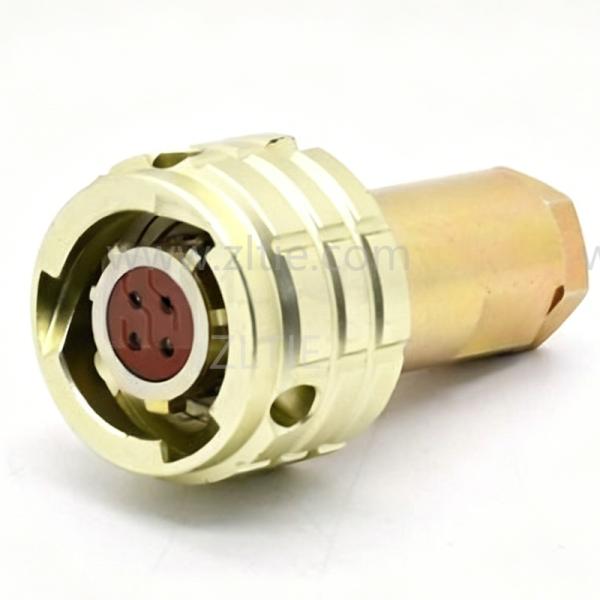

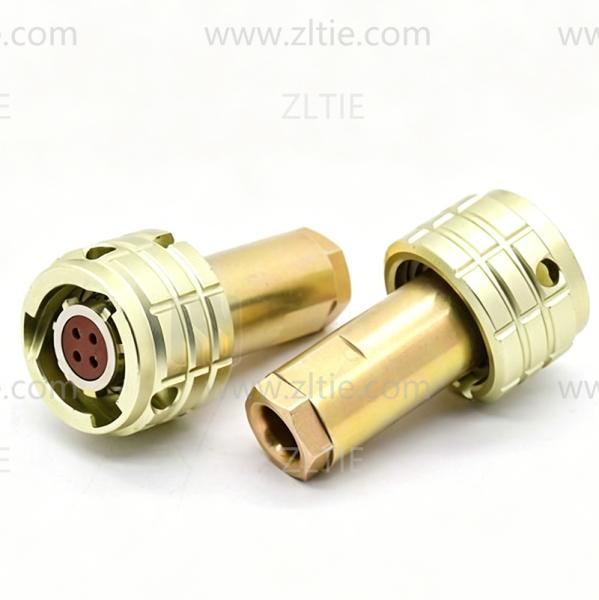

ZH127 Series Connector Shell Size 10 4pin Female Plug with Straight Tail Attachment – СНЦ127-4/10РП126-1-В
ZH127 Series Connector Shell Size 10 4pin Female Plug with Straight Tail Attachment – СНЦ127-4/10РП126-1-В
ZH127 Series Connector Shell Size 10 4pin Female Plug with Straight Tail Attachment – СНЦ127-4/10РП126-1-В
ZH127 Series Connector Shell Size 10 4pin Female Plug with Straight Tail Attachment – СНЦ127-4/10РП126-1-В
ZH127 Series Connector Shell Size 10 4pin Female Plug with Straight Tail Attachment – СНЦ127-4/10РП126-1-В
ZH127 Series Connector Shell Size 10 4pin Female Plug with Straight Tail Attachment – СНЦ127-4/10РП126-1-В
Specifications
Model Number :
ZH127-4/10P12Q-1-B
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C,D/A,D/P,T/T
Delivery Time :
10 work days
Description

Product Details:

ZH127 series bayonet connectors mainly adopt Russian connector technology. It is engineered for reliable performance in both DC and AC circuits, supporting frequencies up to 3 MHz and voltages up to 700 V (amplitude). It consists of plugs and sockets, with multi-level key positions for installation. The coupling mode of the connector is bayonet type. The Socket without tail attachment and the Plug with metal tail attachment.This type of connectors are widely used in low-frequency electronic systems, including a large number of electrical equipment.

ZH127 are interchangeable & intermateable with connectors of OHS-BC, Ohs-BC, ONTs-BS, ONTs-BS, SNTs127, SNC127.

ATTRIBUTES:

  • Connector Type: Plug
  • Contact Material: Gold/Silver plating
  • Contact Type: Female
  • Fastening Type: Bayonet Connection
  • Mounting Type: Cable Mount
  • Insulating Materials: Bakelite
  • Insulation Impedance: ≥5000MΩ
  • Mechanical and Working Life: 500 Cycles
  • Number of Positions: 4
  • Operating Temperature: -60 ℃ ～ +105 ℃
  • Orientation: Straight
  • Shell Material: Aluminum Alloy
  • Shell Size: 10
  • Vibration: 1-5000Hz 20g
  • Contact Dia.: Ø 1.0 mm
  • Operating Current: 3.7A
  • Operating Voltage: 250V
  • Contact Resistance: ≤5MΩ
