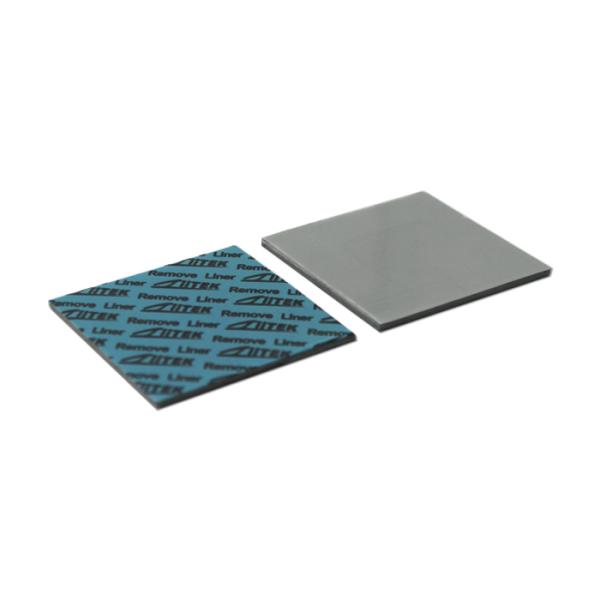

6.5W High Quality TIF500-65-11U Factory Wholesale Customized Thermal Pad For LED CPU GPU MOS
6.5W High Quality TIF500-65-11U Factory Wholesale Customized Thermal Pad For LED CPU GPU MOS
6.5W High Quality TIF500-65-11U Factory Wholesale Customized Thermal Pad For LED CPU GPU MOS
6.5W High Quality TIF500-65-11U Factory Wholesale Customized Thermal Pad For LED CPU GPU MOS
Specifications
Brand Name :
Ziitek
Model Number :
TIF500-65-11U
Certification :
RoHS
Place of Origin :
Vietnam
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
6.5W High Quality TIF500-65-11U Factory Wholesale Customized Thermal Pad For LED CPU GPU MOS
Materials :
Ceramic filled silicone elastomer
Color :
Gray
Hardness :
27 Shore 00
Thermal conductivity :
6.5W/mK
Sample :
Sample free
Keywords :
Thermal Pad
Specific Gravity :
3.4g/cm³
Flame rating :
94-V0
Application :
LED CPU GPU MOS
Description

6.5W High Quality TIF®500-65-11U Factory Wholesale Customized Thermal Pad For LED CPU GPU MOS

Product descriptions

The TIF®500-65-11U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-level softness, achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.

Features

> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance

Application

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board

> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules

Typical Properties of TIF®500-65-11U Series
Property Value Test method
Color Dark gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.4 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness 65 Shore 00 27 Shore 00 ASTM 2240
Continuos Use Temp -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥ 5500 ASTM D149
Dielectric Constant 7.0 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Thermal Conductivity (W/m-K) 6.5 ASTM D5470
6.5 ISO22007
Fire rating V-0 UL 94 (E331100)
Product Specifications
Standard Thickness: 0.010" (0.25mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm).

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

6.5W High Quality TIF500-65-11U Factory Wholesale Customized Thermal Pad For LED CPU GPU MOS

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
