TIF100-30-11S 3.0W/mK Thermal Conductive Silicon Pad For Mass Storage Devices
TIF100-30-11S 3.0W/mK Thermal Conductive Silicon Pad For Mass Storage Devices
TIF100-30-11S 3.0W/mK Thermal Conductive Silicon Pad For Mass Storage Devices
TIF100-30-11S 3.0W/mK Thermal Conductive Silicon Pad For Mass Storage Devices
Specifications
Keywords :
Thermal Pad
Application :
Mass Storage Devices
Products name :
3.0W/mK Thermal Conductive Silicon Pad For Mass Storage Devices
Flame rating :
94-V0
Materials :
Ceramic filled silicone elastomer
Brand Name :
Ziitek
Model Number :
TIF100-30-11S
Certification :
RoHS
Place of Origin :
Vietnam
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Color :
Dark Gray
Hardness :
45/65 Shore 00
Specific Gravity :
3.15 g/cm³
Thermal conductivity :
3.0W/mK
Description

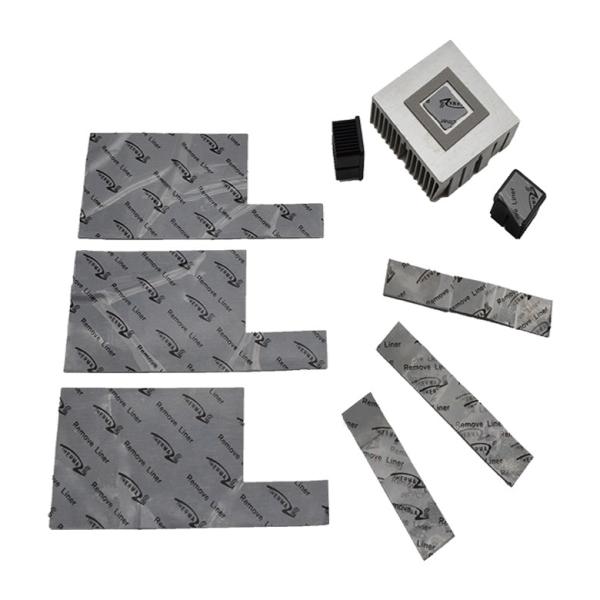

3.0W/mK Thermal Conductive Silicon Pad For Mass storage devices

Product descriptions

TlF®100-30-11S is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

TIF100-30-11S 3.0W/mK Thermal Conductive Silicon Pad For Mass Storage Devices

Features

> Good thermal conductive 3.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses

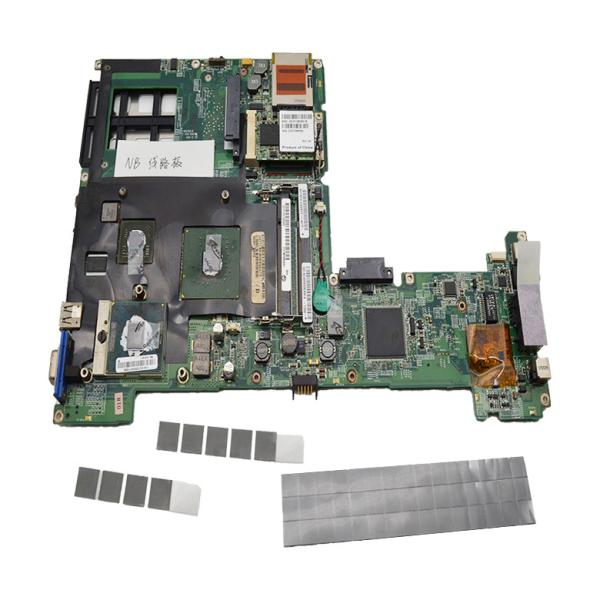

Application

> Mainboard/mother board
> Notebook
> Power supply
> Micro heat pipe thermal solutions
> CPU
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components

Typical Properties of TIF®100-30-11S Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.15 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
0.25~0.50 0.75~5.00
Hardness (Shore 00) 65 45 ASTM 2240
Recommended Operating Temperature (℃) -40 to 200 ******
Breakdown Voltage (V/mm) ≥5500 ASTM D149
Dielectric Constant @ 1MHz 5.0 ASTM D150
Volume Resistivity (Ohm-meter) ＞1.0X1012 ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 3.0W/m-K ASTM D5470
3.0W/m-K ISO22007

Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mm×406 mm)


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is availablein custom shapes and various forms.
For other thicknesses or more information, please contact us.

TIF100-30-11S 3.0W/mK Thermal Conductive Silicon Pad For Mass Storage Devices

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in Vietnam.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.

Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.
