TIF100-20-11PSA Silicone Thermal Pad With Thermal Conductivity 1.2W/M.K Work For Computer Laptop Desktop CPU Cooling
TIF100-20-11PSA Silicone Thermal Pad With Thermal Conductivity 1.2W/M.K Work For Computer Laptop Desktop CPU Cooling
TIF100-20-11PSA Silicone Thermal Pad With Thermal Conductivity 1.2W/M.K Work For Computer Laptop Desktop CPU Cooling
TIF100-20-11PSA Silicone Thermal Pad With Thermal Conductivity 1.2W/M.K Work For Computer Laptop Desktop CPU Cooling
Specifications
Brand Name :
Ziitek
Model Number :
TIF100-20-11PSA
Certification :
UL and RoHs
Place of Origin :
Vietnam
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
Silicone Thermal Pad With Thermal Conductivity 1.2W/M.K Work For Computer Laptop Desktop CPU Cooling
Thermal Conductivity :
2.0W/mK
Sample :
Sample free
Density :
2.6g/cm³
Keywords :
Silicone Thermal Pad
Color :
Gray
Hardness :
75±5 Shore 00
Dielectric Breakdown Voltage :
≥5500VAC
Application :
Computer Laptop Desktop CPU Cooling
Description

TIF100-20-11PSA Silicone Thermal Pad With Thermal Conductivity 1.2W/M.K Work For Computer Laptop Desktop CPU Cooling

Products description

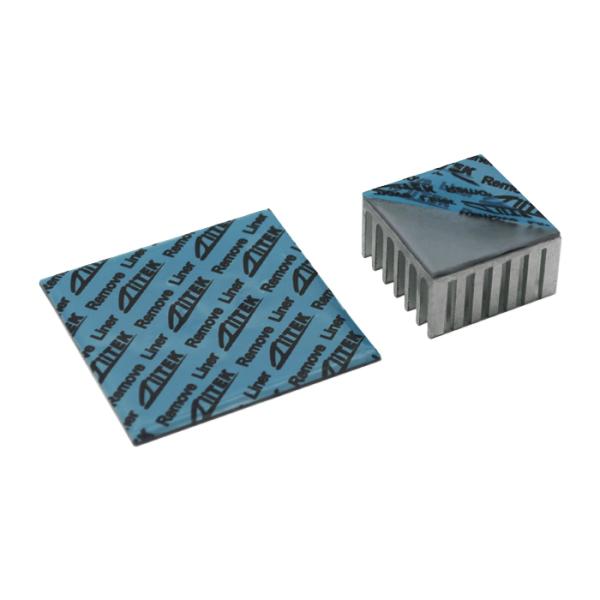

Ziitek TIF™100-20-11PSA series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Features:


> Good thermal conductive: 2.0W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized


Applications:


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware

> CPU

Typical Properties of TIF100-20-11PSA Series
Property Value Test method
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density 2.6g/cm³ ASTM D297
Thickness range 0.020"(0.5mm)~0.200"(5.0mm) ******
Hardness 75±5 Shore 00 ASTM 2240
Continuos Use Temp -40 to 200 ℃ ***
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant 3.5 MHz ASTM D150
Volume Resistivity(Ohm-cm) 1.3x1012 ASTM D257
Fire rating 94-V0 UL E331100
Thermal conductivity 2.0W/m-K ASTM D5470

Product Specification


Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)

Product Sizes: 8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming.

Safe disposal method does not require special protection.The storage condition is low temperature and dry,

away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.

TIF100-20-11PSA Silicone Thermal Pad With Thermal Conductivity 1.2W/M.K Work For Computer Laptop Desktop CPU Cooling
Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in Vietnam.

Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
