ZN63-24 VCB
ZN63-24 VCB
Specifications
Rated thermal stabilization time :
4s
Packaging Details :
Carton
Rated Voltage :
11KV / 12KV
Machanical Life :
10000 times
Rated Current Rated Current :
630A / 1250A,630A / 1600A
RMS :
20KA /25KA , 80KA
Dynamic Stability rated current(peak) :
63KA , 80 KA
Product Name :
24KV ABB Type Vacuum Circuit Breaker ZN63(VS1)-24
Frequency :
50HZ
Rated short-Circuit breaking time :
50 Times
Rated operating sequence :
O-0.3s-CO-180s-CO
Tyep :
Circuit Breaker
Rated Short-Circuit Breaking Current :
20KA / 25KA , 31.5KA
Rated short-circuit closing current(peak) :
63KA
Place of Origin :
China
Price :
Negotiate
Alitude :
Not exceed 1000m
Delivery Time :
5-10 Days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Ambient Temperature :
not higher than +40 °C , not less than -15 °C
Certificate :
ISO9001
Description

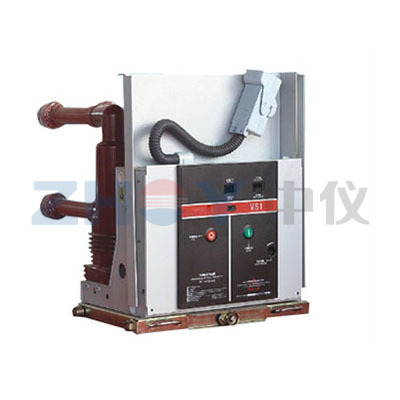

ZN63 (VS1)-24 Indoor High Voltage Vacuum Circuit Breaker

The ZN63 (VS1)-24 series is a high-performance indoor vacuum circuit breaker designed for 24kV three-phase AC 50Hz power systems. Engineered for reliability, it is the ideal solution for power stations, substations, and industrial enterprises requiring robust control and protection for transmission and distribution systems.

Key Advantages

  • High Durability: Features spring energy storage with options for AC/DC or manual operation.
  • Advanced Actuation: Optional long-life permanent magnetic actuator extending mechanical life up to 60,000 cycles.
  • Versatility: Specifically optimized for high altitude breaking loads and frequent operation environments.

Product Attributes

BrandZN63 (VS1)-24 Series
TypeIndoor Vacuum Circuit Breaker
CertificationISO9001

Technical Specifications

ParameterDetail
Rated Voltage11KV / 12KV
Rated Current630A / 1250A, 630A / 1600A
Breaking Current20KA / 25KA, 31.5KA
Frequency50HZ
Mechanical Life10,000 times
Operating SequenceO-0.3s-CO-180s-CO
Ambient Temperature-15°C to +40°C
AltitudeNot exceed 1000m
