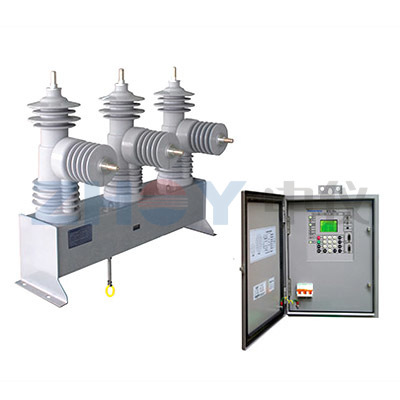

ZX-32 Recloser
ZX-32 Recloser
Specifications
Rated continuous current Ir (A) :
630, 800
Rated asymmetrical making current (rms) (kA) :
20
Rated symmetrical interrupting current Isc (kA) :
12.5, 16
Place of Origin :
China
Rated peak making current (kA) :
32.5
Rated maximum voltage Ur (kV) :
15.5
Rated lightning impulse withstand voltage Up (kV) :
170
Power frequency insulation level withstand test voltage Ud (kV) :
50
Ambient temperature range (oC) :
-40+55
Packaging Details :
Carton
Delivery Time :
5-10 Days
Permissible short-circuit operations (OPS) :
up250
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Mechanical life (OPS) :
10,000
Description

ZX-Series Distribution Automation Switch

The ZX-Series is a three-phase, electronically controlled, vacuum-interrupting distribution automation switch designed for reliable and economical switching, sectionalizing, and advanced metering in circuits rated up to 38 kV.

Reliable Performance: Utilizes a magnetic actuator for a lifetime of trouble-free operation.
Advanced Material: Solid cycloaliphatic-epoxy vacuum interrupters; no gaseous, liquid, or foam dielectric.
High Durability: Resistant to ozone, oxygen, moisture, contamination, and ultraviolet light.

Technical Specifications

Parameter 15.5 kV 27 kV (125kV) 38 kV
Continuous Current (A)630, 800630, 800630, 800
Impulse Withstand (kV)110125170
Interrupting Current (kA)12.5, 1612.512.5, 16
Mechanical Life (OPS)10,00010,00010,000
Temp Range (°C)-40 to +55-40 to +55-40 to +55
