ZN85-40.5 Vacuum Breaker
ZN85-40.5 Vacuum Breaker
Specifications
Parameter :
400
Unit :
Times
Item :
Single capacitor bank breaking current
Place of Origin :
China
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
5-10 Days
Price :
Negotiate
Packaging Details :
Carton
Description

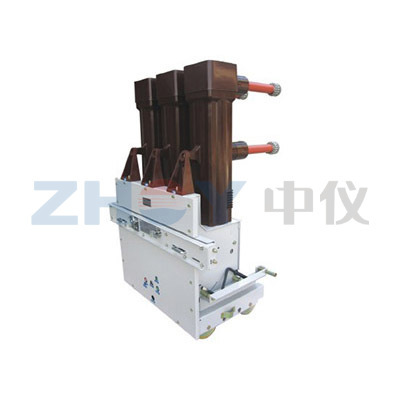

ZN85-40.5/T2000-31.5 Indoor HV Vacuum Breaker

Product Overview

The ZN85-40.5/T2000-31.5 is a high-performance indoor HV vacuum breaker designed for robust switching of load, overload, and fault currents. Engineered for three-phase AC 50Hz, 40.5KV power systems, it is the ideal solution for power plants, transformer substations, and industrial mining establishments.

Compact Design: Up-under arrangement structure reduces installation depth.
High Reliability: Superior electrical specifications and long operational life.
Low Maintenance: Mechanism designed for easy inspection and minimal maintenance.
Frequent Operation: Optimized for high-frequency switching environments.

Core Attributes

Model: ZN85-40.5/T2000-31.5
Type: Indoor HV Vacuum Breaker
System: Three-phase AC 50Hz

Technical Specifications

ItemUnitParameter
Rated voltageKV40.5
Rated currentA1250 1600 2000
Short circuit breaking currentKA25 31.5 40
Mechanical lifeTimes10000
Breaking timems≤80
Rated operating voltageVDC/AC:100/200
