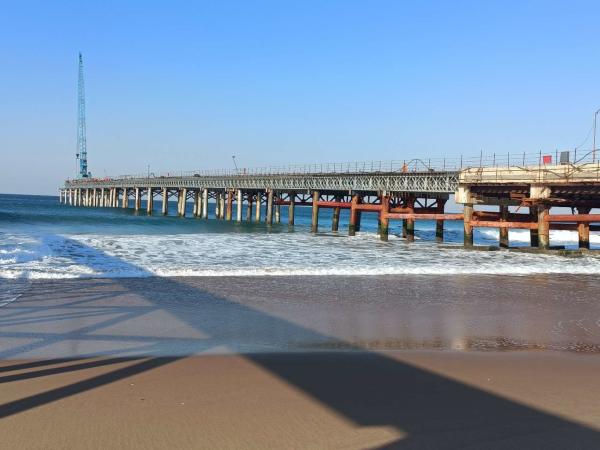

Pedestrian Bridge Bailey Bridge/Modular Steel Bridge

Description:

Jiangsu Zhonghai Bridge Equipment Co., Ltd. is a leading manufacturer specializing in bridge construction and related equipment, renowned for its commitment to quality and innovation. Established with the goal of advancing infrastructure development, the company has established itself as a vital player in the industry, providing a diverse range of products tailored to meet the demanding needs of modern engineering projects.

One of the standout features of Jiangsu Zhonghai is its state-of-the-art manufacturing facilities, equipped with advanced technology and machinery. This allows the company to maintain high production standards, ensuring that every product meets stringent safety and quality regulations. The research and development team is dedicated to continuous improvement and innovation, consistently experimenting with new materials and designs to enhance the efficiency and durability of their equipment.

Moreover, Jiangsu Zhonghai places a strong emphasis on customer service. The company works closely with clients to understand their specific requirements, offering customized solutions that align with project specifications. Their expertise spans various types of bridge construction, including cantilever, cable-stayed, and suspension bridges, which makes them a versatile partner in any major infrastructure project.

The company also prioritizes sustainability, implementing eco-friendly practices throughout its manufacturing processes. This commitment not only minimizes environmental impact but also promotes safer and more sustainable infrastructure development.

In summary, Jiangsu Zhonghai Bridge Equipment Co., Ltd. stands out for its innovative approach, high-quality products, and exceptional customer service, positioning itself as a leader in the bridge equipment manufacturing sector. With a focus on technology and sustainability, the company is well-equipped to meet the future challenges of the infrastructure industry.

Specifications:

​

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

​​

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

​

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
