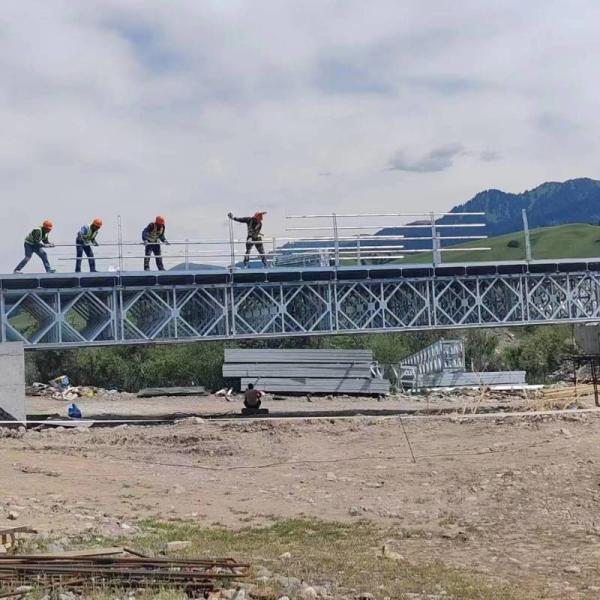

Steel Foot Bridge/steel Cable Suspension Bridge

The 200-Type Bailey bridge is a versatile and rapidly deployable steel bridge system with a wide range of applications. Here are some of its typical uses:

Emergency and Disaster Relief
- **Emergency Response**: The 200-Type Bailey bridge is ideal for rapid deployment in emergency situations, such as natural disasters or conflict zones, to restore vital transportation links.
- **Disaster Relief**: It can be quickly assembled to provide temporary crossings over rivers, broken bridges, ditches, valleys, and other obstacles, facilitating the delivery of humanitarian aid.

Military Applications
- **Logistic Support**: The bridge is extensively used by military forces for logistic support and rapid deployment in various terrains.
- **Combat Zones**: It provides essential access and mobility in war-torn areas, supporting military operations.

Civil Infrastructure
- **Temporary and Permanent Bridges**: The 200-Type Bailey bridge can serve as both temporary and permanent solutions for rural and urban infrastructure projects.
- **Rural Bridges**: It connects remote communities, improving access to essential services like education and healthcare.

Construction and Industrial Use
- **Construction Site Access**: The bridge is used to provide temporary access over rivers, valleys, or other obstacles during construction projects.
- **Utility Support**: It can be adapted to support pipelines, conveyors, and other utilities, making it a versatile solution for industrial applications.

Special Applications
- **Floating Bridges**: The 200-Type Bailey bridge can be configured as floating bridges using pontoon systems, suitable for complex water crossings.
- **Jetties and Docks**: It can also be used for constructing jetties and docks to facilitate ferry and barge access.

Key Benefits
- **Rapid Deployment**: The modular design allows for quick assembly and disassembly, making it suitable for time-sensitive applications.
- **High Load Capacity**: It supports various load classes, including heavy-duty vehicles and tracked vehicles.
- **Cost-Effective**: The bridge is cost-effective compared to traditional construction methods, with minimal maintenance requirements.
- **Versatility**: The bridge can be customized to meet specific project requirements, including single-lane, double-lane, and multi-span configurations.

In summary, the 200-Type Bailey bridge is a highly adaptable and efficient solution for a variety of applications, from emergency response and military operations to civil infrastructure and industrial projects.

Specifications:

​

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

​​

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

​

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
