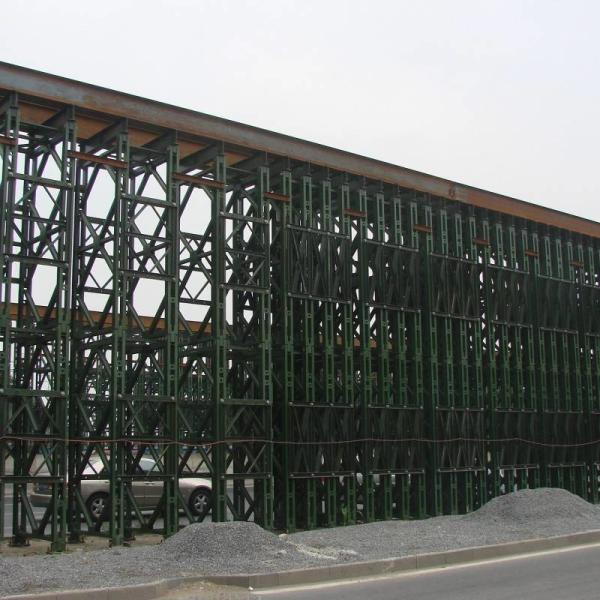

Long Span Steel Structure/steel Fabricated Bridge

Bridge erection case of Jiangsu Zhonghai Bridge Equipment Co., Ltd.

Jiangsu Zhonghai Bridge Equipment Co., Ltd. (hereinafter referred to as "Zhonghai Bridge") has made remarkable achievements in the field of bridge construction with its advanced technology and rich experience. The company is located in Dantu High-tech Park, Zhenjiang City, and has strong production capacity and advanced manufacturing technology.

Domestic projects
Zhonghai Bridge has participated in many major domestic bridge construction projects, including Runyang Bridge, Hangzhou Bay Cross-sea Bridge, Sutong Bridge, Yellow Sea Bridge, Zhoushan Liandao Bridge, Nanjing Yangtze River Fourth Bridge, Quanzhou Bay Cross-sea Bridge, Hutong Yangtze River Bridge, Zhangzhou Bay Cross-sea Bridge, Fuzhou-Xiamen High-speed Railway Quanzhou Bay Railway Bridge, Wufengshan Yangtze River Highway-Rail Bridge, etc. These projects not only demonstrate the professional strength of Zhonghai Bridge in large-scale bridge construction, but also reflect its outstanding performance in technological innovation and quality control.

International projects
Zhonghai Bridge actively responds to the "Belt and Road" initiative and expands the international market. The company has participated in international projects such as the Maldives China-Maldives Friendship Bridge, the Brunei Cross-Sea Bridge, the Pakistan Hub Power Station, the Kenya-Malaysia Railway, and the Malaysia East Coast Railway. These projects have not only enhanced the international influence of China Ocean Bridge, but also contributed to the promotion of Chinese standards in the international market.

Technological Innovation and Application
China Ocean Bridge is the first company in China to achieve fully automatic welding of Bailey bridges. By introducing advanced automatic welding robot technology, the company has not only improved production efficiency, but also ensured the stability and consistency of welding quality. In addition, the company has also developed a 450-type Bailey bridge with a span of 83 meters and a load of 90 tons. The bridge has simultaneously applied for three sets of Chinese, American and European standard certifications, aiming to further enhance its competitiveness in the international market.

Quality and Safety
China Ocean Bridge always puts quality first. All products undergo strict quality inspections, and the main welds must pass ultrasonic flaw detection to ensure compliance with welding standards. The company has passed the ISO9001:2000 international quality system certification and has been awarded the honorary title of quality system management demonstration unit.

Through technological innovation and strict quality management, COSCO Bridge has provided high-quality bridge equipment and services for many large-scale bridge projects at home and abroad, demonstrating its professional strength and technological innovation capabilities in the field of bridge construction.

Specifications:

​

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

​​

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

​

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
