Specifications
Brand Name :
ZEROONR-Control
Model Number :
P2260
Certification :
CE,ROHS
Place of Origin :
Shenzhen, China
MOQ :
1pcs
Price :
US$47/pcs
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100 pcs/day
Delivery Time :
3-7 days
Packaging Details :
1pcs/box, 30 boxes/carton
Motor type :
Stepper Motor,DC Motor,Hybrid
Weight :
1.55kg
Name :
DM3722 stepper motor driver,7.2A, 86 110 130 Digital Stepping Motor Driver, High Voltage Stepper motor dirver
Application :
stepper motor,57,contor board,Nema23/24/34/42 two phase stepper motors,all kinds of CNC machine
Color :
white
Control mode :
Pulse + direction,modbus remote,manual input,DIR/Pulse + CW/CCW
Voltage range :
DC110V-240V
Current range :
2.4-7.2A (9A max)
Matched motor :
86mm 110mm 130mm flange Nema34,nema42 motor
Advantage :
Speed stability and Control convenient,no need computer or pulse generator to drive stepper motor
Currenting setting :
16 channel
Upmost microstep :
60000ppr
Description
2P2260/HB2722 2-Phase & 3XP2260/HB3722 3-Phase High Voltage Stepper Drivers
High-performance pulse stepper drivers designed for 110V-240V operation, compatible with NEMA 34, 42, and 52 motors for CNC machinery and industrial automation applications.

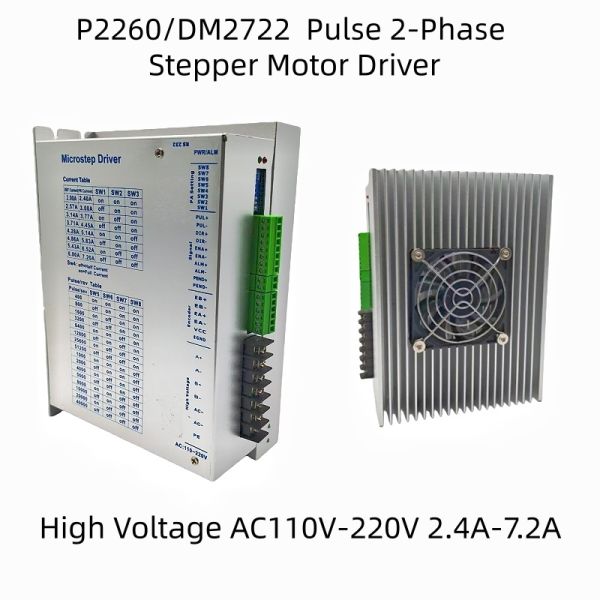

2P2260/HB2722 2-Phase High-Voltage Stepper Driver
Engineered for driving 2-phase hybrid stepper motors (4-lead or 8-lead configuration).
  • Input Voltage: AC 110V - 220V (Direct AC input, 220V ±10%)
  • Output Current: 1.2A - 7.0A (Peak), adjustable via 16-level DIP switches
  • Compatible Motors: NEMA 34, 42, 52 (86, 110, 130 series) 2-phase motors
  • Microstep Resolution: Up to 40,000 steps/revolution with 16 levels of constant torque microstepping
  • Signal Interface: Compatible with 5V - 24V logic signals (no external resistor required)
  • Key Feature: Utilizes AC servo control principles for exceptionally smooth low-speed operation with minimal vibration

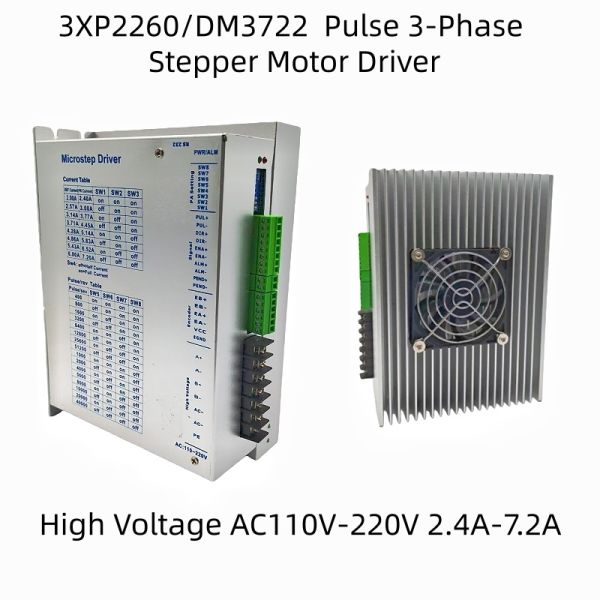

3XP2260/HB3722 3-Phase High-Voltage Stepper Driver
Designed for driving 3-phase hybrid stepper motors (3-lead configuration), offering superior high-speed performance with reduced torque loss and fewer resonance points compared to 2-phase systems.
  • Input Voltage: AC 110V - 220V (Direct AC input, 220V ±10%)
  • Output Current: 1.2A - 7.0A (Heavy-duty versions available up to 9A-10A)
  • Compatible Motors: NEMA 34, 42, 52 (86, 110, 130 series) 3-phase motors
  • Microstep Resolution: Up to 60,000 steps/revolution
  • Pulse Frequency: Maximum response frequency of 200kHz - 500kHz
  • Key Feature: Superior high-speed performance, lower torque ripple, and quieter operation
Technical Parameter Comparison
Parameter 2P2260/HB2722 (2-Phase) 3XP2260/HB3722 (3-Phase)
Motor Phase 2-Phase 3-Phase
Power Input AC 110-220V (Direct AC input, 220V ±10%) AC 110-220V (Direct AC input, 220V ±10%)
Peak Current 1.2A - 7.0A 1.2A - 7.0A
Microstep Range 400 - 40,000 steps/rev 400 - 60,000 steps/rev
Signal Voltage 5V - 24V Adaptive 5V - 24V Adaptive
Protection Overvoltage, Overcurrent, Phase Error Overvoltage, Overcurrent, Phase Error
Typical Applications CNC routers, Milling machines Packaging machinery, Heavy automation
Critical Selection Guidelines
  1. Motor Compatibility: This is the most critical factor. For motors with 3 wires, you must select the HB3722. For motors with 4 or 8 wires, choose the HB2722.
  2. Safety Precautions: Both drivers connect directly to AC 220V high voltage. Always disconnect power before wiring and ensure proper chassis grounding.
  3. Current Configuration: Set the peak current at approximately 1.1-1.2 times the motor's rated current (RMS) to ensure optimal torque performance without motor overheating.

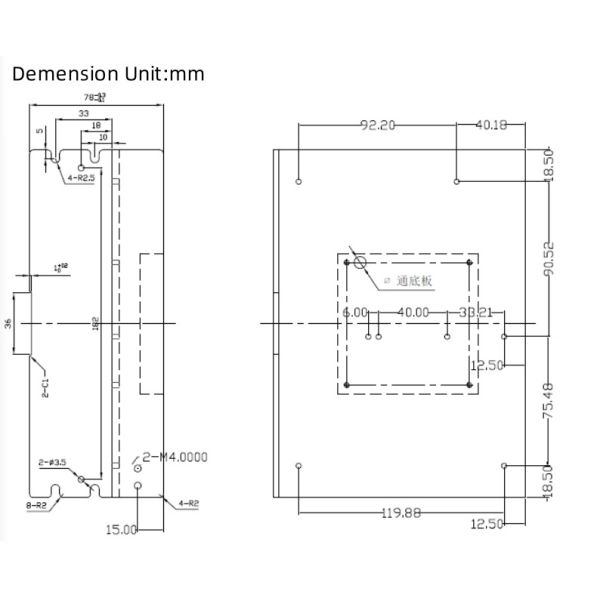

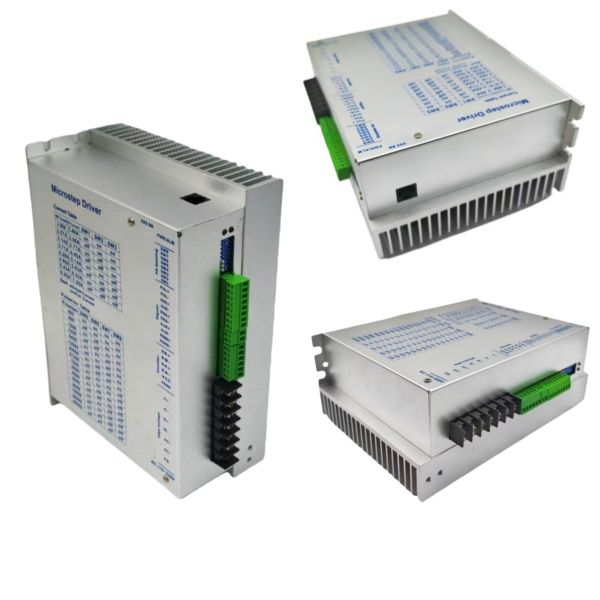

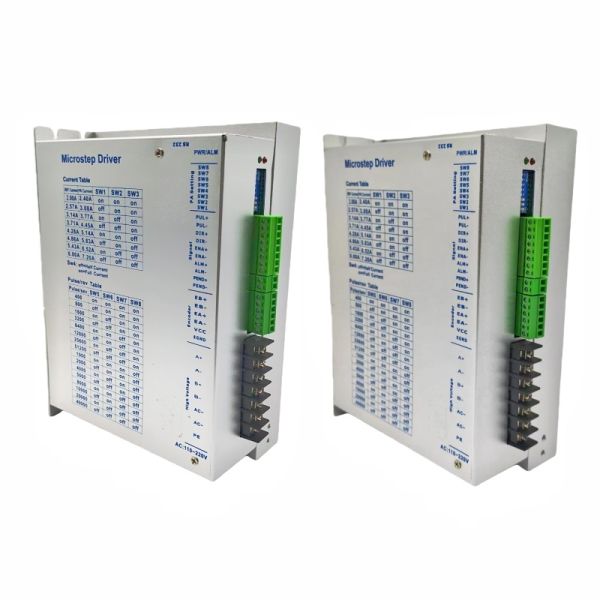

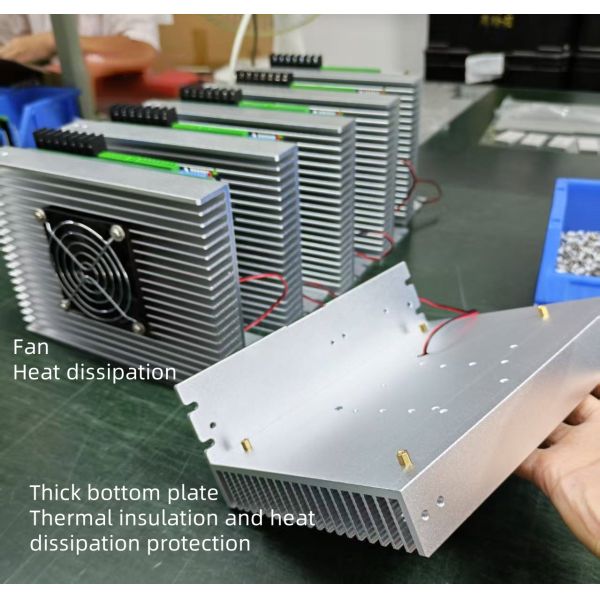

Mechanical Dimensions and Product Images
