Specifications
Brand Name :
ZEROONE-Control
Model Number :
P430/DM430
Certification :
CE,ROHS,ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1pcs
Price :
US$7.5/pcs
Payment Terms :
MoneyGram,Western Union,T/T,D/A,L/C,D/P
Supply Ability :
500pcs/day
Delivery Time :
2-7 days
Packaging Details :
1pcs/box, 50boxes/carton
Motor type :
Stepper Motor,DC Motor,Hybrid
Weight :
0.2kg
Name :
DM430 stepper motor driver
Application :
stepper motor 42,contor board,Nema17/23 two phase stepper motors,all kinds of CNC machine
Voltage :
DC(12-36V)
Color :
Black
Control mode :
Pulse + direction, manual input,rs485,DIR/Pulse + CW/CCW
Current :
2.4A to 7.2A/Phase 8 gears adjustable,1.2-7.0A,1.0-4.2A
Output current :
2.0A-6.0A,2.2A-4.8A,0.7A~7.0A
Matching motor :
Nema 23 34 Motor,42 Motors,NEMA23,110mm Step Motor
Advantage :
Speed stability and Control convenient,no need computer or pulse generator to drive stepper motor
Currenting setting :
16 channel
Description

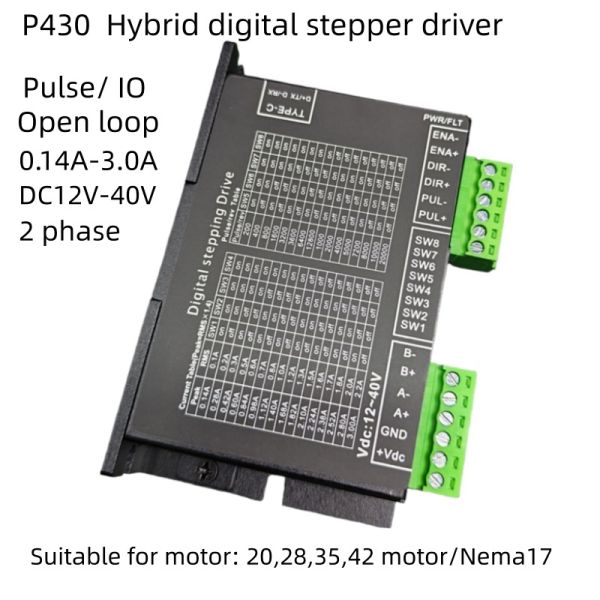

Product Overview

The P430 is a newly launched digital stepper motor driver from the company, featuring cutting-edge 32-bit DSP digital processing technology. Its control algorithm incorporates advanced current regulation and frequency conversion technologies, ensuring minimal heat generation, reduced motor vibration, and smooth operation. Users can set any subdivision value between 200-51200 and any current value within the rated current range, meeting the needs of most applications. Thanks to built-in micro-subdivision technology, it achieves high precision even at low subdivision settings, delivering stable performance across low, medium, and high speeds with ultra-low noise. The driver integrates an automatic parameter calibration function that dynamically optimizes operating parameters for different motors, maximizing their performance potential.


Application Areas

Suitable for all kinds of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser phototypesetting, plotter, CNC machine tool, automatic assembly equipment, etc. It is especially effective in the application of equipment with low noise and high speed.

P430 DM430 Open Loop 2 Phase Pulse 3A Nema17 motor 42 Stepper Motor Driver For CNC Machine

P430 DM430 Open Loop 2 Phase Pulse 3A Nema17 motor 42 Stepper Motor Driver For CNC Machine

P430 DM430 Open Loop 2 Phase Pulse 3A Nema17 motor 42 Stepper Motor Driver For CNC Machine

P430 DM430 Open Loop 2 Phase Pulse 3A Nema17 motor 42 Stepper Motor Driver For CNC Machine

1. Electrical specifications

Explain

P430

Least value

Representative value

Crest value

Unit

Output

0.1

-

3.0

A

Input power supply voltage

18

24

40

VDC

Control signal input current

6

10

16

mA

Control signal interface level

4.5

5

28

Vdc

Minimum pulse width of input signal

1.5

-

-

us

Step pulse frequency

0

-

200

KHz

Insulation resistance

500

MΩ

2. Usage environment and parameters

Cooling-down method

Natural cooling or forced air cooling

Service environment

Occasion

Do not place near other heating devices. Avoid dust, oil mist, corrosive gases, excessive humidity, or strong vibrations. Do not allow flammable gases or conductive dust.

Temperature

-5℃ ～ +50℃

Humidity

40 ～ 90%RH

Vibrate

5.9m/s2MAX

Storage temperature

-20℃～80℃

Use altitude

Below 1000 meters

Weight

116 grams

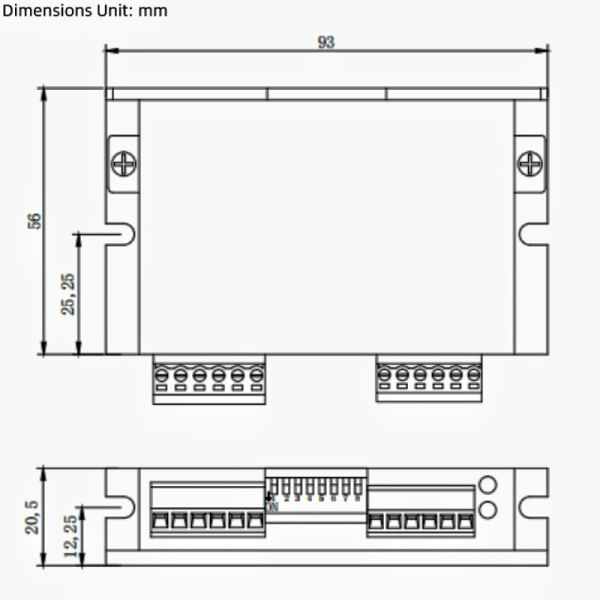

3. Mechanical installation drawing
