11ac 3dBi 1000M Wireless Mesh Wifi Router RTL8197FS-VE5
11ac 3dBi 1000M Wireless Mesh Wifi Router RTL8197FS-VE5
11ac 3dBi 1000M Wireless Mesh Wifi Router RTL8197FS-VE5
11ac 3dBi 1000M Wireless Mesh Wifi Router RTL8197FS-VE5
11ac 3dBi 1000M Wireless Mesh Wifi Router RTL8197FS-VE5
11ac 3dBi 1000M Wireless Mesh Wifi Router RTL8197FS-VE5
11ac 3dBi 1000M Wireless Mesh Wifi Router RTL8197FS-VE5
11ac 3dBi 1000M Wireless Mesh Wifi Router RTL8197FS-VE5
Specifications
Brand Name :
ZBT
Model Number :
ZBT-L6
Certification :
FCC/CE
Place of Origin :
China
MOQ :
3unit
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000units per month
Delivery Time :
3-25days
Packaging Details :
50units/carton
WAN :
1*10/100/1000M Auto MDI/MDIX WAN /LAN Port
LAN :
1*10/100/1000M Auto MDI/MDIX LAN Port
Main Chipset :
RTL8197FS-VE5
WLAN :
2.4G 300Mbps，5G 867Mbps
FLASH :
16MByte
RAM :
128MByte
Main Frequency :
1GHz
Antenna :
2*3dBi internal antenna
Wireless Protocol :
802.11b/g/n 2.4GHz; 802.11ac/a/n 5GHz.
Description

1. Simple Introduction

MESH routing system ZBT-L6 is a Gigabit dual-band home wireless networking set. Each node has a 10/100/1000Mbps WAN/LAN adaptive port, a 10/100/1000Mbps adaptive LAN port, and a wireless transmission rate of 1167Mbps.

2. Specification

Product Name Gigabit Ethernet Port Mesh Router Remark
Product Type LAN uplink (compatible with WIFI uplink) device
Model ZBT-L6
WAN 1*10/100/1000M Auto MDI/MDIX WAN /LAN Port
LAN 1*10/100/1000M Auto MDI/MDIX LAN Port
WLAN 2.4G 300Mbps,5G 867Mbps
Hardware Main Chipset RTL8197FS-VE5
Main Frequency 1GHz
FLASH 16MByte SOP8
RAM 128MByte
Adapter 12V1A
LED 1*Integrated indicator (Red, Green, Yellow)
Button Reset
Antenna 2*3dBi internal antenna
Wireless Rate 1167Mbps
Wireless Protocol 802.11b/g/n 2.4GHz; 802.11ac/a/n 5GHz.
Wired Protocol 802.3；802.3u
MESH networking standard 802.11s
Roaming standard 802.11v/r

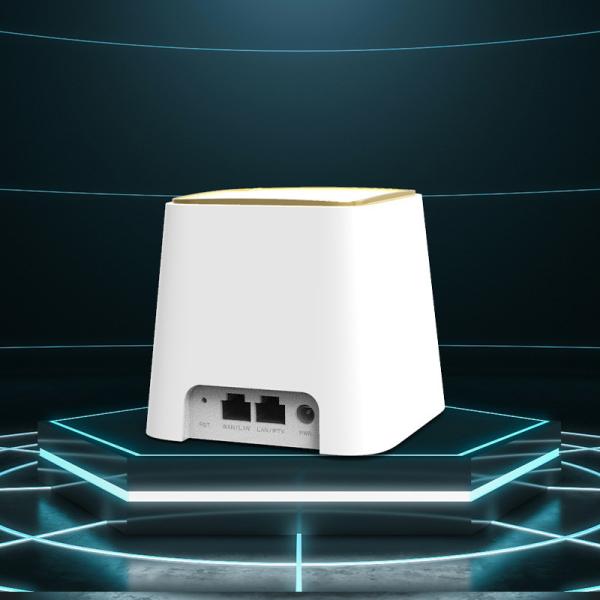

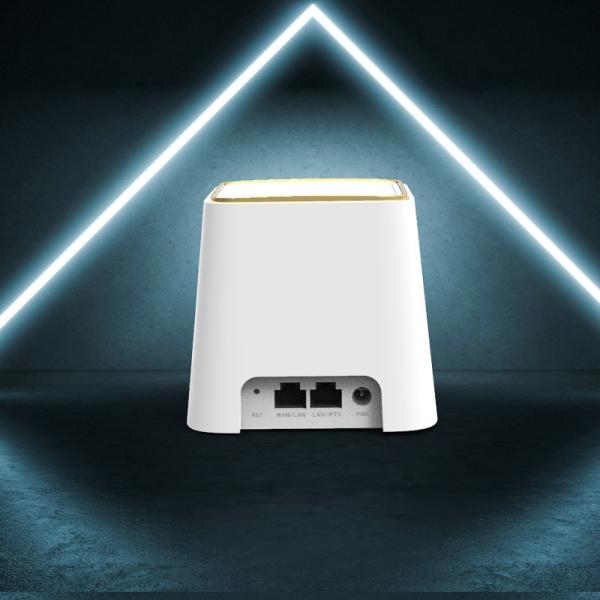

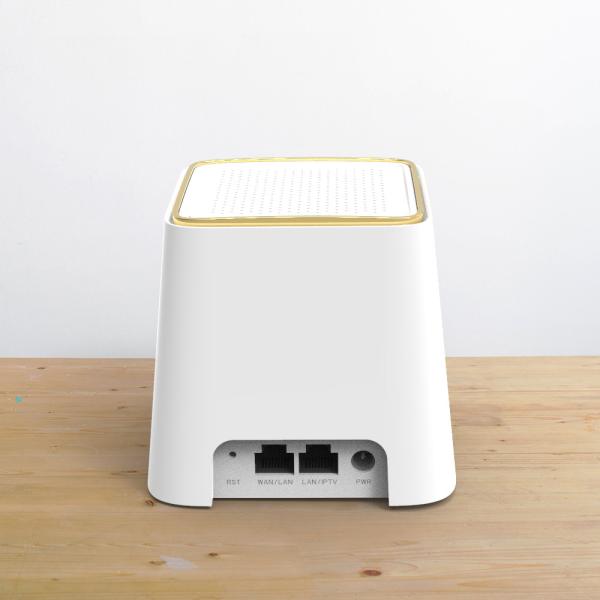

3.Interface

Type Demand item Specification

Wire Interface

 WAN 1*10/100/1000 Base-T Interface,IEEE802.3/802.3u,Support full-duplex / half-duplex flow control.
LAN 1*10/100/1000 Base-T Interface,IEEE802.3/802.3u,Support full-duplex / half-duplex flow control.

Power Interface

1*Power Interface, The router is powered by an external power adapter. The external power adapter should:

1. Meet the EMC requirements of YD/T 983 and pass CCC certification;

2. Input voltage: 198-242V ~ 50Hz;

3. Output voltage DC: 12V ± 5%, ripple range ± 200mV, output current: 1A;

4. The MTBF time of the power supply is: greater than 30,000 hours;

5. The power supply interface of the device itself and the DC output interface of the power adapter should be a unified international standard circular interface with a DC head diameter of 2.1 mm;

6. The adapter's DC output power cord can be optionally equipped with an EMI absorption magnetic ring;

7. Under normal conditions, the insulation resistance between the metal casing of the equipment and the power line should be not less than 50MΩ.

8, should have lightning protection against surge test, lightning protection level of at least 1.5KV.

Wireless Interface

Wi-Fi Networking

802.11b/g/n/ a/ac,2.4GHz/5GHz,Wireless rate 1167Mbps；

2* Internal 3dBi Omnidirectional dual frequency antenna.

The Current wifi Device quantity can highly reach to 40

4.Button and LED

Button and LED Function Description
Reset Press and hold the RST button for 6 seconds, then the indicator light flashes and then releases. The indicator light turns on and the system restarts. The last reply flashes to restore the factory settings.
LED

Long green light: good connection quality

Long yellow: the connection quality is normal

Red long light: connection failed
