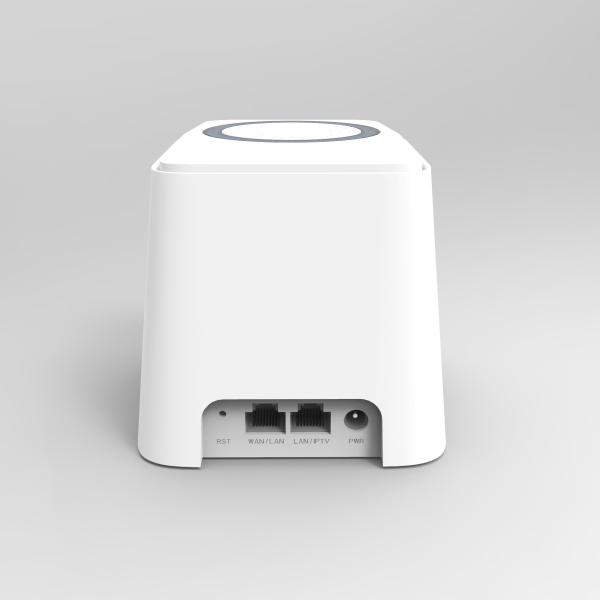

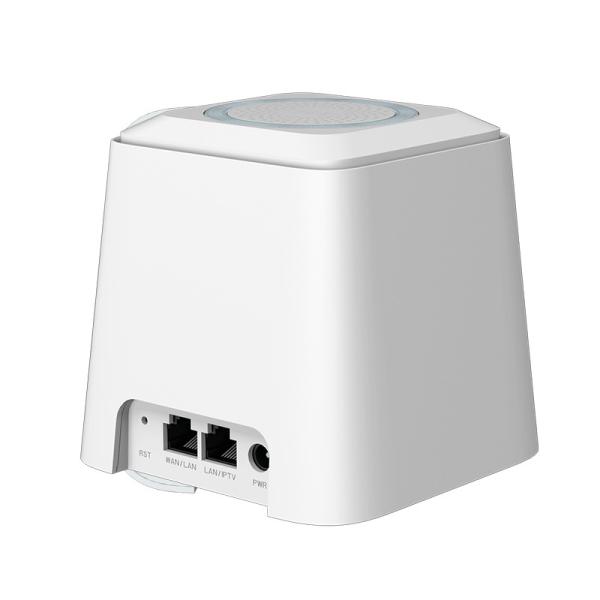

10/100M Ethernet Port 2.4G 5.8G 1200Mbps Mesh Wifi Router
10/100M Ethernet Port 2.4G 5.8G 1200Mbps Mesh Wifi Router
10/100M Ethernet Port 2.4G 5.8G 1200Mbps Mesh Wifi Router
10/100M Ethernet Port 2.4G 5.8G 1200Mbps Mesh Wifi Router
10/100M Ethernet Port 2.4G 5.8G 1200Mbps Mesh Wifi Router
10/100M Ethernet Port 2.4G 5.8G 1200Mbps Mesh Wifi Router
Specifications
Brand Name :
ZBT
Model Number :
ZBT-L1
Certification :
FCC/CE
Place of Origin :
China
MOQ :
1unit
Price :
18-23
Payment Terms :
T/T
Supply Ability :
100000units per month
Delivery Time :
3-25days
Packaging Details :
50units/carton
WAN Port :
1*10/100M Auto MDI/MDIX WAN /LAN Port
LAN Port :
1*10/100M Auto MDI/MDIX LAN Port
WLAN :
2.4G 300Mbps，5G 867Mbps
Main Chipset :
RTL8197FNT-VE4-CG
Main Rate :
600MHz
FLASH :
8MByte
RAM :
64MByte
Wireless Rate :
1167Mbps
Buttom :
Reset
Antenna :
2*3dBi internal antenna
Description

1,Simple Introduction

MESH Routing System ZBT-L1 is a dual-band home wireless networking suite. Each node has a 10/100Mbps WAN/LAN adaptive port, a 10/100Mbps adaptive LAN port, and a wireless transmission rate of 1167Mbps.

2,Specification

Product name 10/100M Ethernet Port Mesh Router Remark
Type LAN uplink (compatible with WIFI uplink) device
Model ZBT-L1
WAN Port 1*10/100M Auto MDI/MDIX WAN /LAN Port
LAN Port 1*10/100M Auto MDI/MDIX LAN Port
WLAN 2.4G 300Mbps,5G 867Mbps
Hardware Main Chipset RTL8197FNT-VE4-CG
Main Rate 600MHz
FLASH 8MByte SOP8
RAM 64MByte
Adapter 9V1A
LED 1*Integrated indicator (Red,Green,Yellow)
Buttom Reset
Antenna 2*3dBi internal antenna
Wireless Rate 1167Mbps
Wireless Protocol 802.11b/g/n 2.4GHz; 802.11ac/a/n 5GHz
Wired Protocol 802.3；802.3u
MESH networking standard 802.11s
Roaming standard 802.11v/r

3,Interface

Type Demand item Specification
Wire Interface WAN Port 1*10/100 Base-T Interface,IEEE802.3/802.3u Protocol, Support full-duplex / half-duplex flow control.
LAN Port 1*10/100 Base-T Interface,IEEE802.3/802.3u Protocol,Support full-duplex / half-duplex flow control.
Adapter

1*DC Port,the router is powered by an external power adapter. External power adapter should:

1. Meet the EMC requirements of YD/T 983 and pass CCC certification;

2. Input voltage: 198V-242V ~ 50Hz;

3. Output voltage DC: 9V ± 5%, ripple range ± 100mV, output current: 1A;

4. The MTBF time of the power supply is: greater than 30,000 hours;

5. The power interface of the device itself and the DC output interface of the power adapter should be a unified international standard circular interface, and the DC head diameter is 2.1mm;

6. The adapter's DC output power cord can be optionally equipped with an EMI absorption magnetic ring;

7. Under normal conditions, the insulation resistance between the metal casing of the equipment and the power line should be not less than 50MΩ.

8, should have lightning protection against surge test, lightning protection level of at least 1.5KV.
Wireless Port Wi-Fi Networking

802.11b/g/n/a/ac;2.4GHz/5GHz,Wireless Rate 1167Mbps.

2* Internal 3dBi Omnidirectional dual frequency antenna.

The Current wifi Device quantity can highly reach to 32

4. Button and LED

Button and LED Function Description
Reset Press and hold the RST button for 6 seconds, then the indicator light flashes and then releases. The indicator light turns on and the system restarts. The last reply flashes to restore the factory settings.
LED

Long green light: good connection quality

Long yellow: the connection quality is normal

Red long light: connection failed


10/100M Ethernet Port 2.4G 5.8G 1200Mbps Mesh Wifi Router10/100M Ethernet Port 2.4G 5.8G 1200Mbps Mesh Wifi Router10/100M Ethernet Port 2.4G 5.8G 1200Mbps Mesh Wifi Router
