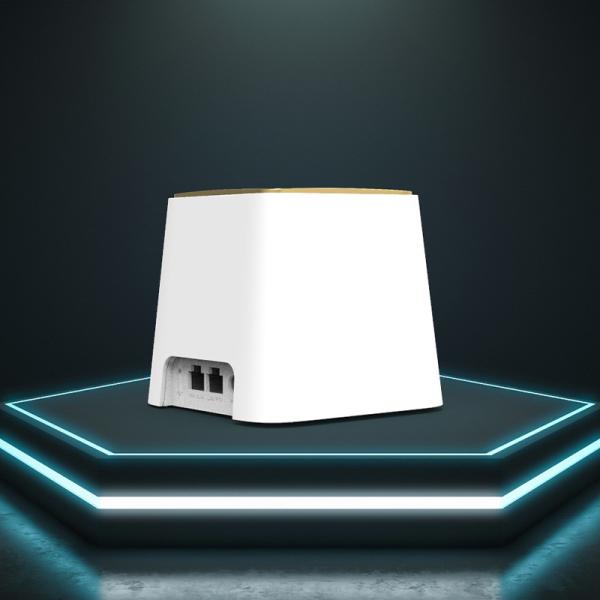

300Mbps 100M RLK Mesh Wifi Router RTL8197FNT-VE4-CG
300Mbps 100M RLK Mesh Wifi Router RTL8197FNT-VE4-CG
300Mbps 100M RLK Mesh Wifi Router RTL8197FNT-VE4-CG
300Mbps 100M RLK Mesh Wifi Router RTL8197FNT-VE4-CG
Specifications
Brand Name :
ZBT/OEM/ODM
Model Number :
L1
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
3pcs
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,paypal
Supply Ability :
80000pcs/month
Delivery Time :
for samples, less than 1 week; for bulk order 25 days
Packaging Details :
3pcs 1set be installed in a gift, 10set use 1carton
Product Name :
Mesh wifi router dual band wirelsss router 100M 3pcs 1 set RLK chipset
Application :
Home
Chipset :
RTL8197FNT-VE4-CG
Frequency :
2.4GHz +5.8GHz
Warranty :
1 Year
Standards And Protocols :
Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac
Flash/Ram :
8MB Flash/64MB Ram
Interface :
1WAN+1LAN
Key word :
Mesh wifi router dual band wirelsss router 100M 3pcs 1 set RLK chipset
Firmware :
SDK from RTL
Description

Mesh wifi router dual band wirelsss router 100M 3pcs 1 set RLK chipset

Product Description

Specification

Mesh wifi router dual band wirelsss router 100M 3pcs 1 set RLK chipset

MESH Routing System ZBT-L1 is a dual-band home wireless networking suite. Each node has a 10/100Mbps WAN/LAN adaptive port, a 10/100Mbps adaptive LAN port, and a wireless transmission rate of 1167Mbps.

Product name 10/100M Ethernet Port Mesh Router Remark
Type LAN uplink (compatible with WIFI uplink) device
Model ZBT-L1
WAN Port 1*10/100M Auto MDI/MDIXWAN /LAN Port
LAN Port 1*10/100M Auto MDI/MDIXLAN Port
WLAN 2.4G 300Mbps,5G 867Mbps
Hardware Main Chipset RTL8197FNT-VE4-CG
Main Rate 600MHz
FLASH 8MByte SOP8
RAM 64MByte
Adapter 9V1A
LED 1*Integrated indicator (Red,Green,Yellow)
Buttom Reset
Antenna 2*3dBi Dual frequency omnidirectional internal antenna
Wireless Rate 1167Mbps
Wireless Protocol

2.4GHz:802.11b/g/n ;

5.8GHz:802.11ac/a/n
WiredProtocol 802.3;802.3u
MESH networking standard 802.11s
Roaming standard 802.11v/r

300Mbps 100M RLK Mesh Wifi Router RTL8197FNT-VE4-CG300Mbps 100M RLK Mesh Wifi Router RTL8197FNT-VE4-CG

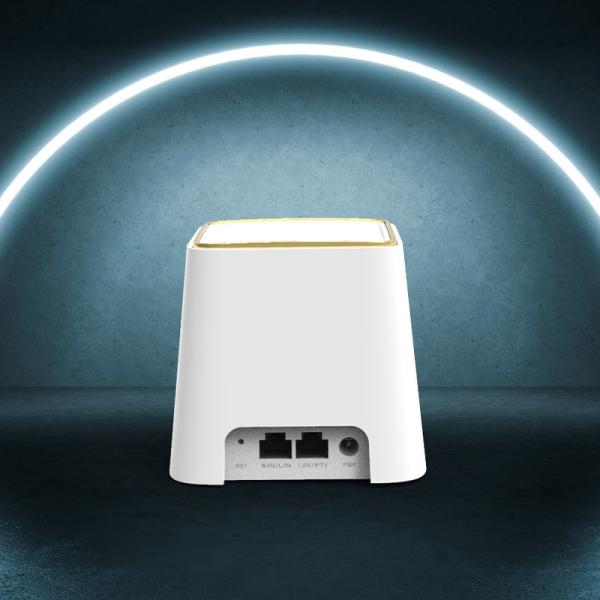

Button and LED Function Description
Reset Press and hold the RST button for 6 seconds, then the indicator light flashes and then releases. The indicator light turns on and the system restarts. The last reply flashes to restore the factory settings.
LED

Long green light: good connection quality

Long yellow: the connection quality is normal

Red long light: connection failed
