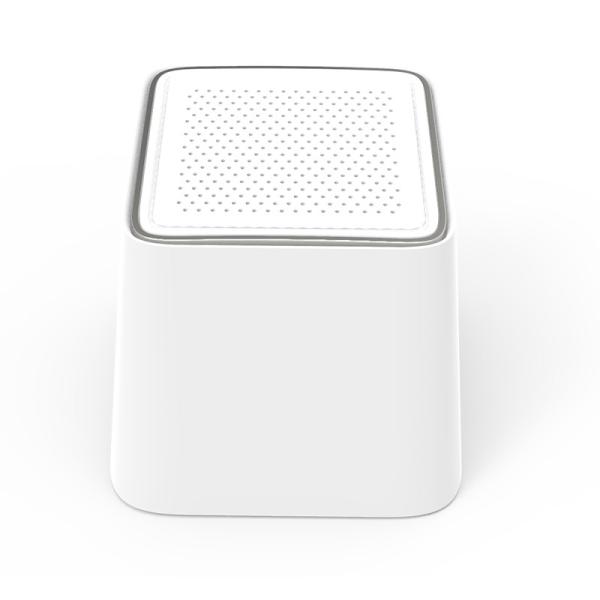

Dual Band 2.4G 5.8G 867Mbps Gigabit Mesh Router for home
Dual Band 2.4G 5.8G 867Mbps Gigabit Mesh Router for home
Dual Band 2.4G 5.8G 867Mbps Gigabit Mesh Router for home
Dual Band 2.4G 5.8G 867Mbps Gigabit Mesh Router for home
Specifications
Brand Name :
OEM
Model Number :
ZBT-L6
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
3pcs
Price :
negotiable
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
10000pcs
Delivery Time :
For samples 5-7days；for bulk order 25-30days
Packaging Details :
20pcs/Carton
Chipset :
RTL8197FN+RTL8812BR+SKY85735-21
Interface :
1 LAN /1 WAN
Warranty :
1 year
Wifi Channel :
2.4G&5.8G
Management :
Web management
Packing :
3pcs-Pack
Description

Dual Band Gigabit Mesh System Mesh Wifi Router Signal Extend For Home Wifi Coverage

What's the differences between Wifi Reapter and Mesh Router:

1. Larger Wi-Fi indoor Coverage: About 5,500 sq.ft for one pack
2. Easy management: No need setting, out of the box. One Wifi, one password.

3. Wireless roaming: 3 pcs mesh devices connect network automatically

Main Features:

  • Using RTL8197F solution, MIPS 24Kc, main frequency up to 1GHZ
  • Protocol: IEEE802.11n/g/b/a/ac and IEEE802.3/802.3u/802.3ab
  • 2.4G rate up to 300Mbps, 5.8G rate up to 867Mbps, both support 2T2R
  • Using high-speed 128MB DDR2, with 16MB Nor Flash
  • 1WAN, 1LAN full 1000M adaptive network port, support auto flip (Auto MDI/MDIX)
  • Support "one-key flashing mode"
  • Support WIFI MESH function
  • Easy Set up, web management
  • Built-in high-gain Omnidirectional 360 degree antennas

Specification:

Processor RTL8197F MIPS 24Kc, 1GHZ main frequency
2.4G WIFI Chipset

RTL8197F integrates 2.4G WIFI function

IEEE 802.11n/g/b, maximum rate 300Mbps, 2T2R
5.8G WIFI Chip RTL8812 IEEE 802.11ac/a, maximum rate 867Mbps, 2T2R
Ram DDR3 128 MB
Flash Nor Flash 16 MB

Ethernet interface

1* Wan port, 1000Mbps, Support Auto MDI/MDIX

Protocol: IEEE 802.3/802.3u/802.ab

1* Lan ports, 1000Mbps, Support Auto MDI/MDIX

Protocol: IEEE 802.3/802.3u/802.ab
Power interface DC5.0*2.1MM port
Button 1*reset button
Antennas 2*omnidirectional 3dbi 2.4G & 5.8G dual-band antennas
Network indicator

Red light means no internet.

Green light means internet is ready

Dual Band 2.4G 5.8G 867Mbps Gigabit Mesh Router for home

Dual Band 2.4G 5.8G 867Mbps Gigabit Mesh Router for home
