YBC050PKH-Q1 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi and Mini PCs
YBC050PKH-Q1 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi and Mini PCs
YBC050PKH-Q1 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi and Mini PCs
YBC050PKH-Q1 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi and Mini PCs
YBC050PKH-Q1 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi and Mini PCs
YBC050PKH-Q1 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi and Mini PCs
Specifications
Price :
$23.5-26.5/pieces
Delivery Time :
30-45days
MOQ :
100
Payment Terms :
T/T
Video Input :
HDMI
Model Number :
YBC050PKH-Q1(MPI5005)
Place of Origin :
China
Display Size :
5 inch
Type :
HDMI Display
Certification :
CE/ROHS
Supply Ability :
50K/Month
Supplier Type :
Factory
Brand Name :
YZY
Packaging Details :
16*15*6(cm)/259g
Description
YBC050PKH-Q1 5 Inch 1024*600 HDMI LCD Display with Capacitive Touch
High-quality 5-inch IPS TFT LCD display with capacitive touchscreen, designed for Raspberry Pi and other mini PCs. Features HDMI input, 5-point touch control, and broad compatibility with various platforms.
Key Features
  • 5-inch IPS full-view panel with 1024*600 resolution
  • HDMI input with scaling function supporting up to 1920*1080
  • 5-point capacitive touchscreen with USB connectivity (driver-free)
  • USB dimming function with PC software for brightness adjustment
  • FPC flexible cable for embedded installation
  • Built-in OSD menu for contrast, brightness, and power control
  • Compatible with Raspberry Pi, BeagleBone Black, Banana Pi, and mini PCs
  • Supports Raspbian, Ubuntu, WIN10 IOT (multi-touch, driver-free)
  • Windows 7/8/8.1/10/11 compatibility (5-point touch, USB driver-free)
  • Works with PS4, Xbox360, Nintendo game consoles
  • CE and RoHS certified
Technical Specifications
Parameter Specification
Size 5.0 inch
SKU MPI5005
Resolution 1024*600 dots
Touch 5 point capacitive touch
Audio Output Supported
Active Area 108.00 * 64.80 mm
Dimensions 121.11 * 95.24 mm
Weight 259 g (package included)
Product Dimensions
YBC050PKH-Q1 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi and Mini PCs

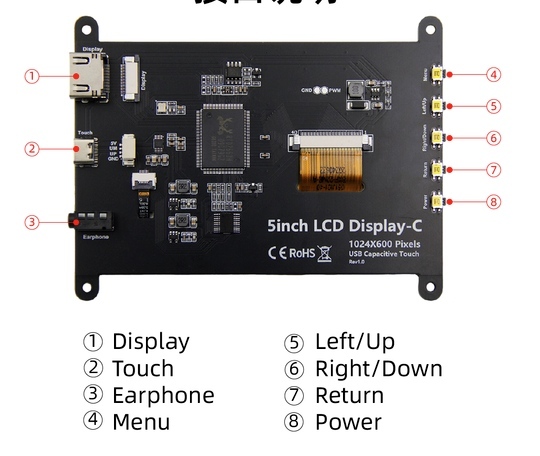

Hardware Interface Description
YBC050PKH-Q1 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi and Mini PCs
  • ① HDMI Interface: Connects motherboard for HDMI signal transmission
  • ② USB Touch/Power: Provides power and touch output (use either port)
  • ③ Earphone Jack: 3.5mm audio output
  • ④ Menu Button: Access OSD settings/selection
  • ⑤ Left/Up: Navigation keys (backlight shortcut)
  • ⑥ Right/Down: Navigation keys (backlight shortcut)
  • ⑦ Return Button: Back to previous menu
  • ⑧ Power Button: Turn display on/off to save power
