Specifications
Brand Name :
YZY
Model Number :
YQ84-7
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
100
Price :
$23.5-26.5/pieces
Payment Terms :
T/T
Supply Ability :
50K/Month
Delivery Time :
30-45days
Packaging Details :
154*143*38(mm)/180g
Type :
IPS TFT Screen
Display Size :
7 inch
Supplier Type :
Factory
Video Input :
HDMI
Description
7 Inch 800x480 HDMI Display CTP IPS TFT Touch Screen for Raspberry Pi
Product Description
7’’ standard display, 800 × 480 Hardware resolution, Up to 1920x1080 software configuration
resolution.
capacitive touch screen, maximum support 5 point touch
support backlight control alone, the backlight can be turned off to save power
support Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC
can be used as general-purpose-use HDMI monitor, for example: connect with a computer
HDMI as the sub-display
used as a raspberry pi display that supports Raspbian, Ubuntu, Kali-Linux, Kodi, win10 IOT,
single-touch, free drive
work as a PC monitor, support win7, win8, win10 system 5 point touch (XP and older version
system: single-point touch), ,free drive
CE, RoHS certification
Product Parameters
Size 7.0 inch
SKU MPI7001
Resolution 800 × 480 dots
Touch 5 point capacitive touch
Dimensions
164.9 * 124.27 (mm)
Weight 380 g (package included)
Hardware Description
7 Inch IPS TFT Screen With 5 Point Touch / Raspberry Pi Compatibility

①Backlight Power switch: Controls the backlight turned on and off to save power.
②③USB Touch / power supply connector: For power supply and touch output, the functions of the both
are the same, can just use one of them.
④HDMI interface: For connecting motherboard and LCD monitor to HDMI transmission.
【How to use with Raspbian/Ubuntu Mate/Win10 IoT Core System】
Step 1, Install Raspbian official image
1) Download the latest image from the official download.
2) Install the system according to the official tutorial steps.
Step 2, Modify the “config.txt”
After the programming of Step 1 is completed, open the config.txt file of Micro SD Card root directory and add
the following code at the end of the file, save and eject Micro SD Card safely:
max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_drive=1
hdmi_cvt 800 480 60 6 0 0 0
Step 3, Insert the Micro SD Card to Raspberry Pi, connect the Raspberry Pi and LCD by HDMI cable; connect USB cable to one of the four USB ports of Raspberry Pi, and connect the other end of the USB cable to the USB port of the LCD; then supply power to Raspberry Pi; after that if the display and touch both are OK, it means drive successfully (please use the full 2A for power supply).
How to rotate display direction:
1. Open the “config.txt” file (the “config.txt” file is located in /boot):
sudo nano /boot/config.txt
2. Add the statement in the “config.txt” file, press Ctrl+X to exit, press Y to save.
display_rotate=1 #0: 0; 1: 90; 2: 180; 3: 270
3. Restart the Raspberry Pi after saving.
sudo reboot
How to rotate Touch direction:
After the display is rotated, the touch needs to be modified.
1. Install libinput
sudo apt-get install xserver-xorg-input-libinput
2. Create the xorg.conf. D directory in /etc/x11 / below (if the directory already exists, this will proceed directly to step 3)
sudo mkdir/etc/X11/xorg.conf.d
3. Copy the file “40-libinput.conf” to the directory you just created.
sudo cp /usr/share/X11/xorg.conf.d/40-libinput.conf /etc/X11/xorg.conf.d/

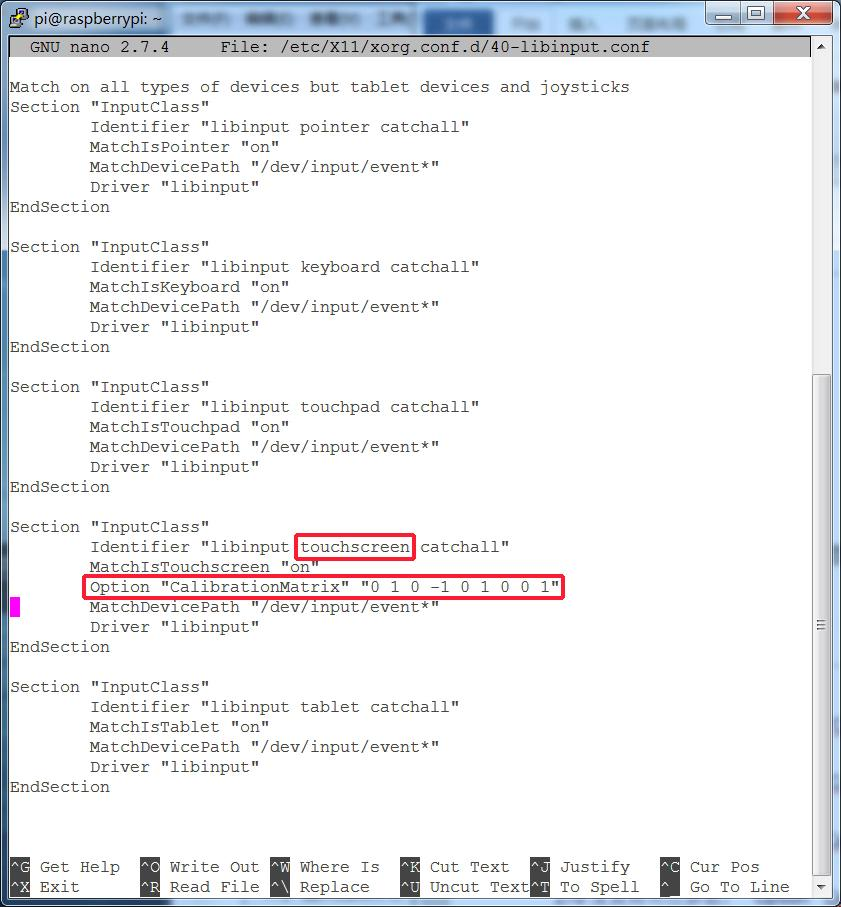

4. Edit “/etc/X11/xorg.conf.d/40-libinput.conf”
sudo nano /etc/X11/xorg.conf.d/40-libinput.conf
Find a part of the touchscreen, add the following statement inside, press Ctrl+X to exit, press Y to save.
Option "CalibrationMatrix" "0 1 0 -1 0 1 0 0 1"
7 Inch IPS TFT Screen With 5 Point Touch / Raspberry Pi Compatibility
5. Restar your Raspberry Pi
sudo reboot
Complete the above steps for a 90 degree rotation.
Note:
0 degrees of rotation parameters: Option "CalibrationMatrix" "1 0 0 0 1 0 0 0 1"
90 degrees of rotation parameters: Option "CalibrationMatrix" "0 1 0 0-1 1 0 0 1"
180 degrees of rotation parameters: Option "CalibrationMatrix" "-1 0 1 0 -1 1 0 0 1"
270 degrees of rotation parameters: Option "CalibrationMatrix" "0-1 1 1 0 0 0 0 1"
How to use as PC monitor
connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable
Connect the LCD's USB Touch interface (Either of the two MicroUSB) to the USB port of the device
If there are several monitors, please unplug other monitor connectors first, and use LCD as the only
monitor for testing.
