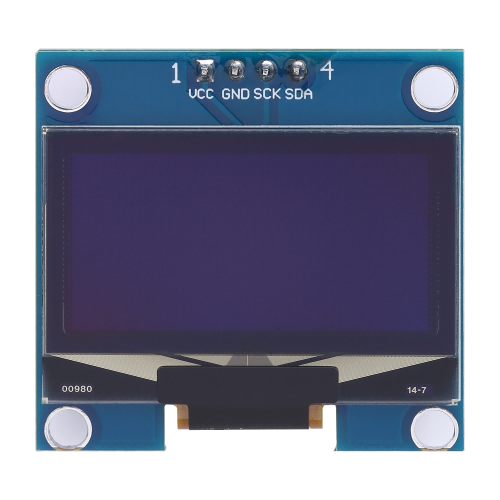

1.3 Inch White OLED Display 128x64 I2C 4-Pin SH1106 3.0V Wide Temperature
1.3 Inch White OLED Display 128x64 I2C 4-Pin SH1106 3.0V Wide Temperature
1.3 Inch White OLED Display 128x64 I2C 4-Pin SH1106 3.0V Wide Temperature
1.3 Inch White OLED Display 128x64 I2C 4-Pin SH1106 3.0V Wide Temperature
1.3 Inch White OLED Display 128x64 I2C 4-Pin SH1106 3.0V Wide Temperature
1.3 Inch White OLED Display 128x64 I2C 4-Pin SH1106 3.0V Wide Temperature
Specifications
Brand Name :
YZY
Model Number :
YOK0130MGI-X1
Certification :
CE, ROHS
Place of Origin :
Guangdong, China
MOQ :
5 pieces
Price :
$2.59~4.35/pieces
Payment Terms :
T/T
Supply Ability :
10000 pieces
Delivery Time :
14-60 days
Packaging Details :
5*5*3
Description
1.3 Inch White OLED Display 128x64 I2C 4-Pin SH1106 3.0V Wide Temperature
This industrial-grade 1.3-inch white OLED module features advanced COG (Chip On Glass) packaging design, driven by professional SH1106 driver IC with 1/64 Duty driving scheme. It offers 128x64 dot matrix pure white display, 4-pin I2C interface, extreme wide temperature adaptation range (-40~+80℃ operating, -45~+85℃ storage), and compact structural dimensions (35.50mm PCB length, 34.50mm OLED length, 3.0mm max thickness). Ideal for industrial control, portable electronics, smart devices, measuring instruments and embedded display systems with strict space, performance and harsh environment adaptation requirements.
Product Specifications
Display Type 1.3" Passive Matrix White OLED Module (Positive Mode)
Model YOK0130MGI-X1
Part Number OLED1.3
Driver IC SH1106
Driving Scheme 1/64 Duty
Logic Voltage (VDD) 3.0V DC
Interface Type I2C (IIC, Serial Interface)
Pin Number 4PIN
Operating Temperature -40℃ ~ +80℃ (Extreme Wide Temperature)
Storage Temperature -45℃ ~ +85℃
Connection Type COG (Chip On Glass)
PCB Length 35.50mm
OLED Length 34.50mm
Max Overall Thickness 3.0mm
OLED Thickness 1.40±0.1mm
PCB Thickness 1.20mm
Active Area (A/A) 29.42mm(L)
Viewing Area (V/A) 31.42mm(L)
Hole Dimension 30.50mm(L)
Pixel Resolution 128x64 Pixels
Dot Pitch 0.23mm
Unnoted Tolerance ±0.2mm
Display Color Pure White
Compliance Standard RoHS (EU Environmental Instructions)
Product Features
  • 1.3-inch 128x64 dot matrix pure white OLED display for clear, sharp text and graphic presentation
  • SH1106 dedicated driver chip with 1/64 Duty driving scheme for ultra-stable performance and strong anti-interference
  • Standard 4-pin I2C serial interface with high compatibility for all mainstream microcontrollers and development boards
  • Fixed 3.0V logic voltage supply, perfectly matching most low-voltage electronic system power supplies
  • Extreme wide temperature range (-40~+80℃ operating, -45~+85℃ storage) for harsh industrial and outdoor environments
  • Compact structural design with 3.0mm max thickness, ideal for space-constrained embedded applications
  • Precise mechanical parameters with ±0.2mm unnoted tolerance, ensuring stable assembly and consistent product quality
  • High precision 0.23mm dot pitch for delicate and clear display effects of small characters and graphics
  • Optimized active area (29.42mm) for efficient visual information transmission and display
  • RoHS compliant materials and components, meeting EU environmental protection requirements for global market sales
  • Industrial-grade structural design, supporting long-term continuous and stable operation in complex working conditions
  • Low power consumption characteristic of OLED technology, suitable for battery-powered portable and IoT devices
  • Strict material selection and production process, complying with international industrial electronic component standards
Product Applications
  • Industrial control equipment and intelligent operation panels with white monochrome display requirements
  • Portable measuring instruments, precision electronic meters and handheld professional testers
  • Small handheld smart devices, industrial handheld terminals and compact embedded display modules
  • IoT sensor nodes, low-power smart monitoring equipment and industrial data display terminals
  • Automotive electronic auxiliary display components and vehicle-mounted small display screens
  • Smart home appliance control panels and monochrome display screens for home electronic devices
  • Medical portable devices, health monitoring equipment and professional medical display instruments
  • Consumer electronics, battery-powered small display products and digital peripheral equipment
  • Industrial meters, smart wearables with extreme wide temperature adaptation requirements
  • Professional test and measurement equipment and industrial automation control display terminals
  • DIY electronic projects, microcontroller development boards and open-source hardware display accessories
  • Smart card readers, portable payment terminals and small financial electronic display components
  • Outdoor electronic equipment and field detection instruments with harsh environment adaptation needs
Technical Documentation
1.3 Inch White OLED Display 128x64 I2C 4-Pin SH1106 3.0V Wide Temperature
Application Examples
1.3 Inch White OLED Display 128x64 I2C 4-Pin SH1106 3.0V Wide Temperature
Company Profile
Yingzhan Ying Technology was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.

The company's products include OLED modules, Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields, making it a supplier to many well-known clients worldwide.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance, complying with the stated tolerance and technical parameters.
Do you supply samples?
Yes, we provide samples for evaluation, supporting small batch testing for your project development.
What is the delivery time?
Typically 7 working days after payment confirmation for both sample and bulk orders.
What is the minimum order quantity?
1 piece minimum order quantity, supporting individual purchase for prototyping and small projects.
What if we receive missing or defective items?
Please contact us immediately with product photos and order information, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including various size LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments for all orders, both sample and bulk.
What shipping methods do you offer?
DHL and China Post shipping services available, covering global delivery for your convenience.
