YZY 2.76 Inch Round Screen HDMI LCD Display with IPS LED Backlight and 480x480 Resolution for HD Video Output
YZY 2.76 Inch Round Screen HDMI LCD Display with IPS LED Backlight and 480x480 Resolution for HD Video Output
YZY 2.76 Inch Round Screen HDMI LCD Display with IPS LED Backlight and 480x480 Resolution for HD Video Output
YZY 2.76 Inch Round Screen HDMI LCD Display with IPS LED Backlight and 480x480 Resolution for HD Video Output
YZY 2.76 Inch Round Screen HDMI LCD Display with IPS LED Backlight and 480x480 Resolution for HD Video Output
YZY 2.76 Inch Round Screen HDMI LCD Display with IPS LED Backlight and 480x480 Resolution for HD Video Output
YZY 2.76 Inch Round Screen HDMI LCD Display with IPS LED Backlight and 480x480 Resolution for HD Video Output
YZY 2.76 Inch Round Screen HDMI LCD Display with IPS LED Backlight and 480x480 Resolution for HD Video Output
Specifications
Brand Name :
YZY
Model Number :
YBN028JJH-Q1
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
100
Price :
$27.5-32.7/pieces
Payment Terms :
T/T
Supply Ability :
10K/Month
Delivery Time :
30-45days
Packaging Details :
300*120*60mm/900g
Type :
HDMI LCD Display 480x480
Display Size :
2.76 inch
Supplier Type :
Factory
Video Input :
HDMI
Brightness :
250cd/m²
Description
YZY 2.76 INCH Round Screen USB Type C LCM Display Module AIDA64 IPS LED Backlight HD Video Output Extended Screen

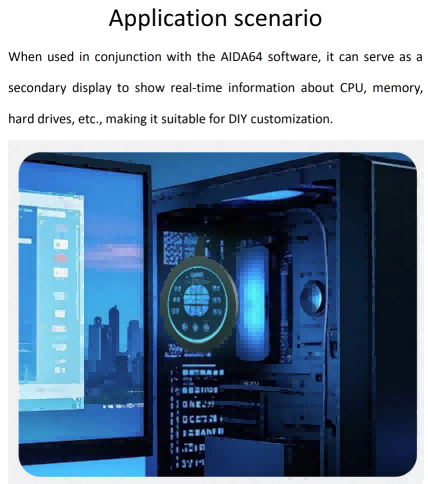

Computer secondary screen for real-time monitoring display with AIDA64 case DIY metal casing
Key Features
  • 1.1. Description
    The 2.8inchMPC2809 is an IPS full view high-definition display module with the following features:
    Resolution 480x480.
    Supports Mini-HDMI input
    Can be used as general-purpose-use HDMI monitor, for example: connect with a computer HDMI as the sub-display Those used as game console display,
    Used as a raspberry pi display that supports Raspberry Pi OS, Ubuntu,Kali-Linux, win10 IOT
    Work as a PC monitor, support win7, win10, win11 system , free drive

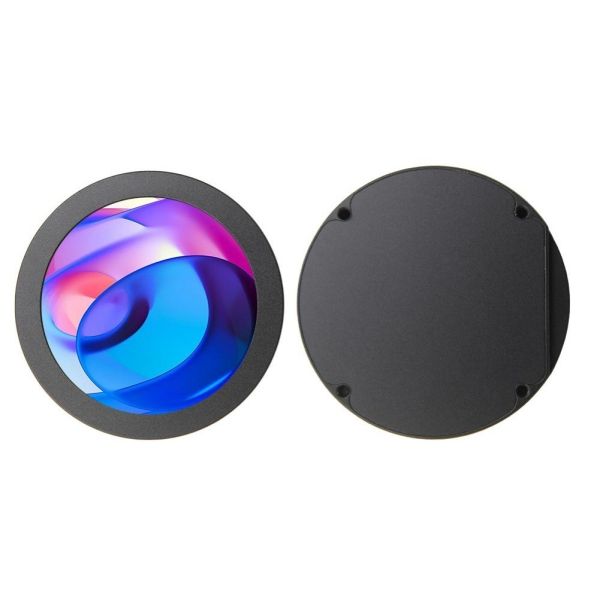

Product Image
YZY 2.76 Inch Round Screen HDMI LCD Display with IPS LED Backlight and 480x480 Resolution for HD Video Output
Technical Specifications
Parameter Value Unit Parameter Value Unit
Model Name YBN028JJH-Q1 - Part No.
MPC2809
 -
LCD Size 2.76 inch Panel Type IPS -
Resolution 480 * 480 (RGB) pixels Active Area
70.13(W) x70.13(H)
 mm
View Angle 170 deg Outline Dimension
89.50(W ) ×89.50(H)×10.00(T)
 mm
Contrast 800 - Luminance (TYP) 250 cd/m²
Backlight Current 160 mA Backlight Type White LED -
Pixel Pitch
0.1461X 0.1462
 mm Operation Temperature -20 ~ 70 ℃
Video Input Mini HDMI - Storage Temperature -30 ~ 80 ℃
Voltage 5.0 V Power Type-C -
Weight 175 g Total Power (max) 0.9 W

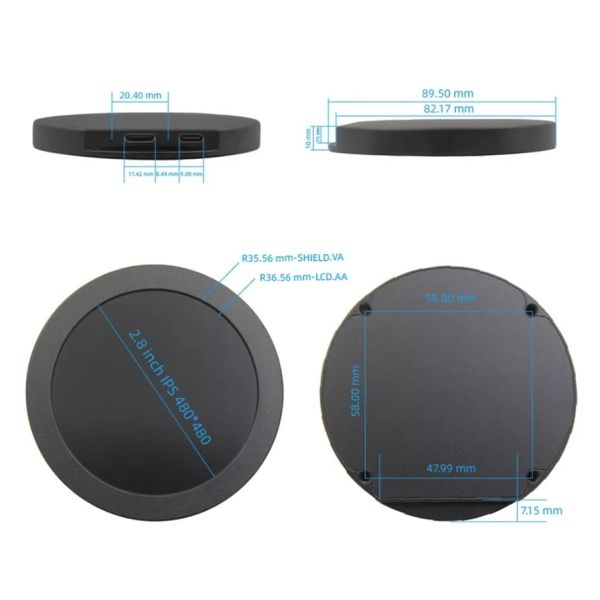

Product Drawings
YZY 2.76 Inch Round Screen HDMI LCD Display with IPS LED Backlight and 480x480 Resolution for HD Video Output
Interface and Switch Configuration
Interface Function Description
HDMI
For HDMI high-definition video input, connect the main device with a Mini HDMI cable
Backlight
Use the card pin to insert into the switch inside the press hole to adjust the brightness, press once to increase the brightness by 10%, long to turn off the screen
Type-C
Use the Type-C-USB connection cable to connect the interface, which is only used for power supply.
YZY 2.76 Inch Round Screen HDMI LCD Display with IPS LED Backlight and 480x480 Resolution for HD Video Output
