YZY 8.8 Inch HDMI LCD Display with 480x1920 Resolution and IPS Full-Angle Panel for Computer Secondary Screen
YZY 8.8 Inch HDMI LCD Display with 480x1920 Resolution and IPS Full-Angle Panel for Computer Secondary Screen
YZY 8.8 Inch HDMI LCD Display with 480x1920 Resolution and IPS Full-Angle Panel for Computer Secondary Screen
YZY 8.8 Inch HDMI LCD Display with 480x1920 Resolution and IPS Full-Angle Panel for Computer Secondary Screen
YZY 8.8 Inch HDMI LCD Display with 480x1920 Resolution and IPS Full-Angle Panel for Computer Secondary Screen
YZY 8.8 Inch HDMI LCD Display with 480x1920 Resolution and IPS Full-Angle Panel for Computer Secondary Screen
Specifications
Brand Name :
YZY
Model Number :
YBC088JVH-Q1(With Touch)/YBN088JVH-Q1(Without Touch)
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
100
Price :
$42-55/pieces
Payment Terms :
T/T
Supply Ability :
10K/Month
Delivery Time :
30-45days
Packaging Details :
300*120*60mm/900g
Type :
HDMI LCD Display 480x1920
Display Size :
8.8 inch
Supplier Type :
Factory
Video Input :
HDMI
Brightness :
500+cd/m²
Description
YZY 8.8 Inch HDMI 480*1920 Long-strip Display
Computer secondary screen for real-time monitoring display with AIDA64 case DIY metal casing
Key Features
  • 8.8-inch IPS full-angle panel with excellent viewing angles
  • HDMI video input compatibility
  • High resolution: 480 * 1920 pixels
  • Full protective shell with durable metal casing
  • Tempered glass panel with 6H hardness, scratch-resistant
  • Compatible with mainstream Mini PCs including Raspberry Pi, Banana PI, and BB Black
  • Raspberry Pi display support for Raspbian, Ubuntu, Kali, Win10 IoT systems
  • Computer monitor functionality supporting Win7, Win8, Win10, Win11 systems
  • Universal HDMI display connectivity

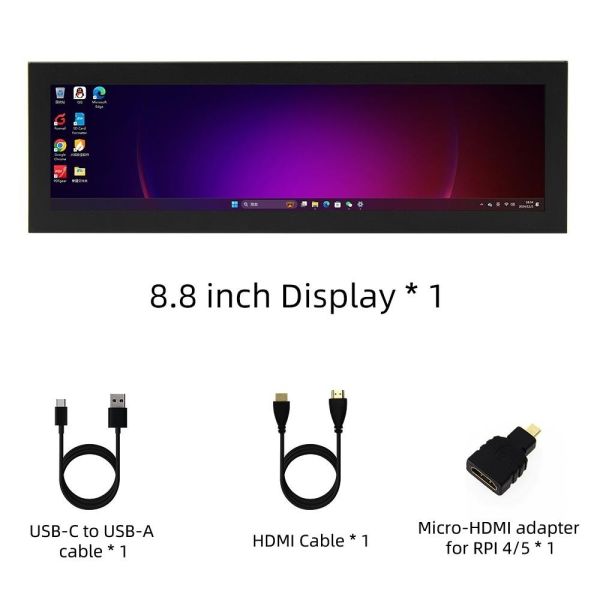

Product Image
YZY 8.8 Inch HDMI LCD Display with 480x1920 Resolution and IPS Full-Angle Panel for Computer Secondary Screen
Technical Specifications
ParameterValueUnitParameterValueUnit
LCD Size8.8inchPanel TypeIPS-
Resolution480 * 1920 (RGB)pixelsActive Area54.72(W) * 218.88(H)mm
Number of Colors16.7MOutline Dimension76.45(W) * 239.8(H) * 14.6(T)mm
View Angle170degLuminance (TYP)580 (No Touch) / 520 (Touch)cd/m²
Contrast800Backlight TypeWhite LED
Backlight Current160mAOperation Temperature-20 ~ 70℃
Pixel Pitch0.114 * 0.114mmStorage Temperature-30 ~ 80℃
Video InputHDMIPowerType-C
Voltage5.0VTotal Power (max)3.8W
Weight375 (No touch) / 425 (Touch)gPart No.MPC8801 (Touch) / MPC8802 (No Touch)

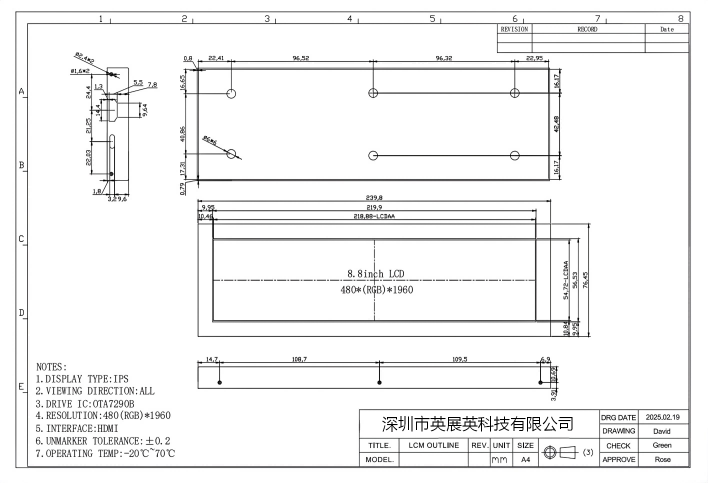

Product Drawings
YZY 8.8 Inch HDMI LCD Display with 480x1920 Resolution and IPS Full-Angle Panel for Computer Secondary Screen
Interface and Switch Configuration
InterfaceFunction Description
HDMIHDMI interface for connecting motherboard and LCD monitor for HDMI transmission
Type-CUSB Touch / power supply connector for power supply and touch output (both functions identical, use either one)

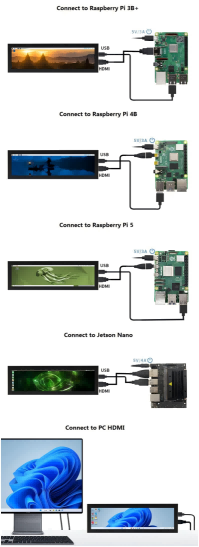

Connection Demonstration
YZY 8.8 Inch HDMI LCD Display with 480x1920 Resolution and IPS Full-Angle Panel for Computer Secondary Screen
