YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
Specifications
Brand Name :
YZY
Model Number :
YBC050PKH-Q1(MPI5005)
Certification :
CE/ROHS
Place of Origin :
China
MOQ :
500
Price :
$8.2-9.3/pieces
Payment Terms :
T/T
Supply Ability :
50K/Month
Delivery Time :
30-45days
Packaging Details :
16*15*6(cm)/259g
Type :
SPI Display
Display Size :
3.5 inch
Supplier Type :
Factory
Description
YBR035JGS-Q1 3.5-inch SPI Module with 480*320 Resolution and Resistive Touch
This LCD module utilizes a 4-wire SPI communication interface with ILI9488 driver IC, delivering 320*480 resolution with optional touch functionality. The complete module integrates LCD display, backlight control circuitry, and touch screen control circuitry.
Product Features
  • 3.5-inch color screen supporting 16-bit 65K color display for rich color reproduction
  • 480*320 high resolution with optional touch functionality
  • SPI serial bus interface requiring minimal I/O pins for display operation
  • SD card slot for easy experiment expansion and data storage
  • Comprehensive sample programs provided for rapid development
  • Military-grade process standards ensuring long-term stable operation
  • Complete underlying driver technical support available
Technical Specifications
Parameter Specification
Size 3.5 inch
SKU MSP3520 (With Touch) / MSP3521 (Without Touch)
Resolution 480*320 dots
Touch Resistive touch
Module Interface 4-wire SPI interface
Display Color RGB 65K color
Active Area 48.96*73.44 mm
Dimensions 56.34*98 mm
Operating Voltage 3.3V / 5V
Power Consumption 0.62W
Weight No touch: 45g / With touch: 57g

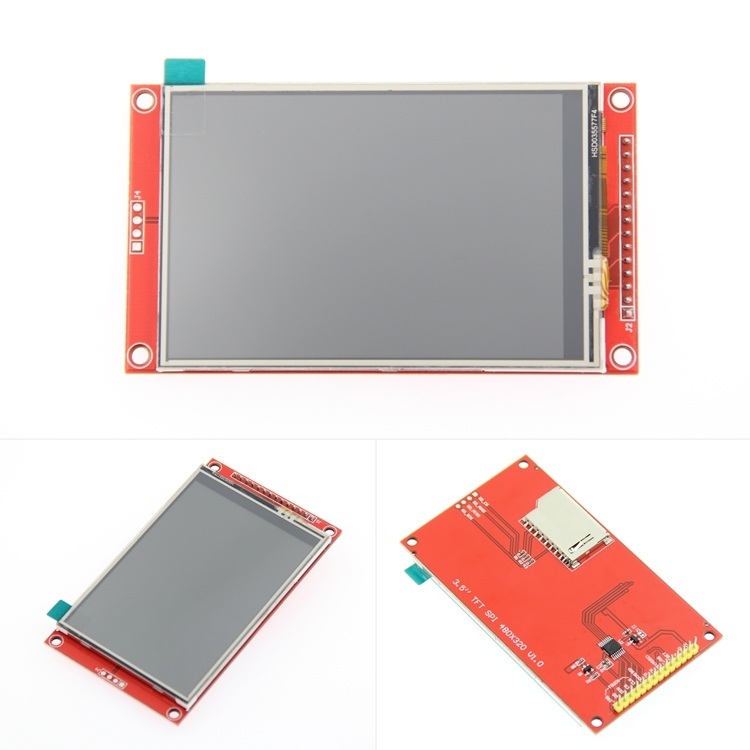

Product Appearance
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
Interface Description
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
