YBR032EGE-Q1(E32R32P) 3.2-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
YBR032EGE-Q1(E32R32P) 3.2-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
YBR032EGE-Q1(E32R32P) 3.2-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
YBR032EGE-Q1(E32R32P) 3.2-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
Specifications
Brand Name :
YZY
Model Number :
YBR032EGE-Q1(E32R32P)
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
500 pcs
Price :
$10.5-12.99/Piece
Payment Terms :
T/T
Supply Ability :
Up to 5,000 pcs/day
Delivery Time :
30 Working days
Size :
3.2 inch
Resolution :
240×320 Pixels
Touch Type :
No Touch / Resistive Touch(Optional)
Applications :
IoT Devices, HMI, Education, Prototyping
Description
YBR032EGE-Q1(E32R32P) 3.2-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
Product Overview
The E32R32Pand E32N32Pare two 3.2-inch IPS display modules with ESP32-WROOM-32E module main control. The E32R32Phas a resistive touch screen and the E32N32Pdoes not have a touch screen. Both products use the ST7789screen driver IC with a resolution of 240x320, which can be connected to a variety of peripherals, such as I2C and SPI interface devices, audio speakers, lithium batteries, MicroSD cards, serial ports, etc. E32R32Palso has touch function, which is greatly convenient for users to do various DIY.At the same time to meet the user for the Internet of things and human-computer interaction functiondevelopment.
Key Features
  • Comes with ESP32-32E module, easy development, sufficient development resources
  • 3.2-inch color screen, 240x320 resolution, maximum support 262K color (RGB666), display rich colors
  • IPS full viewing Angle panel, good viewing Angle
  • Rich interface, easy to connect a variety of peripherals (I2C, SPI, UART,etc.)
  • Supports external speakers to play audio
  • Comes with RGB three-color indicator, indicating rich status
  • Comes with resistive touch screen, easy man-machine interaction
  • Standard TYPE-C interface for easy program download and power supply
  • Equipped with micro TF card slot for easy storage expansion
  • Support external lithium battery, lightweight and portable
  • Equipped with battery charging management circuit to ensure safe battery charging and discharging
  • Provide rich example learning programs, easy to learn
  • Provide low-level driver technical support, and update WIKI information online
  • Multiple tests for module aging can meet military level standards, supporting long-term stable work

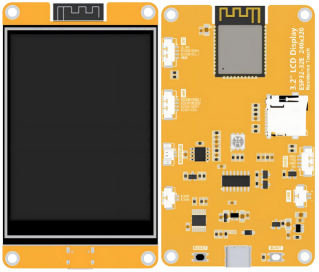

Product Image
YBR032EGE-Q1(E32R32P) 3.2-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
Technical Specifications

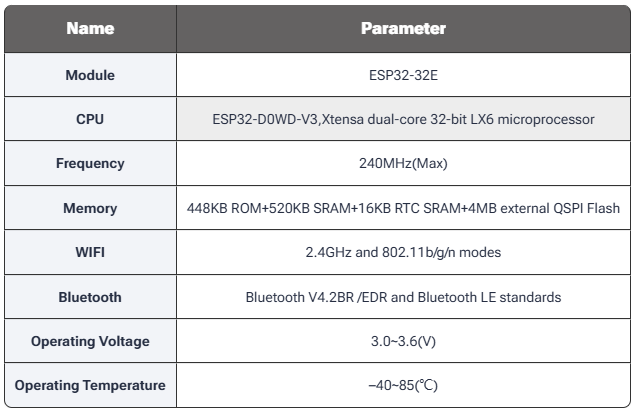

ESP32 Main Control Parameters
YBR032EGE-Q1(E32R32P) 3.2-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

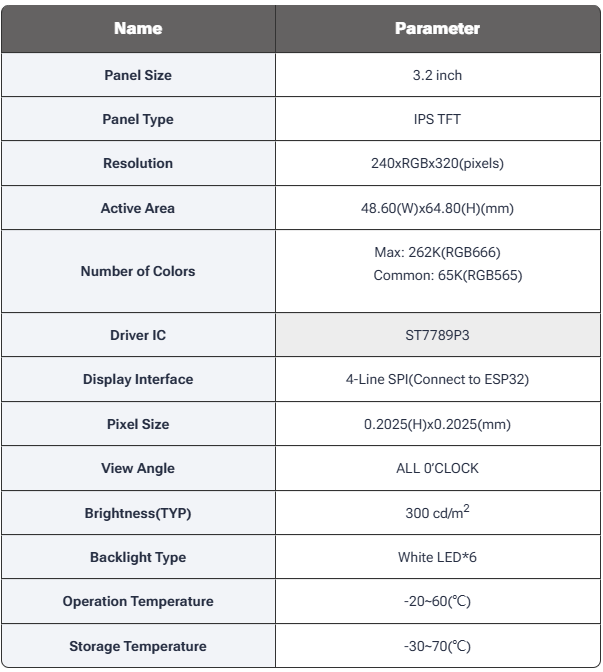

TFT Display Parameters
YBR032EGE-Q1(E32R32P) 3.2-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

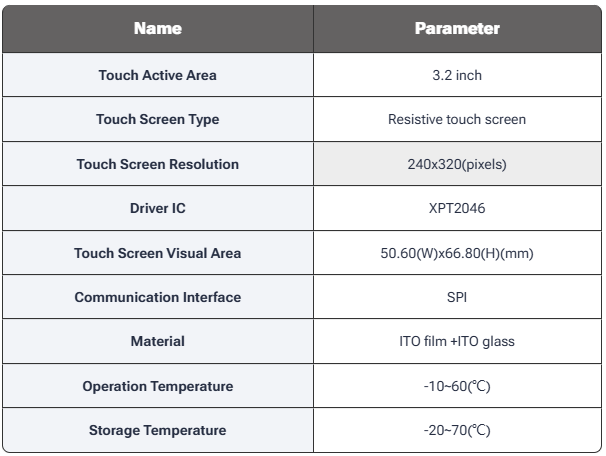

Touch Screen Parameters
YBR032EGE-Q1(E32R32P) 3.2-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

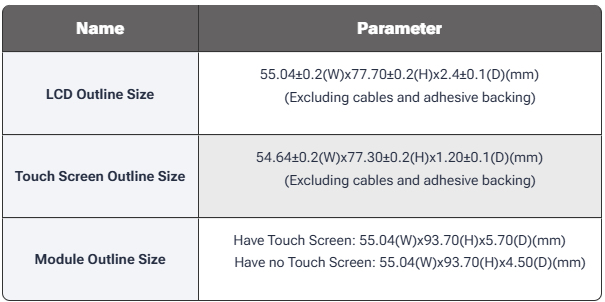

Size Parameters
YBR032EGE-Q1(E32R32P) 3.2-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

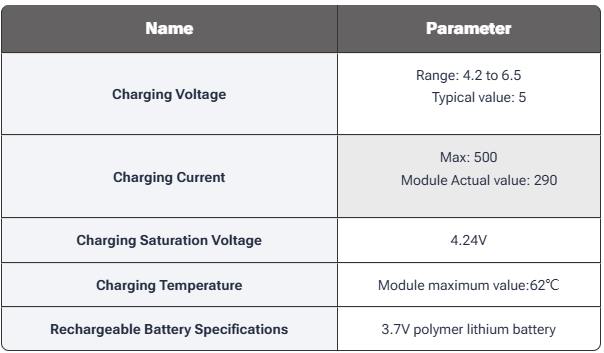

Battery Charging Parameters
YBR032EGE-Q1(E32R32P) 3.2-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

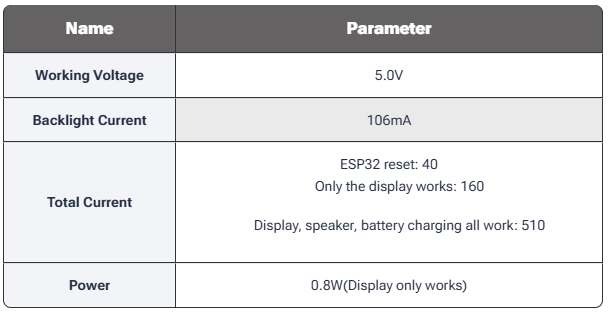

Electrical Parameters
YBR032EGE-Q1(E32R32P) 3.2-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

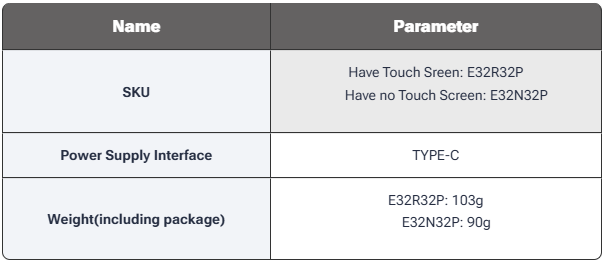

Other Parameters
YBR032EGE-Q1(E32R32P) 3.2-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

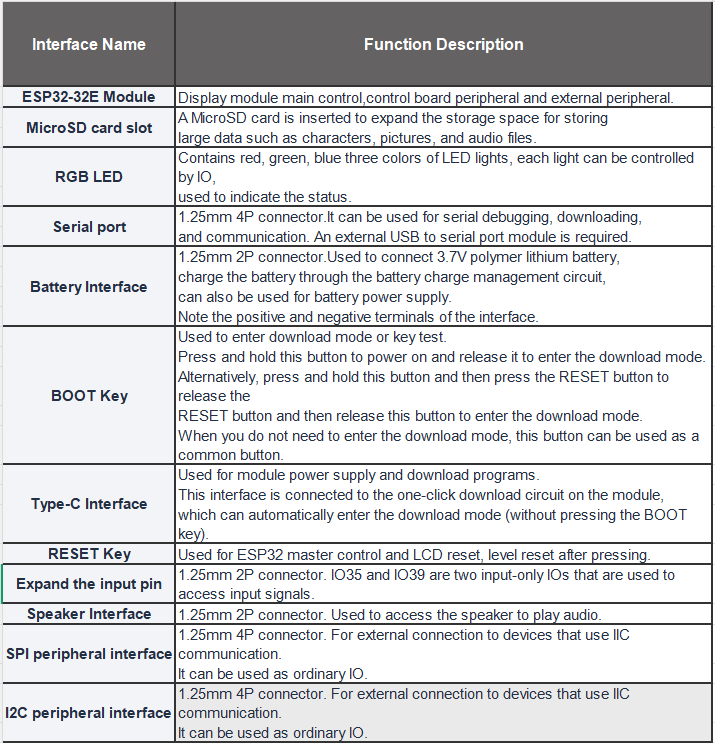

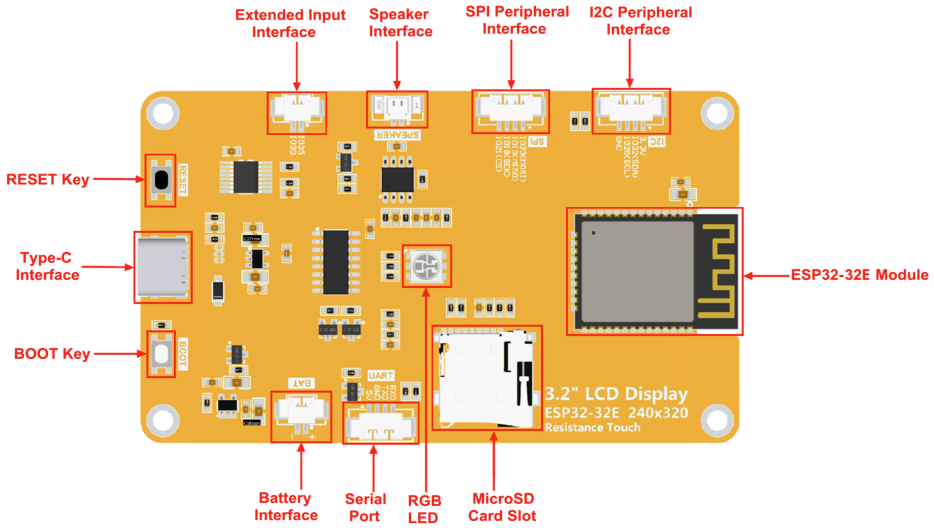

Product Interface
YBR032EGE-Q1(E32R32P) 3.2-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display ScreenYBR032EGE-Q1(E32R32P) 3.2-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

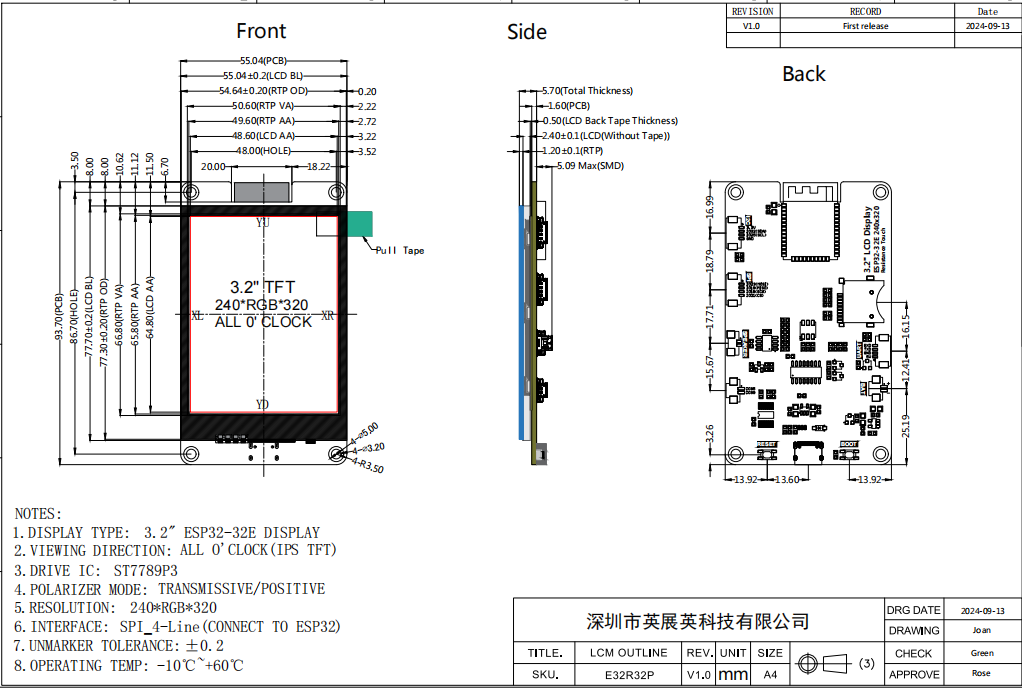

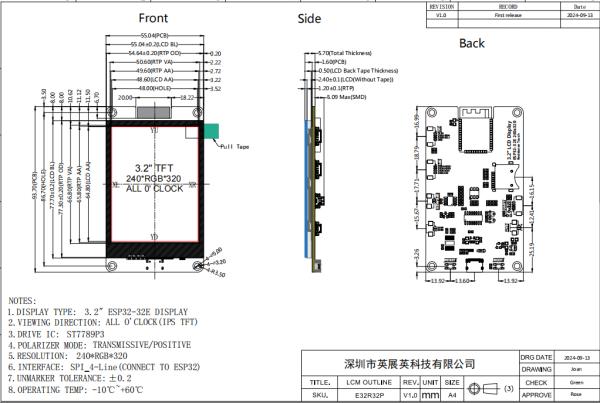

Product Dimensions
YBR032EGE-Q1(E32R32P) 3.2-inch TN TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
Quality Assurance
This module has undergone comprehensive aging tests and multiple inspections to meet military-grade standards, ensuring stable and long-term operation in demanding environments.
