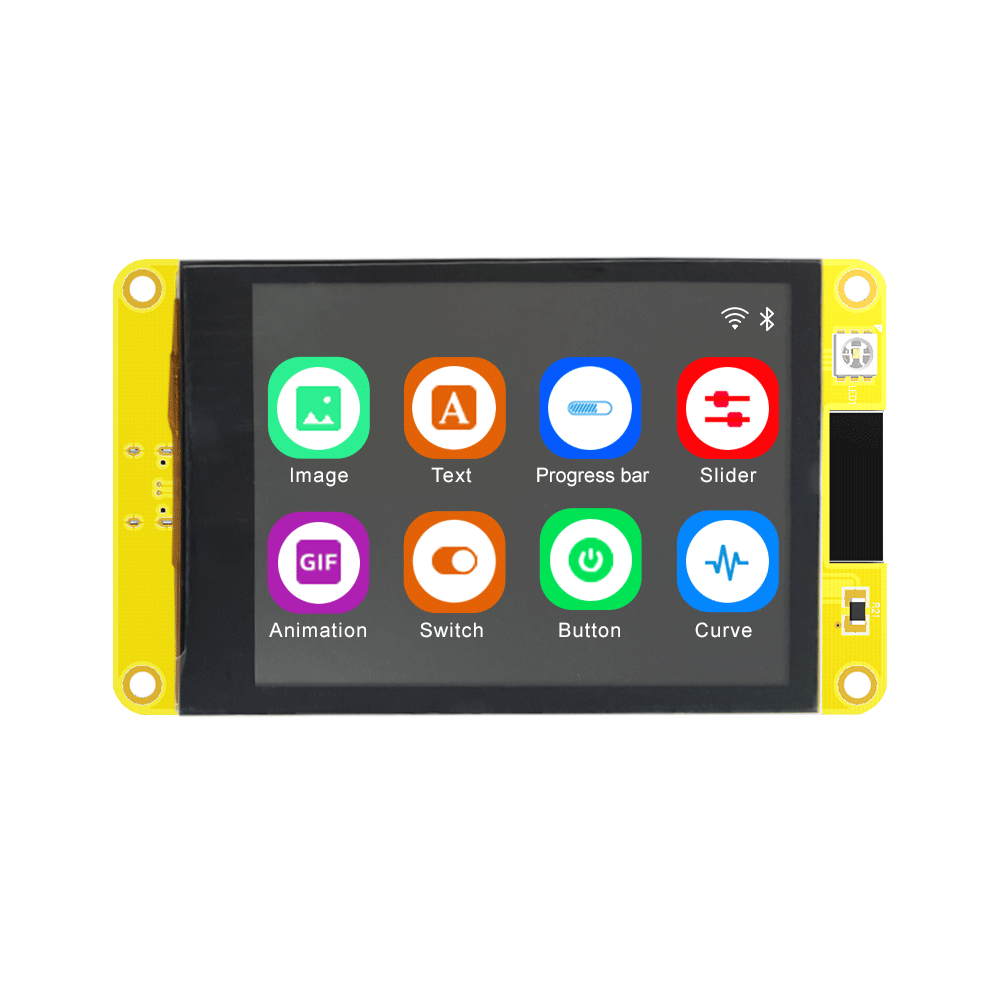

ESP32 3.2 Inch TFT LCD Display Module With ESP32 WROOM 32 240x320 Resistive Touch
ESP32 3.2 Inch TFT LCD Display Module With ESP32 WROOM 32 240x320 Resistive Touch
ESP32 3.2 Inch TFT LCD Display Module With ESP32 WROOM 32 240x320 Resistive Touch
ESP32 3.2 Inch TFT LCD Display Module With ESP32 WROOM 32 240x320 Resistive Touch
ESP32 3.2 Inch TFT LCD Display Module With ESP32 WROOM 32 240x320 Resistive Touch
ESP32 3.2 Inch TFT LCD Display Module With ESP32 WROOM 32 240x320 Resistive Touch
ESP32 3.2 Inch TFT LCD Display Module With ESP32 WROOM 32 240x320 Resistive Touch
ESP32 3.2 Inch TFT LCD Display Module With ESP32 WROOM 32 240x320 Resistive Touch
ESP32 3.2 Inch TFT LCD Display Module With ESP32 WROOM 32 240x320 Resistive Touch
ESP32 3.2 Inch TFT LCD Display Module With ESP32 WROOM 32 240x320 Resistive Touch
Specifications
Brand Name :
YZY
Model Number :
ESP32-2432S024
Place Of Origin :
China
Certification :
CE,RoHS
MOQ :
30 pcs
Price :
$2.99-11.99/Piece
Payment Terms :
T/T
Supply Ability :
Up to 5,000 pcs/day
Place of Origin :
Chian
Size :
3.2Inch
Resolution :
240 x 320 Pixels
Description

ESP32 3.2 Inch TFT LCD Display Module With ESP32 WROOM 32 240x320 Resistive Touch

Product Description:


This ESP32 TFT LCD display module integrates an ESP32-WROOM-32 dual-core MCU as the main controller, featuring built-in WiFi and Bluetooth connectivity. The module is equipped with a 3.2 inch color TFT LCD with 240×320 resolution and resistive touch, supporting 16-bit RGB 65K color display for rich and clear visuals.


Designed as an all-in-one development solution, the module includes an LCD backlight control circuit, touch control circuit, speaker driver circuit, photosensitive circuit, and RGB LED control circuit. It also provides a TF card slot for storage expansion, serial interface, DHT11 temperature and humidity sensor interface, and a reserved 10-pin expansion interface, making it suitable for various IoT and HMI applications.


The ESP32 LCD module supports development in Arduino IDE, ESP-IDF, MicroPython, and Mixly. Sample programs are preloaded at the factory, enabling plug-and-play operation and one-click program downloading. Manufactured with military-grade process standards, the module ensures long-term stable operation and supports lithium battery charging and discharging simultaneously, making it ideal for rapid prototyping, education, industrial control, and smart device development.

ESP32 3.2 Inch TFT LCD Display Module With ESP32 WROOM 32 240x320 Resistive Touch

Technical Parameters:

Visual Angle IPS
Effective Display Area 48.96 x 36.72 (mm)
Resolution 240 x 320 Pixels
Supplier Type Factory
Operating Voltage 5V
Development Support Arduino IDE, ESP-IDF
External Dimension 93.7 x 55.0 mm
